Zone20 H | 10Description of the System
2 Description of the System
2.1 System Components
General description The Zone20 H is a laser tool for general construction and levelling applications such as
• Setting forms
• Checking grades
• Controlling depths for excavations
If set up within the self-levelling range, the Zone20 H automatically levels to create an accurate horizontal
plane of laser light.
Once the Zone20 H has levelled, the head will start rotating and the Zone20 H is ready for use.
30 seconds after the Zone20 H has completed the levelling, the H.I. Alert system becomes active and
protects the Zone20 H against changes in elevation caused by movement of the tripod to ensure accurate
work.
Available system
components
The delivered components depend on the package ordered.
2.2 Zone20 H Laser Components
Zone20 H laser compo-
nents

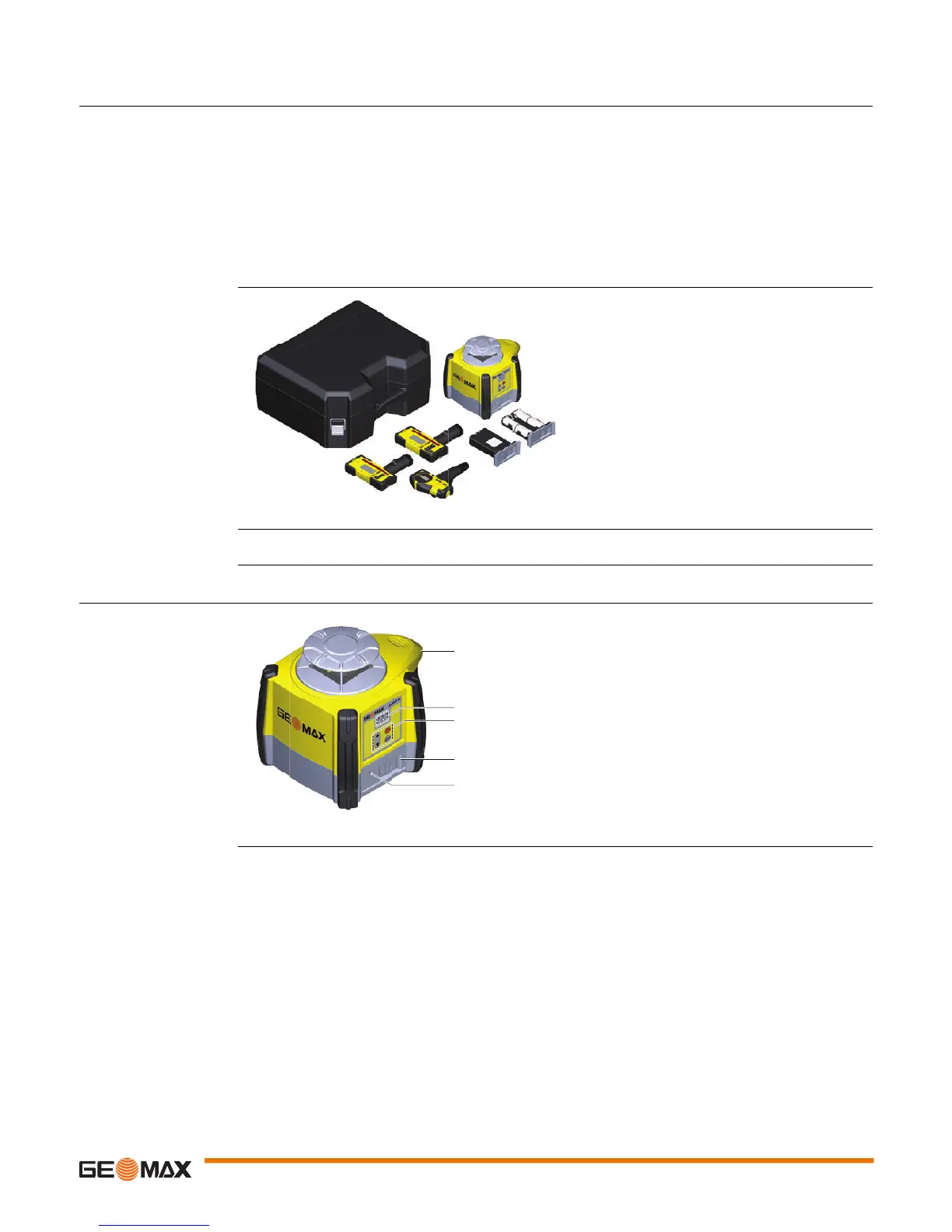

011247_001
ZBR35
Zone20 H
Li-Ion/Alkaline
ZDR105
ZPR105
a) Carry Handle
b) LED Indicators
c) Buttons
d) Battery compartment
e) Charge LED (for Li-Ion battery pack)
011248_001
a
b
c
d
e
