3 Operation

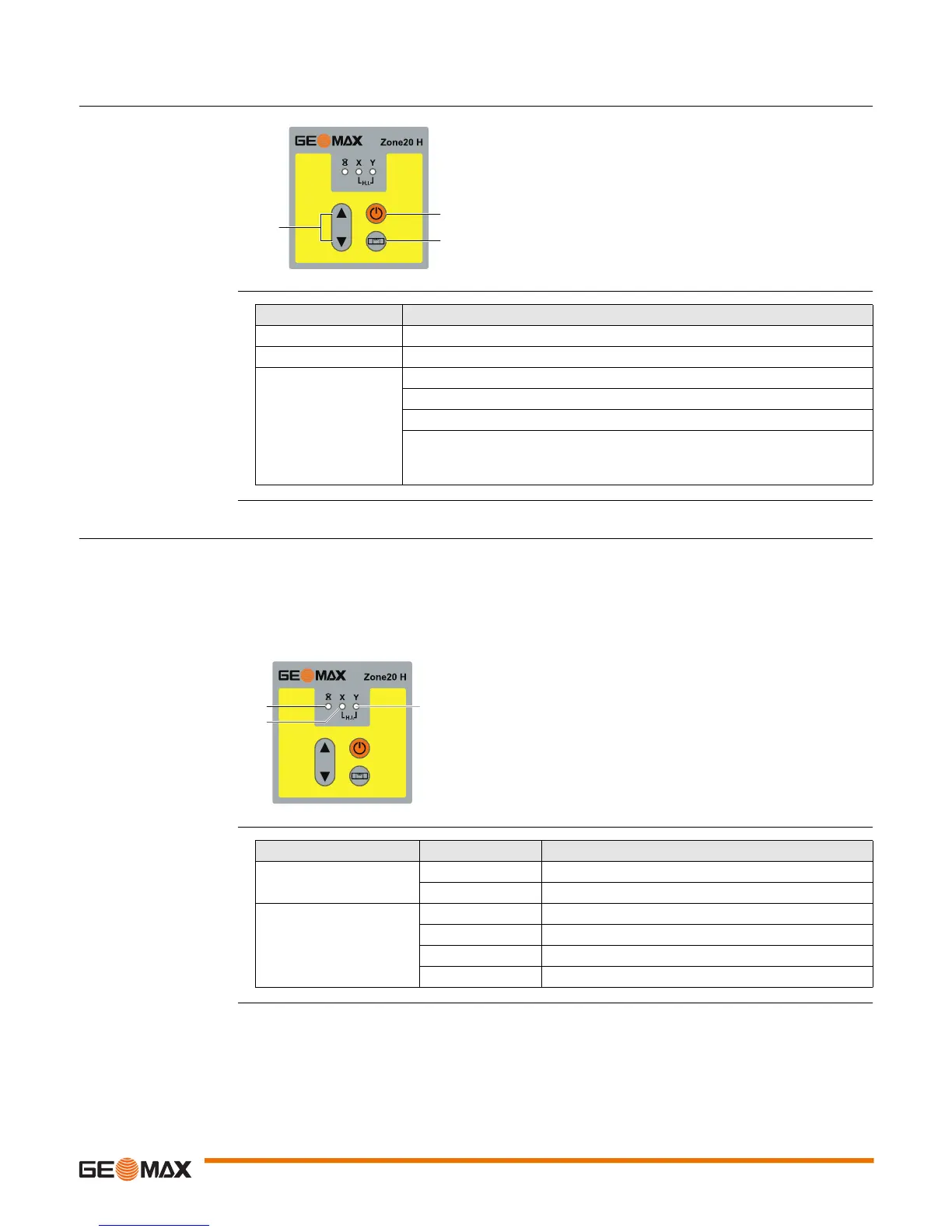

3.1 Buttons
Buttons
Description of the
Buttons
3.2 LED Indicators
Main Functions Description
The LED Indicators have three main functions:
• To indicate the level status of the axes.
• To indicate the battery status.
• To indicate an H.I. Alert condition.
Diagram of the LED Indicators
Description of the LEDs
a) Up and Down Arrow buttons
b) Power button
c) Automatic/Manual Mode button
011251_001
a
b
c
Button Function
Up and Down Arrow Press to enter a slope for an axis in Manual Mode.
Power Press to turn on or off the Zone20 H.
Automatic/
Manual Mode
Press once to change the X-axis to Manual Mode with Y-axis self-levelling.
Press again to change the Y-axis to Manual Mode with X-axis self-levelling.
Press again to change both axes to Manual Mode with no self-levelling.
Press again to change back to Full Automatic Mode.

Note the changes in the LED indicators in the Manual Modes. The red
LED indicates that the corresponding axis is in Manual Mode.
a) Low Battery Indicator LED
b) X-axis Indicator LED
c) Y-axis Indicator LED
011252 001
a
b
c
IF the is/are THEN
Low Battery Indicator LED
(Li-Ion & alkaline)
off the battery is okay.
on the battery is getting low.
X-axis and Y-axis Indicator
LEDs
green the axis is level.
flashing green the axis is levelling.
red the axis is in Manual Mode.
both flashing red an H.I. Alert is indicated.
