GeoMax ZONE20 H User Manual

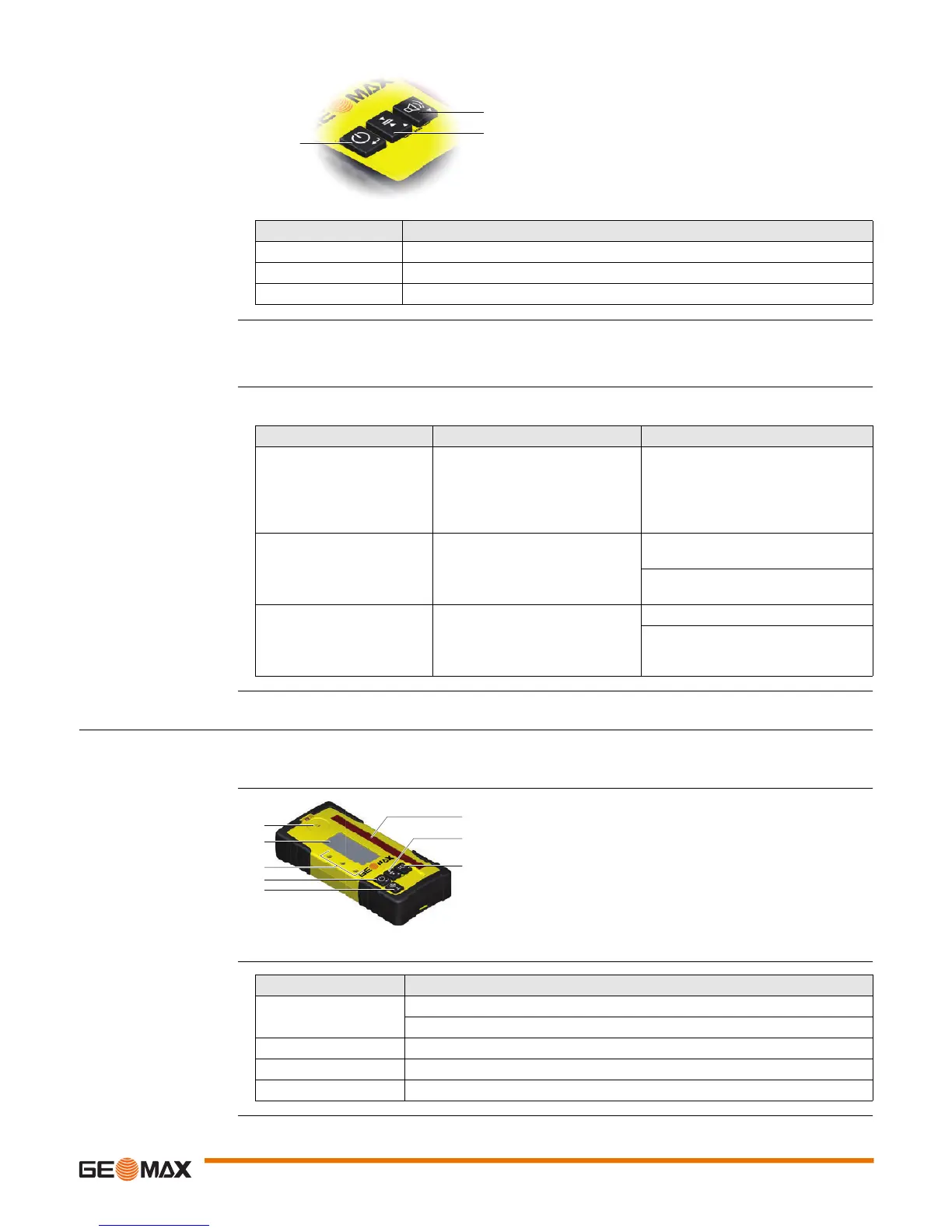

Receivers Zone20 H | 17
Description of the
Buttons
Menu access and navi-
gation
To access the menu of the ZRP105 Receiver, press the Bandwidth button and Audio button simultaneously.
• Use the Bandwidth button and Audio button to change parameters.
• Use the Power button to scroll through the menu.
Menu

MENU MODE - The blue LED will blink slowly indicating menu mode.
4.3 ZRD105, Digital Receiver
The ZRD105 Digital Receiver provides you with basic position information by using an arrow display plus
digital readout.
Instrument components
Description of the
Buttons
a) Power
b) Audio
c) Bandwidth
Button Function
Power Press once to turn on the Receiver.
Audio Press to change the audio output.
Bandwidth Press to change detection bandwidth.
011195_001
a
b
c
Menu Function Indication
LED Changes the brightness of the LED
indicators.
Red and green LEDs - High/Low/Off
Red and Green LEDs change
brightness to indicate this
parameter.
BAT Turns on or off the Laser low
battery indication on the receiver.
Green LED is on: Laser low battery
icon function is active.
The laser icon flashes to indi-
cate this parameter.
Red LED is on: Laser low battery icon
function is not active.
MEM Turns on or off the position
memory function.
Green LED is on: function is on.
The down arrow bars are
filling to indicate this param-
eter.
Red LED is on: function is off.
a) Speaker
b) LCD Digital Display
c) LED Display
d) Power button
e) Target button
f) Reception window
g) Bandwidth button
h) Audio button
011196_001
a
b
c
d
e
f
g
h
Button Function
Power Press once to turn on the receiver.
Press 1.5 seconds to turn off the receiver.
Target Press to capture the digital reading.
Bandwidth Press to change detection bandwidths.
Audio Press to change the audio output.
