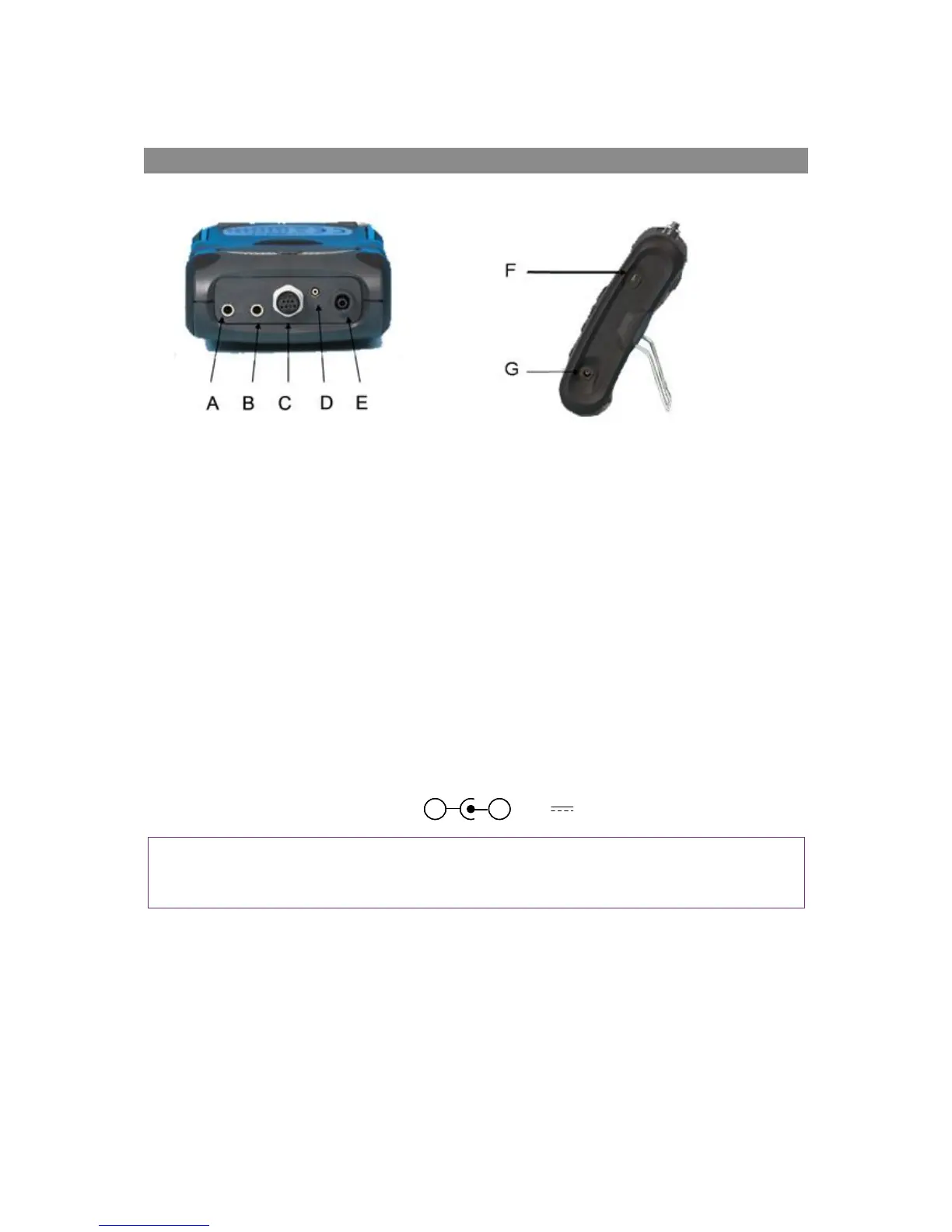

Instrument Connection Points
Top View:
Side View:
Key
Description
Function
A
Temperature 1
Temperature 1 connector measures temperature –
incubator and ambient temperatures.
B
Temperature 2
Temperature 2 connector measures temperature –
incubator and ambient temperatures
C
Humidity Probe (Optional)
Humidity probe attachment point
D
Gas Outlet
Gas outlet port used to exhaust the gas
E
Gas Inlet
Gas inlet point used to attach the sample tube and filter
in order to take the gas reading
F
USB Port
Used to connect the analyser to a PC via a USB cable to
download data
G
Charger Port
Used to attach the main charger to the analyser for
charging
Note: Temperature connectors are fitted with black plugs to prevent dust ingress, remove before
use. Grip connector cap and pull upwards to release. Refit when not in use.
Note: Depending on the configuration purchased, certain connectors may not be present.
5V ± 0.5V(max 1000mA)
+-
5V ± 0.5V(max 1000mA)
+- +-
