Calibration Equipment

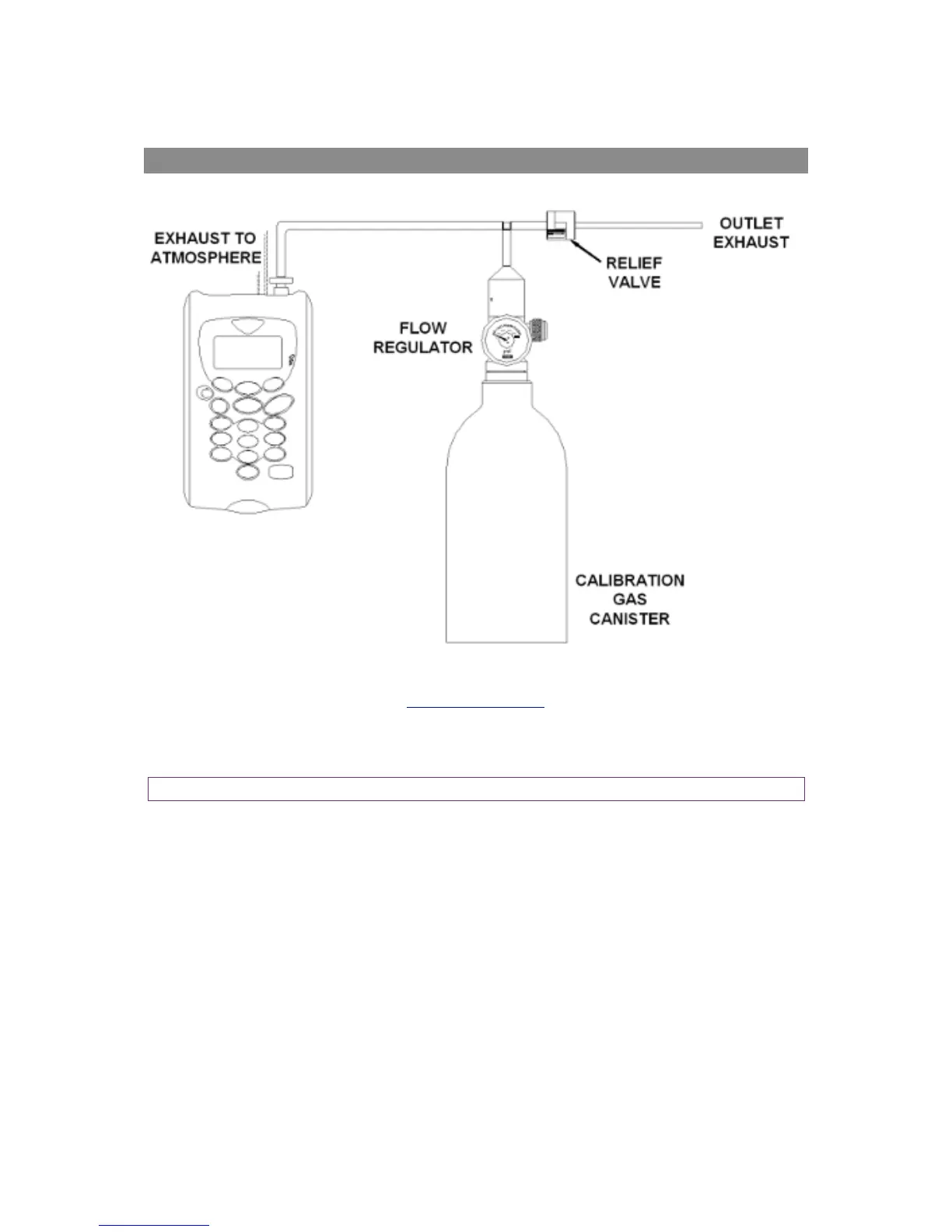

The diagram below displays the regulator and tubing equipment for user calibration:
Certified calibration gas in 58 litre gas canisters is supplied with the QED calibration kit.
Please refer to the QED website www.geotechuk.com for further information.
The regulator supplied with the calibration kit is recommended as flow and pressure rates are
factory set.
Note: Maximum input pressure 250mb, maximum flow 300ml.
