Chapter 2 Overview
2.1 Front and Left-side View
8
7
6
5
3
1
4
9
2

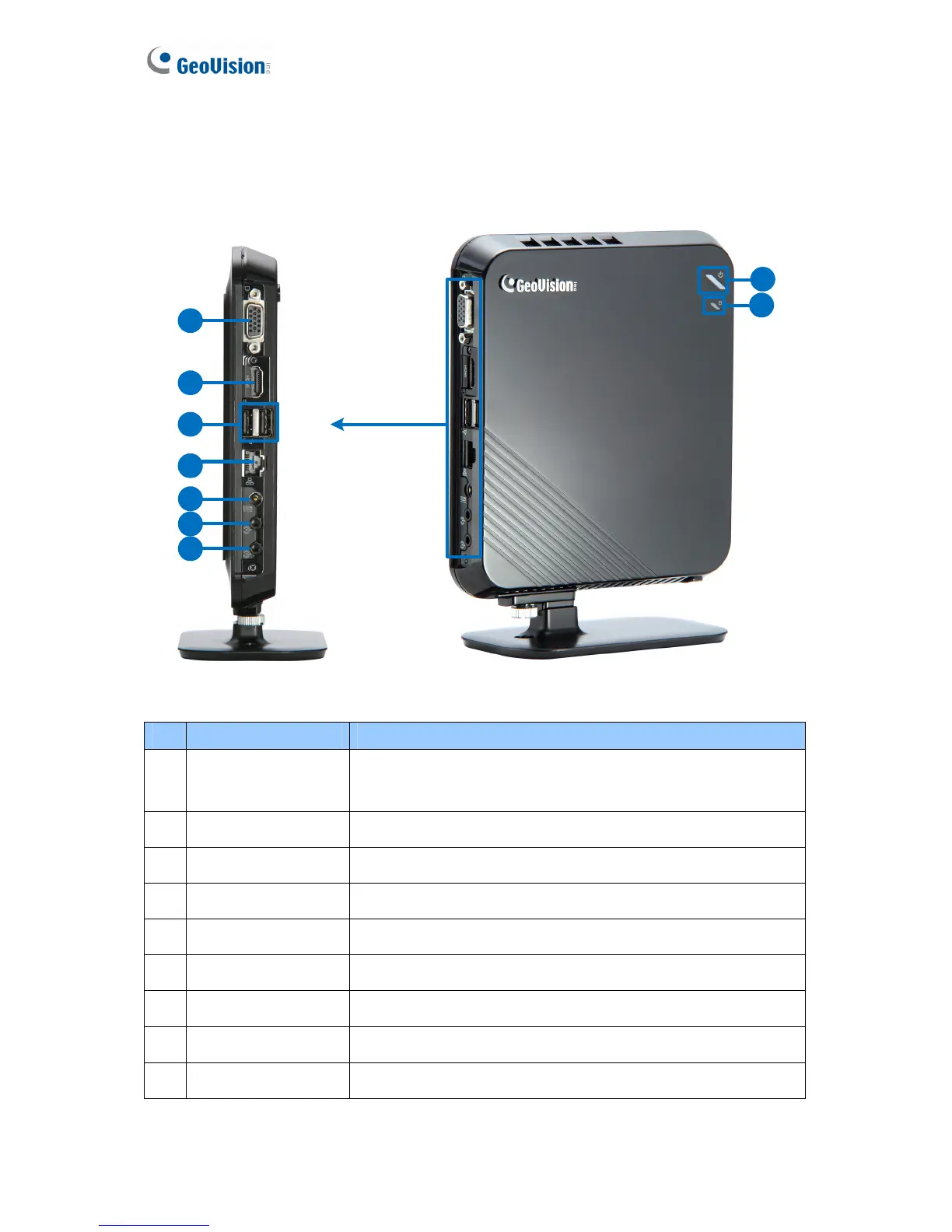

Figure 2-1
No. Name Description
1 Power Button & LED
Turns on the power of GV-NVR System Lite V2. The LED
shines when the power is on.
2 HDD Activity LED The LED shines when the HDD is writing or reading data.
3 VGA Output Connects the computer display.
4 HDMI Output Connects the HD TV.
5 USB 2.0 Port Connects USB devices.
6 Giga LAN Port Connects the switch or hub.
7 DC Power Input Connects power supply.
8 Audio output Connects speakers.
9 Microphone input Connects to a microphone.
