5. Equipment and accessories
Threaded mandrel and nosepieces: M6 in working position
Alternatively also M3, M4, M5, M8 and M10
Tools: Universal maintenance wrench MSU
Pin spanner Ø 42
Hexagon screw driver SW 4 mm
Hexagon ball-end driver SW 2.5 mm
Other: Assembly rod
   Hydraulicoilrellbottle
Operating manual with spare part list
6. Starting procedure
Before starting, carefully read and follow operating instructions!
6.1 Adjustment of mandrel length "X"
• Disconnect tool from compressed air to unlock the threaded mandrel.
• In case of standard blind rivets nuts «a» the protruding part of the threaded mandrel (2)
must be as long as the whole blind rivet nut (see drawing 1) and is hand adjusted by
turning the mandrel either in or out.
• In case of closed-end rivet nuts «b» use entire threaded depth.
• To lock the length adjustment connect tool to compressed air and the locking device is
engaged automatically.

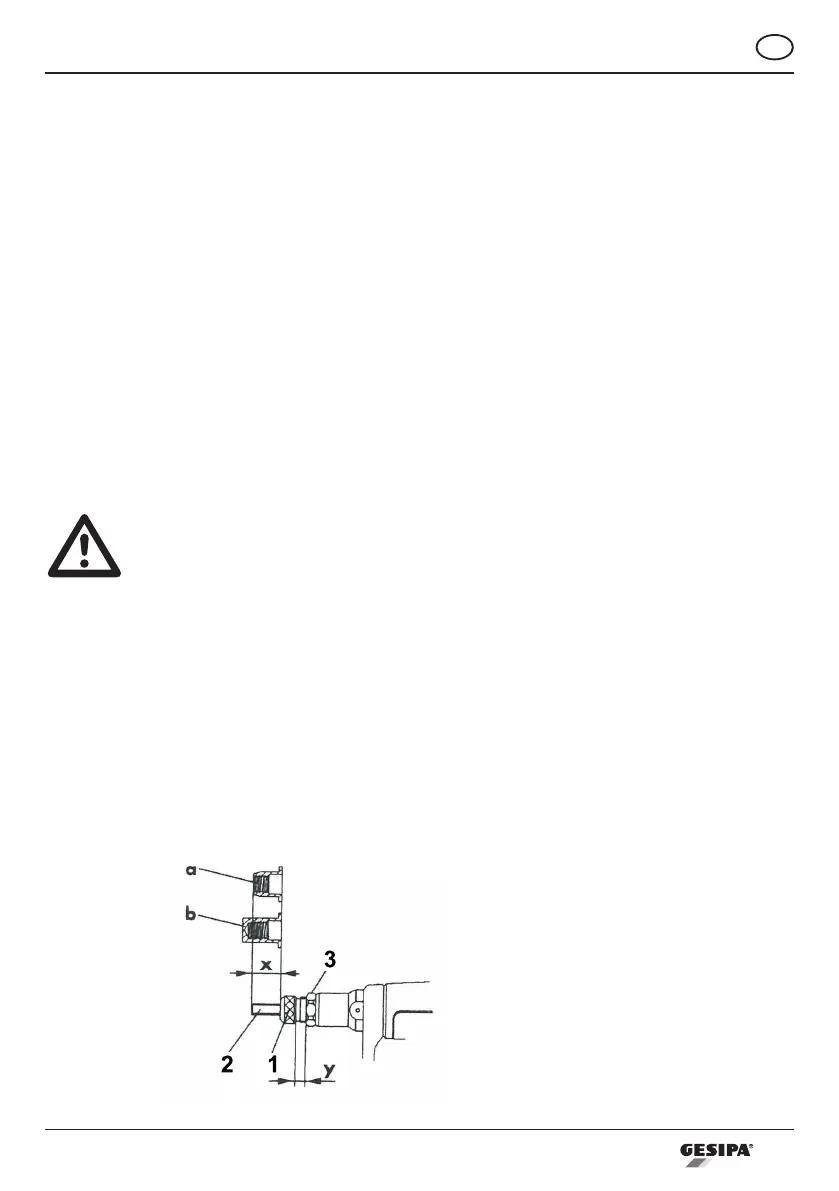

Drawing 1
2
3
1
