Maintenance and inspection procedures
Mechanical inspections
4
Lucea 50_100
01740 EN 01
23 / 44

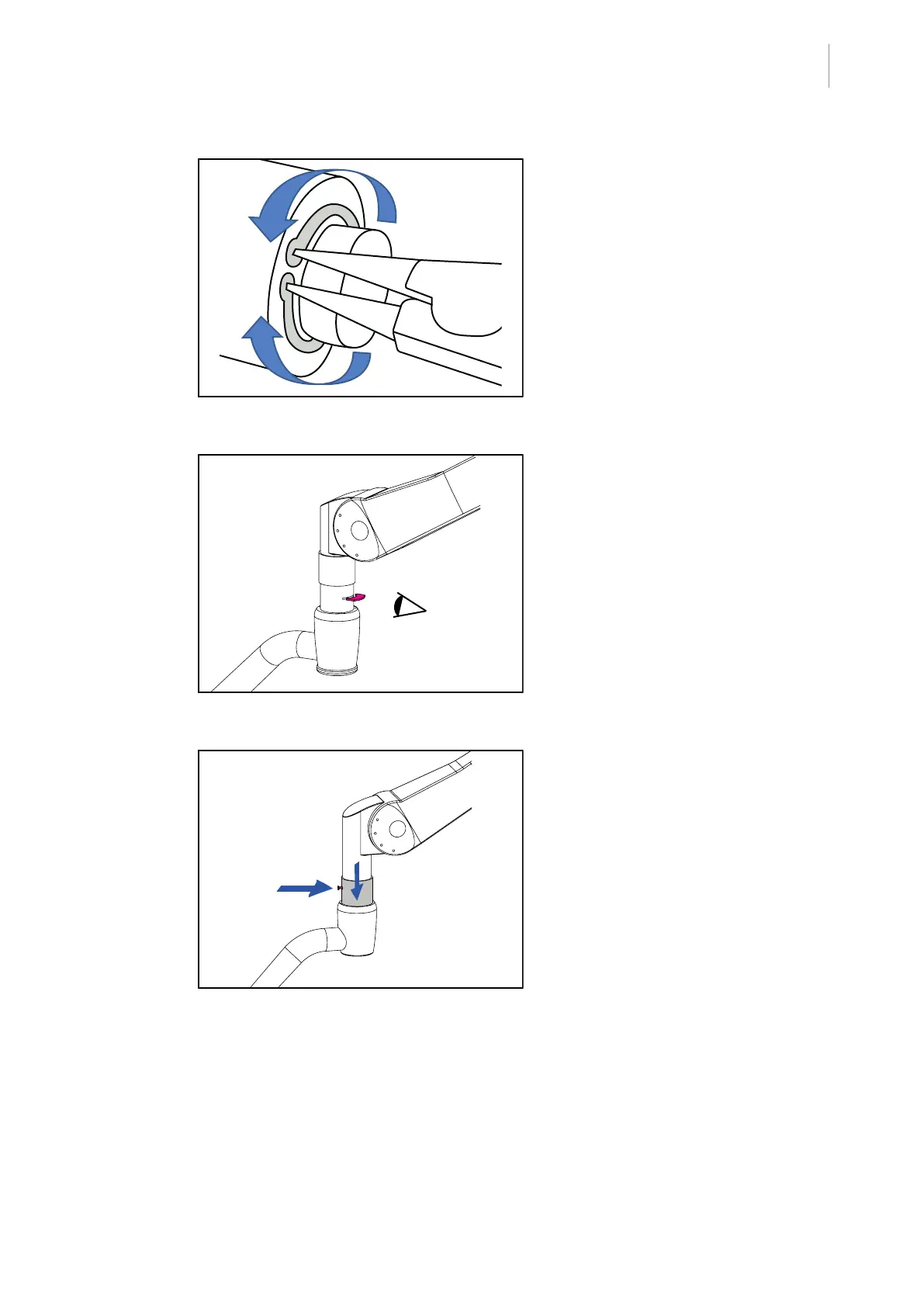

Fig.24: Checking the circlip
• Check that the circlip is correctly in place.
Fig.25: Checking the snap ring
• Make sure the snap ring is in place.
Fig.26: Sliding ring
• Lower the retaining ring onto the snap
ring.
• Refit the mounting screw.
