SERVICE MANUAL ProSeal Classic/Plus/Premium
25
Fix the smooth wheel with the original clamp and the circlip pliers. Make sure
the clamp is properly fixated. (Pic 38)

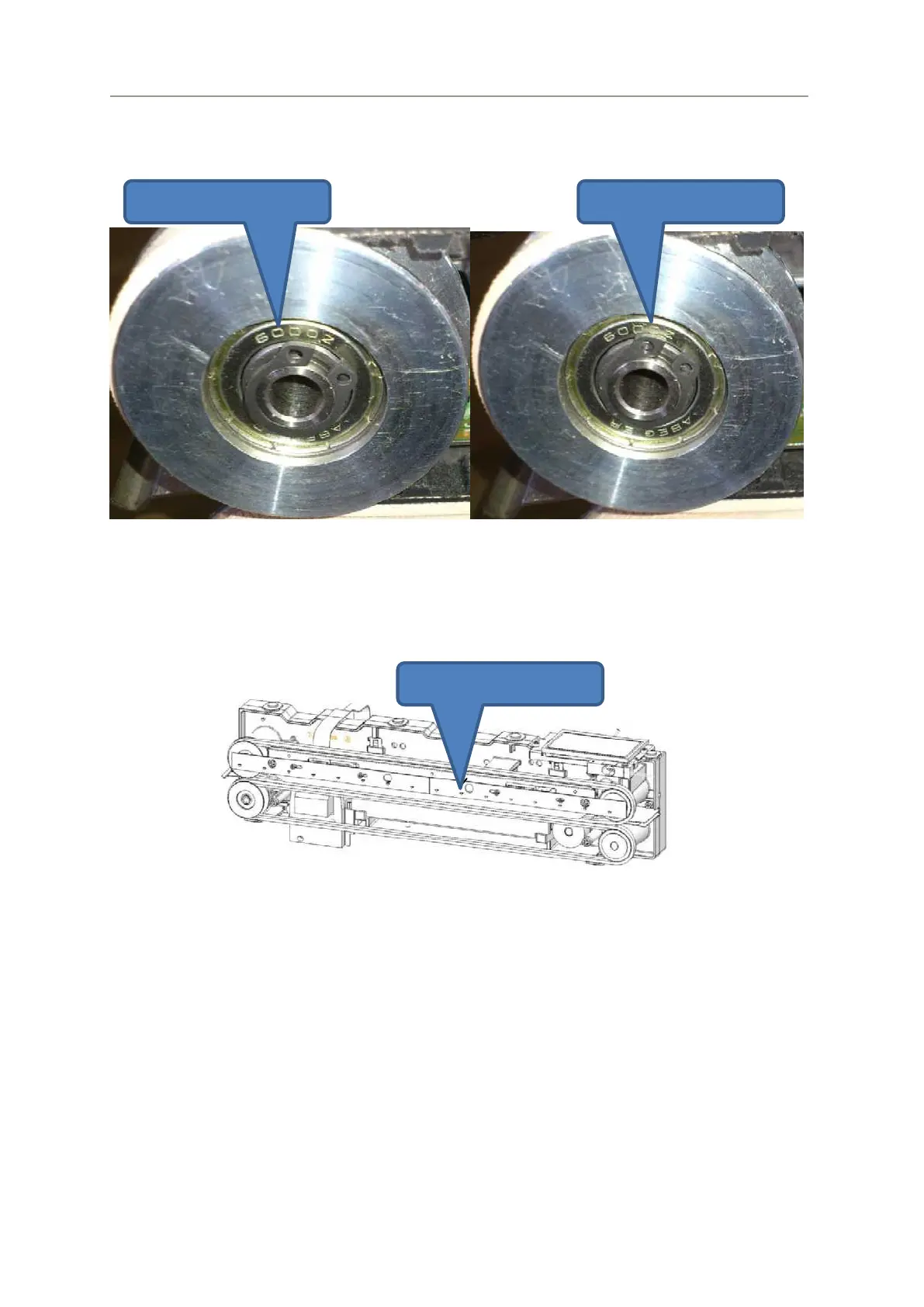

Pic 38
4.3.3 Belt guides
Mount the upper belt guide to the base frame, slide the guide over the inside
of the belt and press it down until the belt can move over the belt guide. Check
that the flat belt wheel and the toothed wheel run smoothly (Pic 39).
Pic 39
After fastening the upper belt guide, mount the lower belt guide in the same
way.
