JOINON WALLBOX I-CON BASIC recharging unit for electric vehicles
42

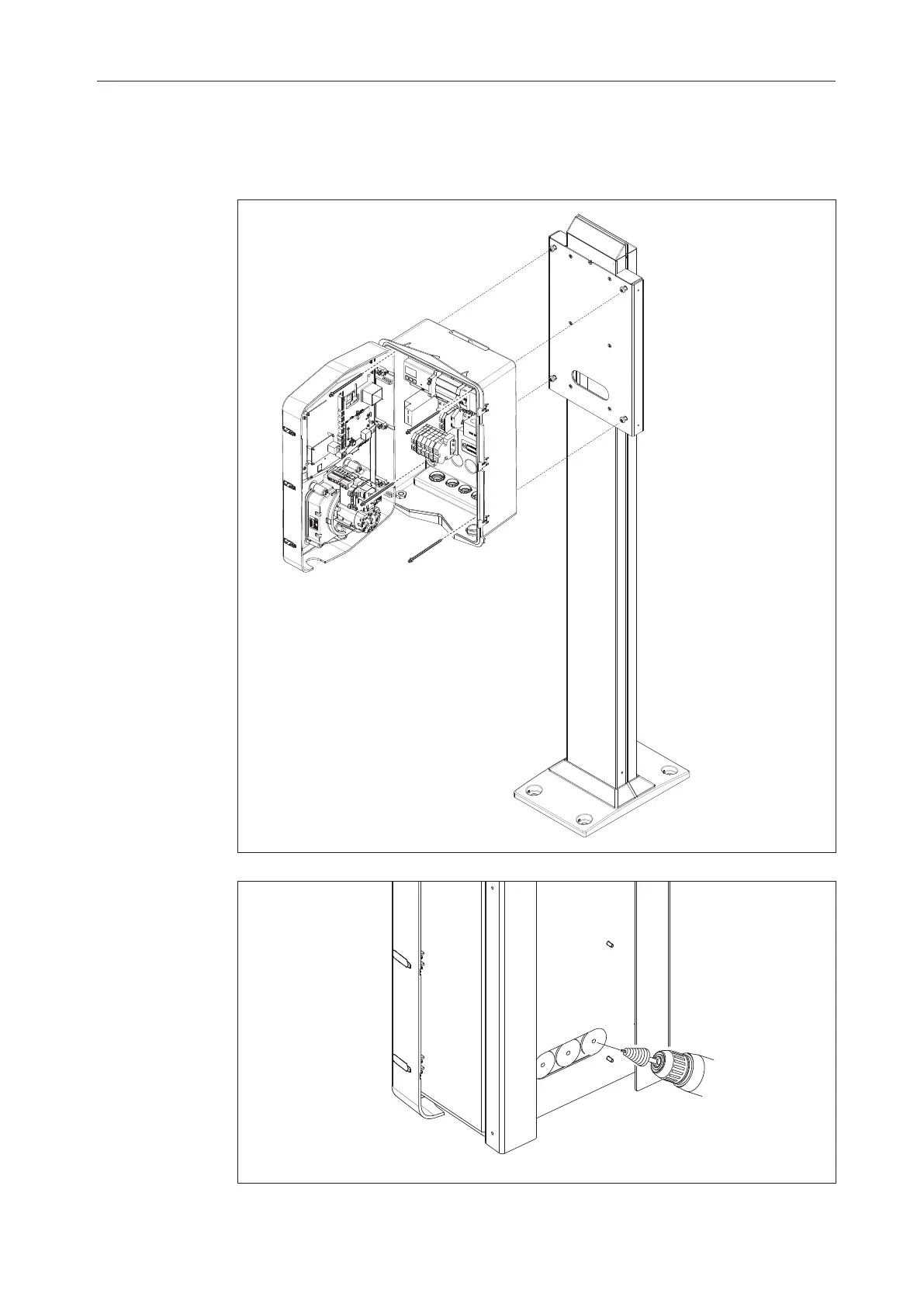

• Fixing to the support on the ground: after attaching the support to the ground, fix the column to the
plate on the support (using the protruding screw, already installed), then use screws to fix the WB
to the plate that includes the threaded rivets
Cable inlet on the back of the circled area. Make the necessary holes.
