GF PA11 - Wiring Diagrams

66
8. Wiring Diagrams
Attention
Please observe the following:
For the correct functioning of the actuator, the position
of the actuator must agree with the position of the valve.
Actuator open > Valve open
Actuator closed > Valve closed
When installing an actuator with a Georg Fischer ball
valve, it is important to note the position of the ball valve
spigot.

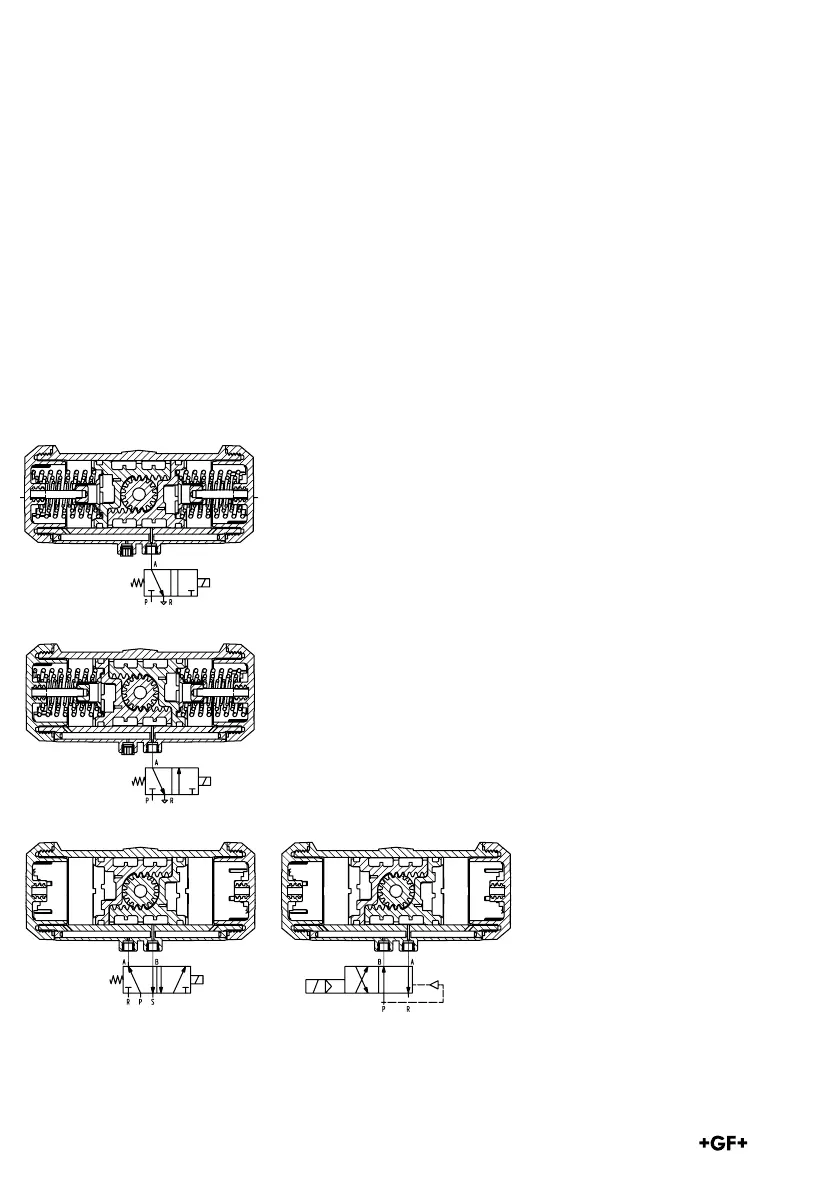

Fail-safe to close
(FC)
1 solenoid valve
3/2 way
de-energized closed
Fail-safe to open
(FO)
1 solenoid valve
3/2 way
de-energized closed
Double acting
(DA)
1 solenoid valve
5/2 way
(alternative 4/2 way)
5/2 way valve 4/2 way valve
