Options
Stroke limiter
The stroke limiter is mounted ex works and enables li-
miting the actuating angle up to 45° alternatively in the
closedoropendirectionfortheFCandFOfunctions.
For the DA function, limitation is only possible in the
open direction.

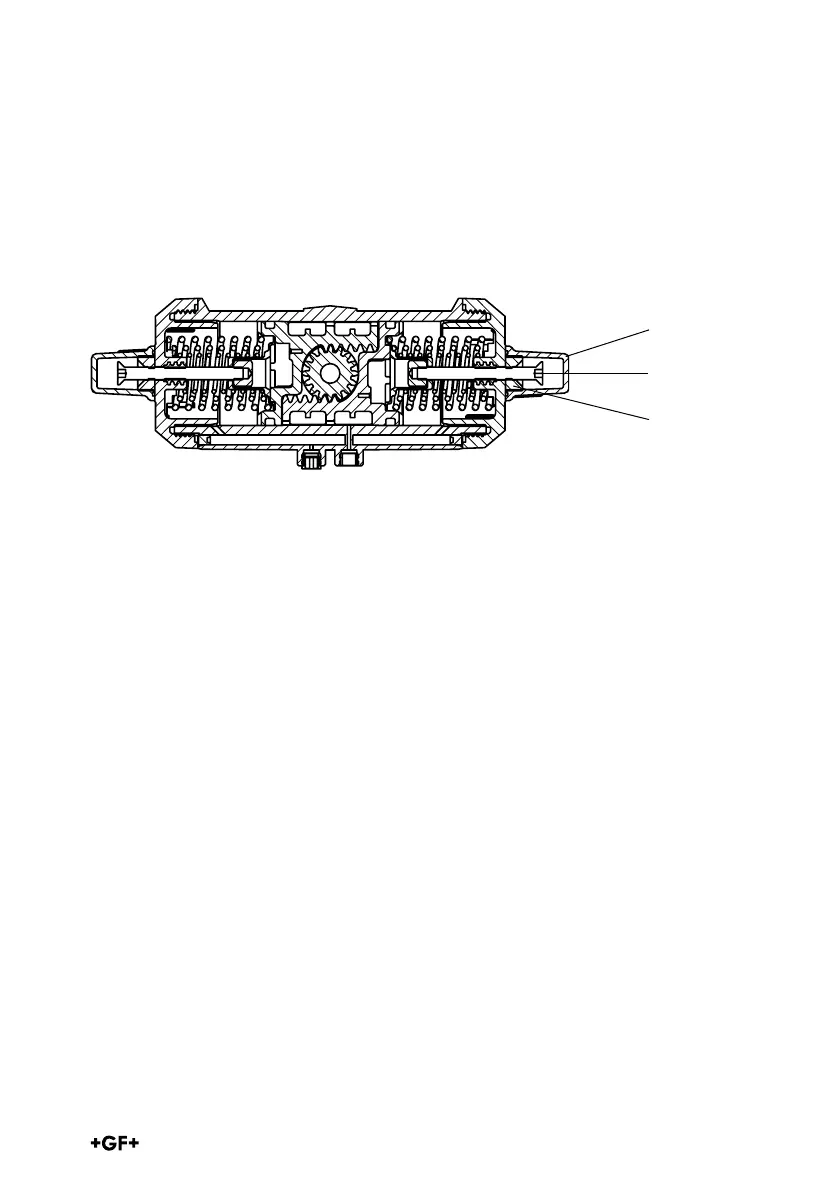

Covering cap
Adjustmentscrew
Safety nut
Setting the END Stops
Stroke limiter Close direction FC-Version
a) Make sure the springs are in the position of rest (no
compressed air)
b)Unscrewthetransparentcap
c) Drive the avtuator with compressed air in the open
position
d)Turntheadjustmenscrewinthecounterclockwise
direction until the desired position ist reached
e) Put the actuator in the closed position, check the
setting and if necessary repeat from step c)
f) Tighten the saftey nut
g) Assemble the transparent cap
Stroke limiter Open direction FC-Version (DA)
a) and b) same as above
c) Actuator in closed position
d)Turntheadjustmentcrewinclockwisedirection
until the desired position ist reached
e) Drive the actuator with compressed air in the open
position, check the setting and if necessary repeat
from step c)
f) and g) same as above
