SV200 R200
4/2007© by GLOBAL GARDEN PRODUCTS

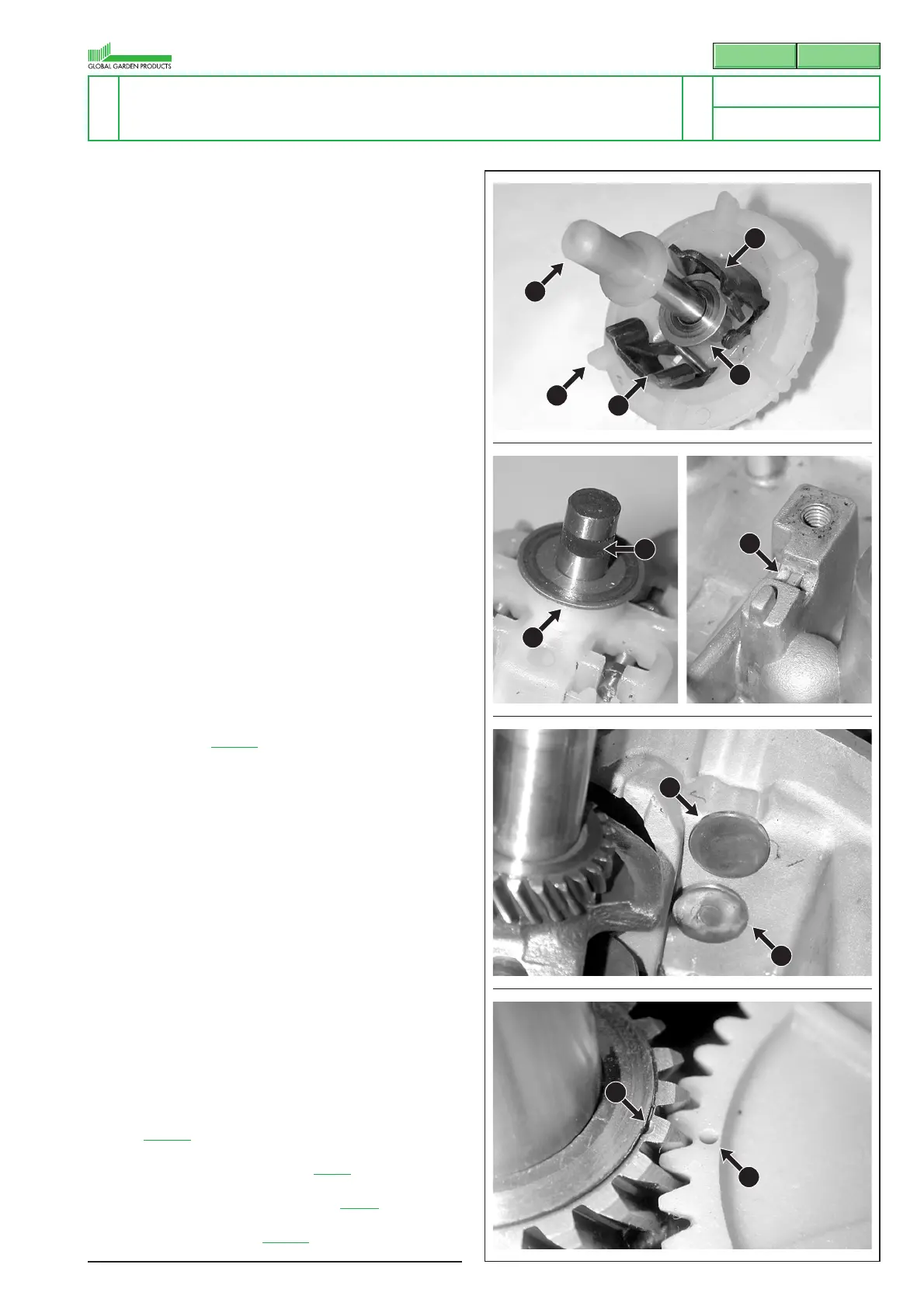

27 When assembling the new group, care must be
taken over the correct positioning of one
scraper washer (30) under the sliding pin (27)
and the other (31) on the opposite side.
28 Refit the governor to the pan, being careful to
insert the milling of the spindle (32) into the pro-
tuberance (33) of the support.
29 Before fitting the camshaft ensure that the two
tappets (34) are correctly housed in their seats.
30 When refitting the camshaft, maximum care
must be taken to match up the two references
(35) and (36) punched on the gears, so as to
ensure correct distribution phasing.
31 Reclose the cover and refit the engine to the
machine [
6.10.A].
C) Dismantling and checking the piston, piston
rings, connecting rod and engine shaft
NOTE
- These paragraphs describe all the oper-
ations for checking and overhauling the thermal
components of the engine; it is left to the oper-
ator to assess the advisability of performing all
the operations described or only part of them,
depending on the type of engine problems
encountered.
41 Remove the engine from the machine
[
6.10.A].
42 Dismantle the flywheel [
6.9.E
].
43 Remove the cylinder head [
6.9.C].
44 Open the cover [
6.10.A].
6.10.1
ENGINE BLOCK – Overhauling internal parts
3 / 7
SERVICE MANUAL
page
from
2007 to ••••
25
27
26
26
30
31
32
33
35
36
34
34
