Ghost Controls Ghost Pro Series - Mounting Front Mount and Estate Bracket; Install Front Mount and Estate Bracket; Mark and Drill Inner Hole

33
PULLTOOPEN
©Ghost Controls
®
2020

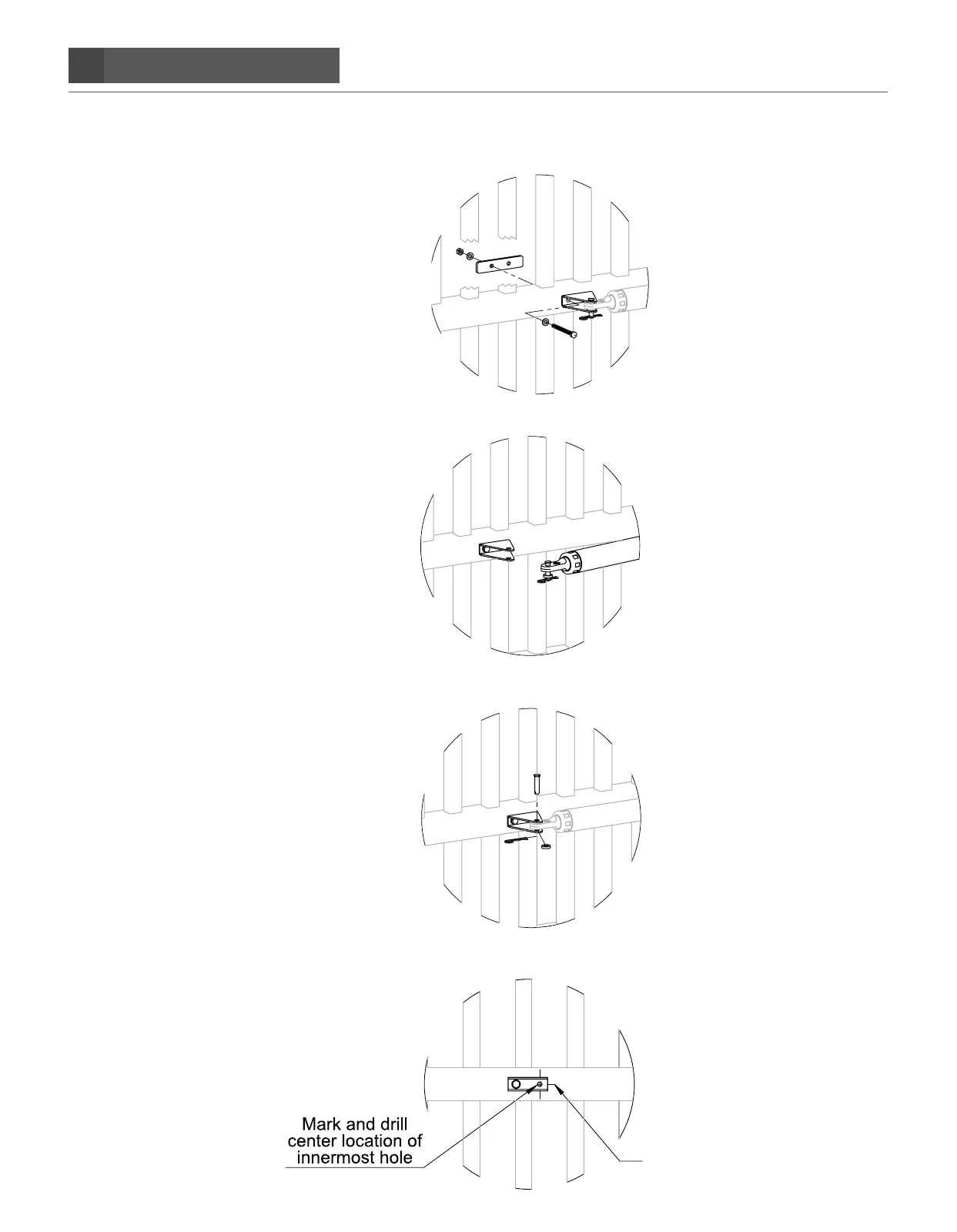

B. Install the front mount gate bracket and estate bracket on the gate by aligning the outermost hole of both
brackets and inserting (1) M8 x 65mm flat washer, and (1) M8 nylon locknut through both the estate and
front mount bracket, as show below. Tighten to secure the brackets to the gate. MAKE SURE GATE IS STILL
IN OPEN POSITION (arm fully retracted).
C. Disconnect operator from gate bracket and swing away from the gate.
D. Assemble clevis pin, front spacer and hair pin to operator to prevent loss.
E. Now you can mark and drill the inner most hole on the front mount bracket, shown below.
NOTE: It might be necessary to
remove the bracket to drill hole
CL
