Gigabyte GA-F2A85X-UP4 User Manual

Hardware Installation
- 14 -

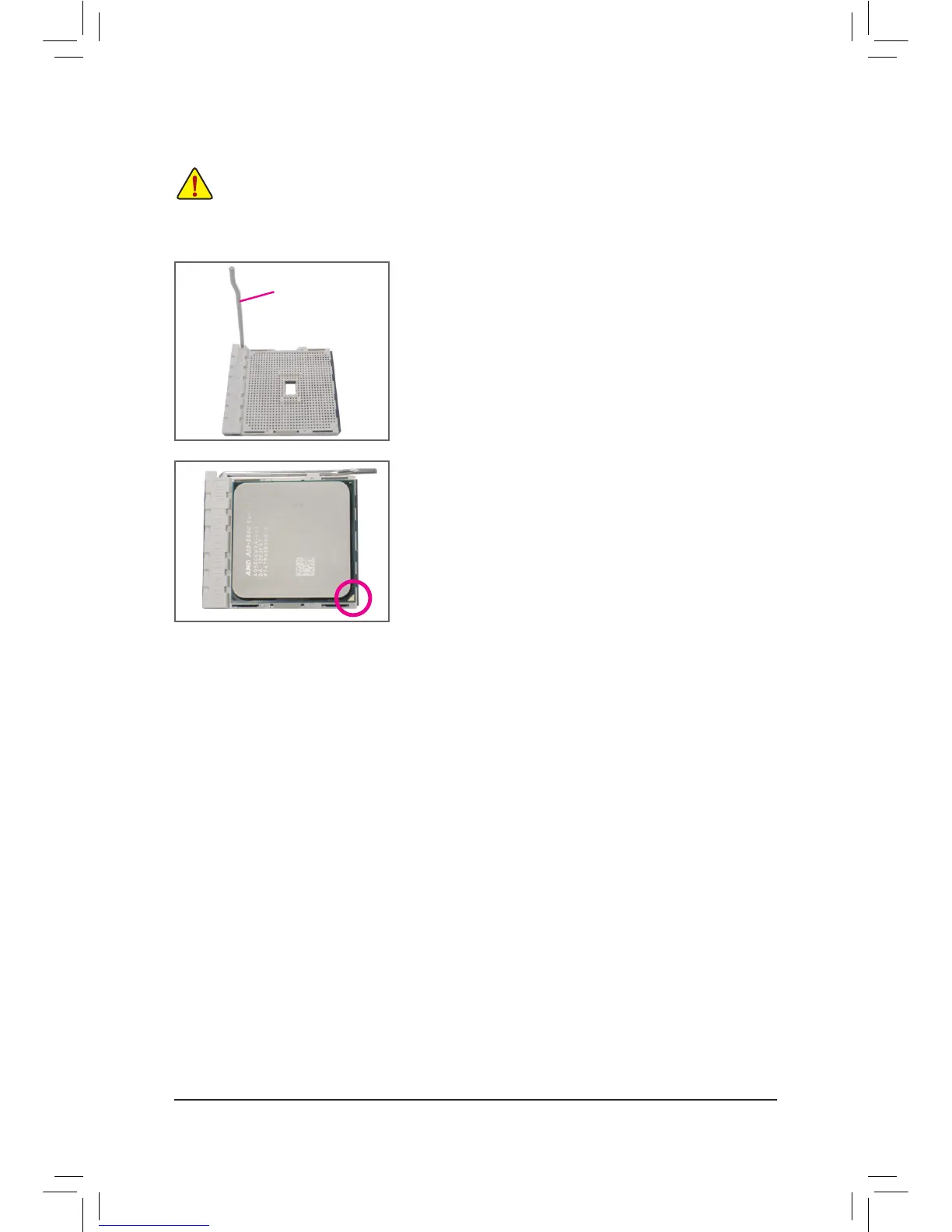

B. Follow the steps below to correctly install the APU into the motherboard APU socket.
• Before installing the APU, make sure to turn off the computer and unplug the power cord from the
power outlet to prevent damage to the APU.
• DonotforcetheAPUintotheAPUsocket.TheAPUcannottiniforientedincorrectly.Adjustthe
APU orientation if this occurs.
Step 1:
Completely lift up the APU socket locking lever.
Step 2:
AligntheAPUpinone(smalltrianglemarking)withthetrianglemark
on the APU socket and gently insert the APU into the socket. Make
surethattheAPUpinstperfectlyintotheirholes.
OncetheAPUispositionedintoitssocket,placeonengerdownon
the middle of the APU, lowering the locking lever and latching it into
the fully locked position.
APU Socket
Locking Lever

Gigabyte GA-F2A85X-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
Power fan connector	Yes
Number of SATA III connectors	7
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	2
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI

Weight and Dimensions

Depth	244 mm
Width	305 mm
