Gigabyte GA-F2A85X-UP4 User Manual

- 49 -
BIOS Setup

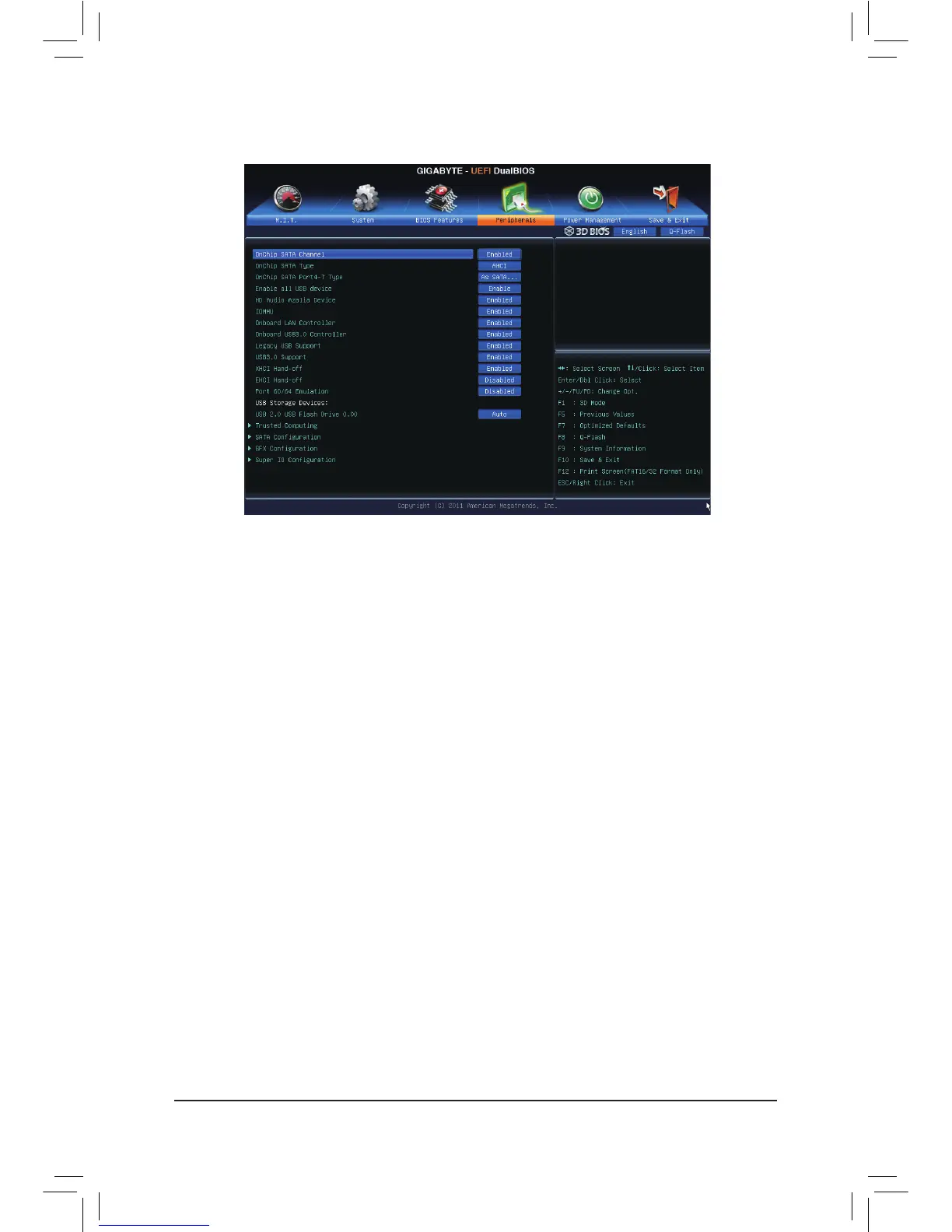

2-6 Peripherals
& OnChip SATA Channel
 EnablesordisablestheintegratedSATAcontrollers.(Default:Enabled)
& OnChip SATA Type
 EnablesordisablesRAIDfortheSATAcontrollersintegratedintheAMDChipsetorcongurestheSATA
controllers to AHCI mode.
IDE   CongurestheSATAcontrollertoIDEmode.
RAID Enables RAID for the SATA controller.
AHCI   CongurestheSATAcontrollerstoAHCImode.AdvancedHostControllerInterface
(AHCI)isaninterfacespecicationthatallowsthestoragedrivertoenableadvanced
SerialATAfeaturessuchasNativeCommandQueuingandhotplug.(Default)
& RAID Type
 EnablesordisablesRAID5fortheSATAcontrollersintegratedintheAMDChipset.Thisoptioniscongurable
only when OnChip SATA Type is set to RAID.(Default:RAID)
& OnChip SATA Port4-7 Type (SATA3 4~SATA3 6 and eSATA connectors)
 ThisoptioniscongurableonlywhenOnChip SATA Type is set to RAID or AHCI.Congurestheoperating
modeoftheintegratedSATA34~SATA36andeSATAconnectors.
AsSATAType ThemodedependsontheOnChipSATATypesettings.(Default)
IDE   DisablesRAIDfortheSATAcontrollerandcongurestheSATAcontrollertoIDEmode.
& Enable all USB device
 EnablesordisablestheintegratedUSB2.0/1.1controller.(Default:Enabled)
& HD Audio Azalia Device
 Enablesordisablestheonboardaudiofunction.(Default:Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to
Disabled.
& IOMMU
 EnablesordisablesAMDIOMMUsupport.(Default:Enabled)

Gigabyte GA-F2A85X-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
Power fan connector	Yes
Number of SATA III connectors	7
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	2
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI

Weight and Dimensions

Depth	244 mm
Width	305 mm
