Gigabyte GA-F2A85X-UP4 User Manual

- 83 -
Appendix
(Note) EntertheDigital Output(Optical)screen tocongurefurther settingsifyouusethe S/PDIFOut
connector(s)onthebackpanelfordigitalaudiooutputorentertheDigital Output screen if you use
theinternalS/PDIFOutconnector(SPDIF_O)fordigitalaudiooutput.
5-2-2 ConguringS/PDIFOut
The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality.
1.ConnectingaS/PDIFOutCable:

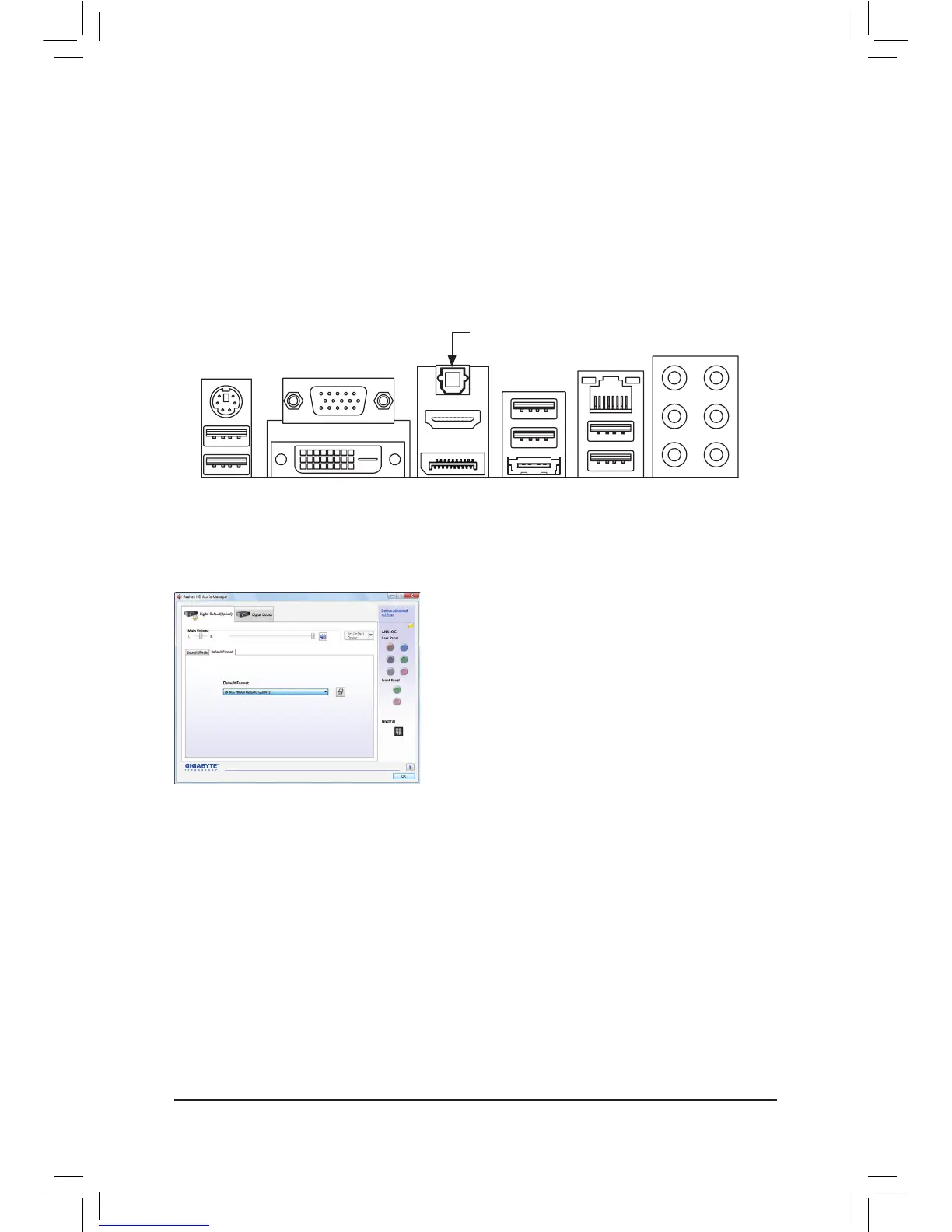

Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external
decoder for transmitting the S/PDIF digital audio signals.
2.ConguringS/PDIFOut:
On the Digital Output(Optical) screen
(Note)
, click the Default Format tab and then select the sample rate and
bit depth. Click OK to complete.
Connects to a S/PDIF optical cable

Gigabyte GA-F2A85X-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
Power fan connector	Yes
Number of SATA III connectors	7
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	2
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI

Weight and Dimensions

Depth	244 mm
Width	305 mm
