Gigabyte GA-F2A85X-UP4 User Manual

- 27 -
Hardware Installation

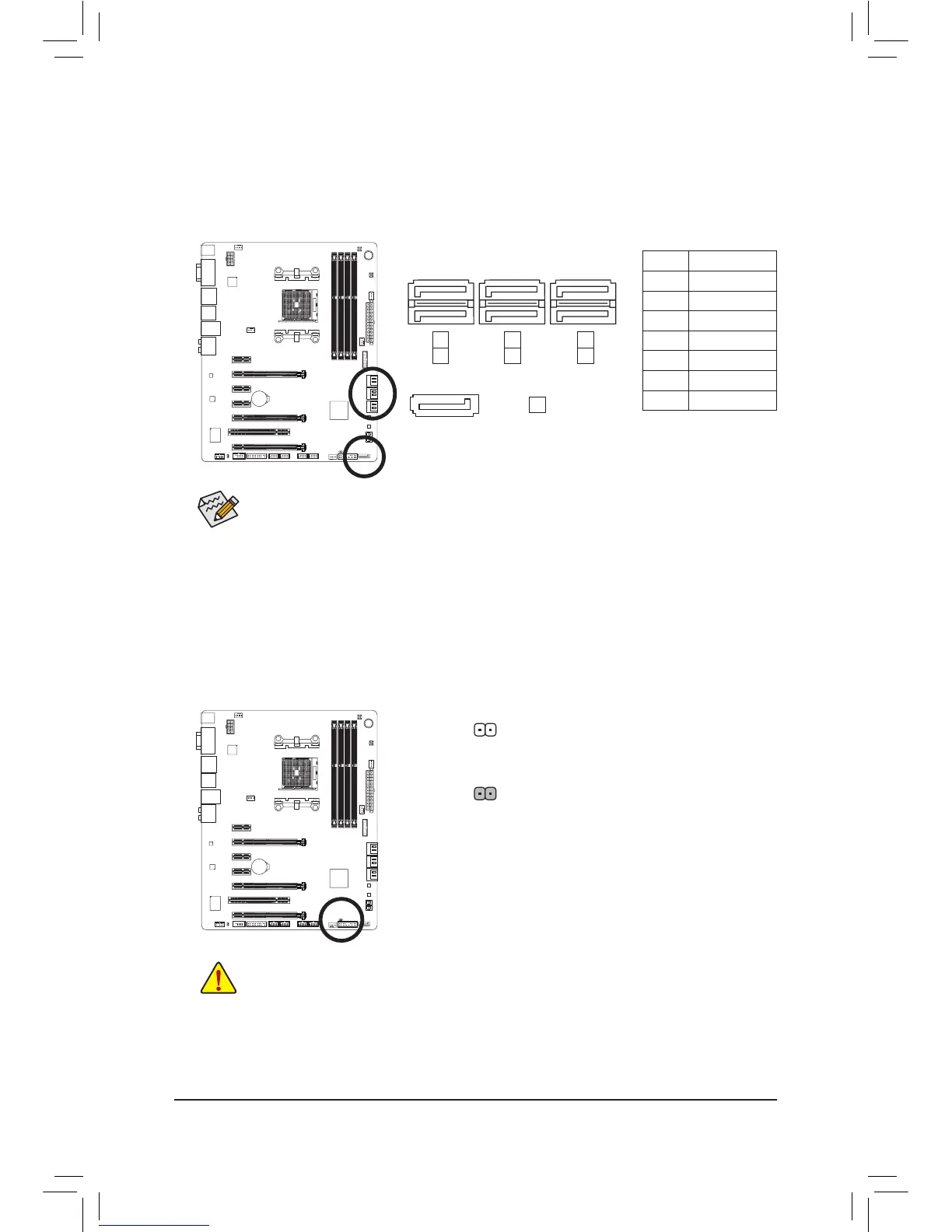

6) SATA3 0/1/2/3/4/5/6 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The AMD A85X Chipset supports
RAID0,RAID1,RAID5,RAID10,andJBOD.RefertoChapter5,"ConguringSATAHardDrive(s),"for
instructionsonconguringaRAIDarray.
• ARAID0orRAID1congurationrequiresatleasttwoharddrives.Ifmorethantwoharddrives
are to be used, the total number of hard drives must be an even number.
• ARAID5congurationrequiresatleastthreeharddrives.(Thetotalnumberofharddrivesdoes
nothavetobeanevennumber.)
• ARAID10congurationrequiresfourharddrives.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
1
1
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
7
1 7
7
2
1
0
4
3
6
5
SATA3
SATA3
DEBUG
PORT
G.QBOFM
7) CLR_CMOS (Clear CMOS Jumper)
 UsethisjumpertocleartheCMOSvalues(e.g.dateinformationandBIOScongurations)andresetthe
CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch
the two pins for a few seconds.
• Always turn off your computer and unplug the power cord from the power outlet before clearing
the CMOS values.
• Aftersystemrestart,gotoBIOSSetuptoloadfactorydefaults(selectLoadOptimizedDefaults)or
manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).
Open: Normal
Short: Clear CMOS Values

Gigabyte GA-F2A85X-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
Power fan connector	Yes
Number of SATA III connectors	7
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	2
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI

Weight and Dimensions

Depth	244 mm
Width	305 mm
