- 35 -
BIOS Setup
B. The Main Menu of the BIOS Setup Program
OnthemainmenuoftheBIOSSetupprogram,pressarrowkeystomoveamongtheitemsandpress<Enter>
to accept or enter a sub-menu. Or you can use your mouse to select the item you want.
(SampleBIOSVersion:D7)
Setup Menus
Function Keys
Help
Enter Q-Flash
Select Default
Language
CongurationItems
Current Settings
2-2 The Main Menu

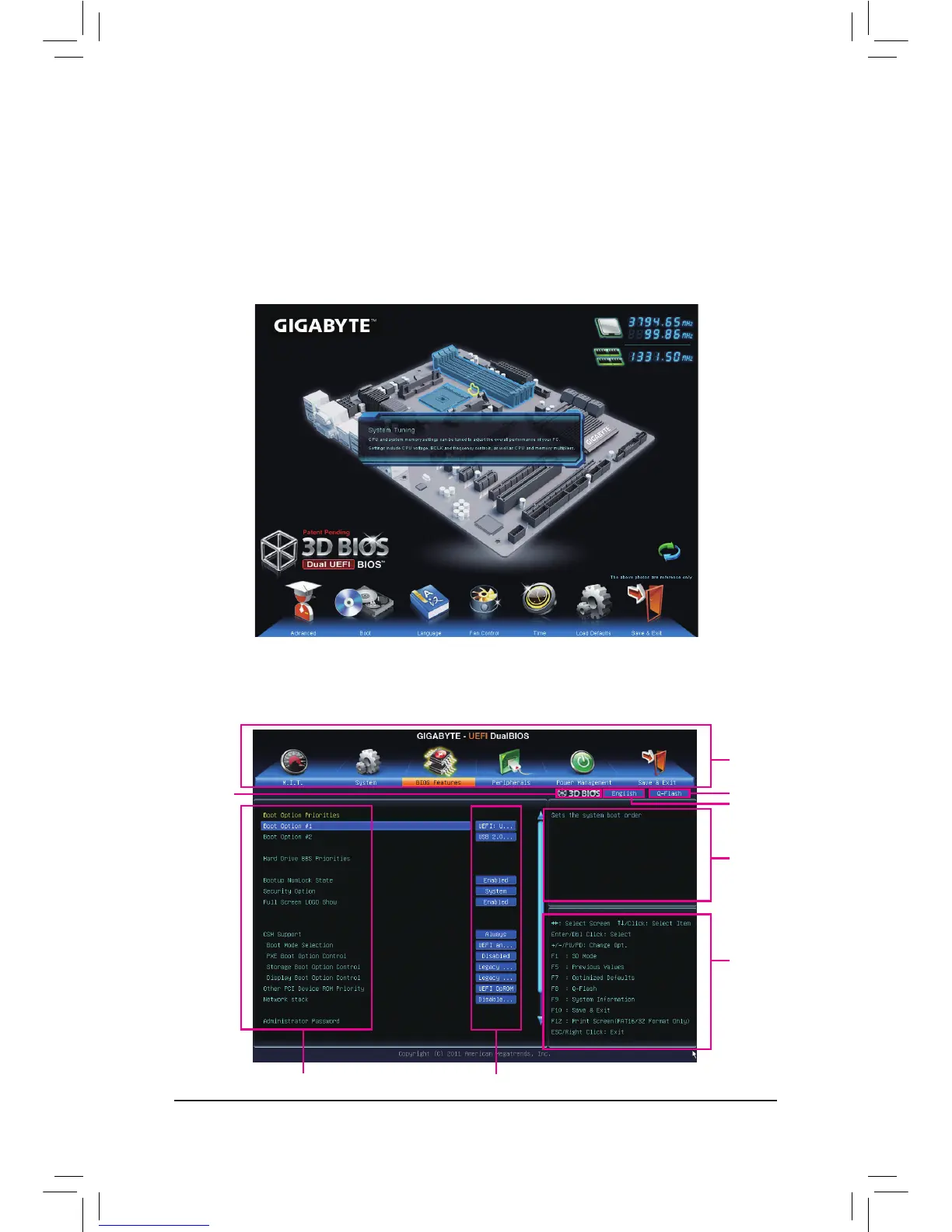

A. The 3D BIOS Screen (Default)
On GIGABYTE's uniquely designed 3D BIOS screen, you can use your mouse to move through the motherboard
imageandclicktoenterthefunctionmenuineachareaforquickconguration.Forexample,passyourmouse
arrow over the CPU and memory sockets and enter the System Tuning menuto congure CPU/memory
frequency,memorytimings,andvoltagesettings. For more detailed conguration items, you can click the
functionmenuiconsatthebottomofthescreenorpress<F1>toswitchtothemainmenuoftheBIOSSetup
program.(Ifamouseisnotconnected,the3DBIOSscreenwillautomaticallyswitchtothemainmenuofthe
BIOSSetupProgram.)
