Gigabyte GA-Z87X-OC - Page 47

- 47 -
BIOS Setup

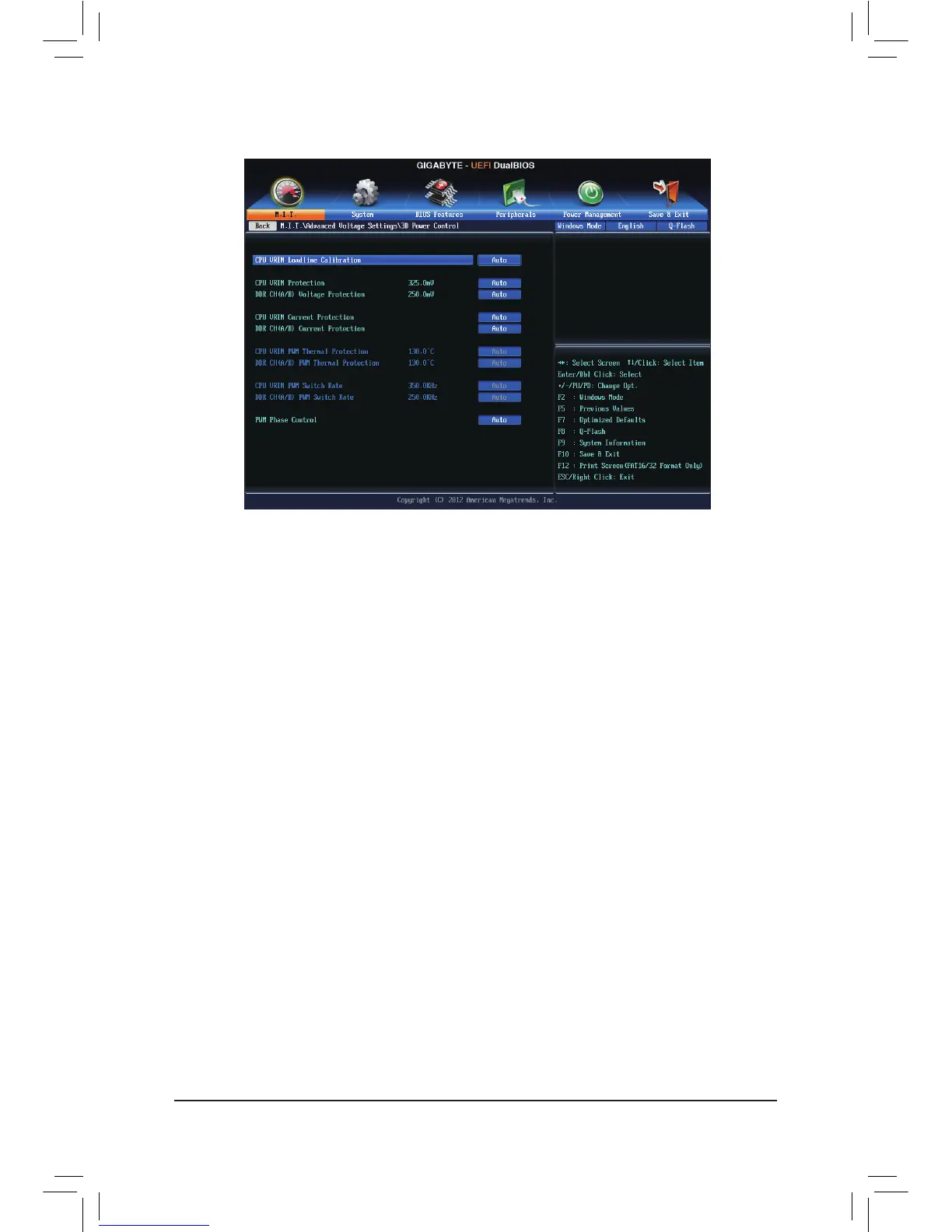

` 3D Power Control
& CPU VRIN Loadline Calibration
Allows you to set the Load-Line Calibration level for the CPU VRIN. The levels are (from highest to lowest):
Extreme, Turbo, High, Medium, Low, and Standard. Selecting a higher level keeps the CPU VRIN voltage
more consistent with what is set in BIOS under heavy load. Auto lets the BIOS automatically congure
this setting and sets the voltage following Intel's specications. (Default: Auto)
& CPU VRIN Protection
Allows you to set the over-current protection level for the CPU VRIN voltage. The adjustable range is from
150.0mV to 500.0mV. Auto lets the BIOS automatically congure this setting. (Default: Auto)
& DDR CH(A/B) Voltage Protection
Allows you to set the voltage limit on Channel A and Channel B memory voltage for over-voltage protection.
The adjustable range is from 150.0mV to 300.0mV. Auto lets the BIOS automatically congure this setting.
(Default: Auto)
& CPU VRIN Current Protection
Allows you to set the over-current protection level for the CPU VRIN voltage.
Auto Lets BIOS automatically congure this setting. (Default)
Standard~Extreme Selects Standard, Low, Medium, High, Turbo, or Extreme which represents different
level of over-current protection for the CPU VRIN voltage.
& DDR CH(A/B) Current Protection
Allows you to set the over-current protection level for the memory voltage.
Auto Lets BIOS automatically congure this setting. (Default)
Standard~Extreme Selects Standard, Low, Medium, High, Turbo, or Extreme which represents different
level of over-current protection for the memory voltage.
