Appendix
6-1-2 ConguringS/PDIFIn/Out
A.S/PDIFIn
The S/PDIF In cable (optional) allows you to input digital audio signals to the computer for audio processing.
1.ConnectingaS/PDIFInCable:

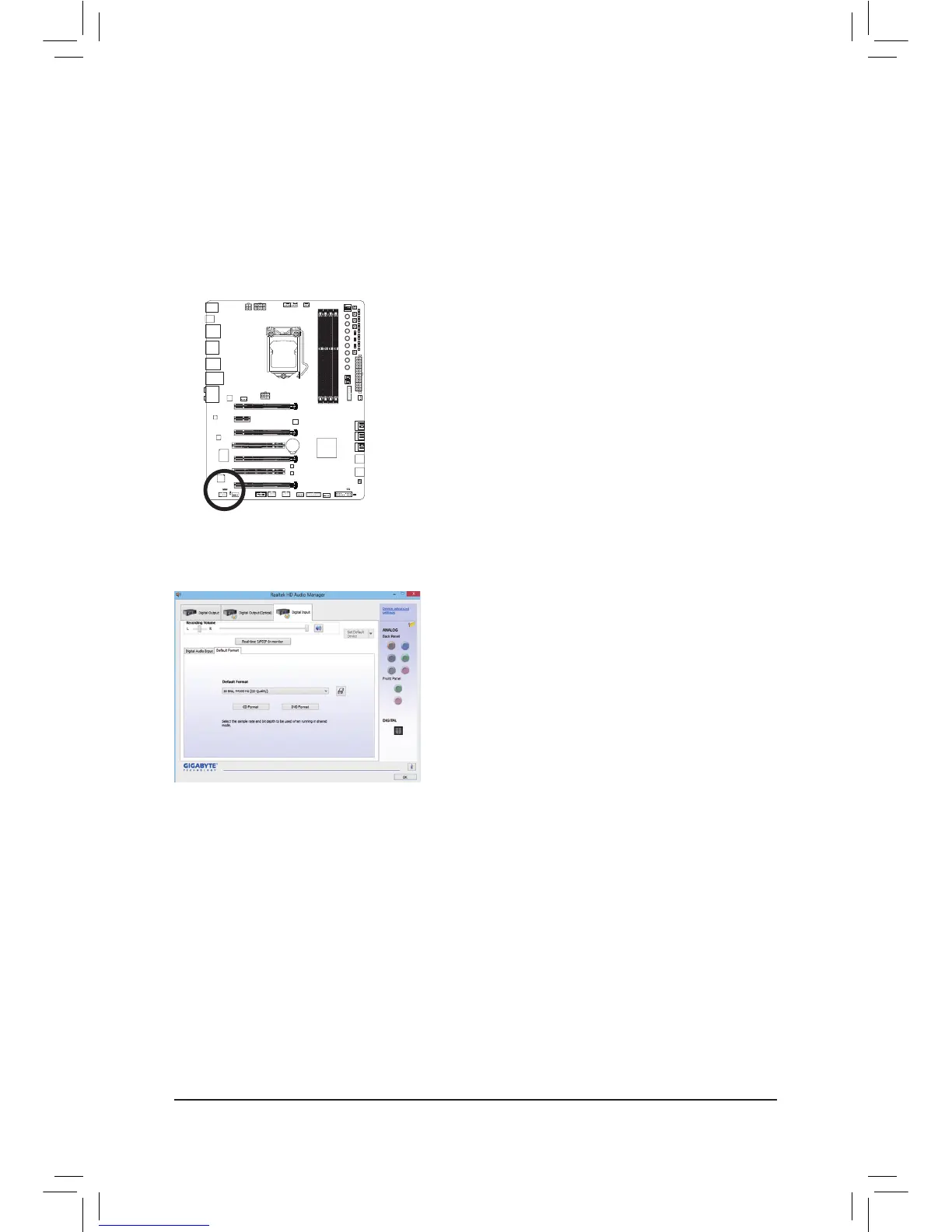

Connect a S/PDIF in cable to the SPDIF_IN header on the motherboard as shown below.
2.ConguringS/PDIFIn:
On the DigitalInput screen, click the DefaultFormat tab and then select the sample rate and bit depth. Click
OK to complete.
DIP
1 23
4
