Hardware Installation - 12 -

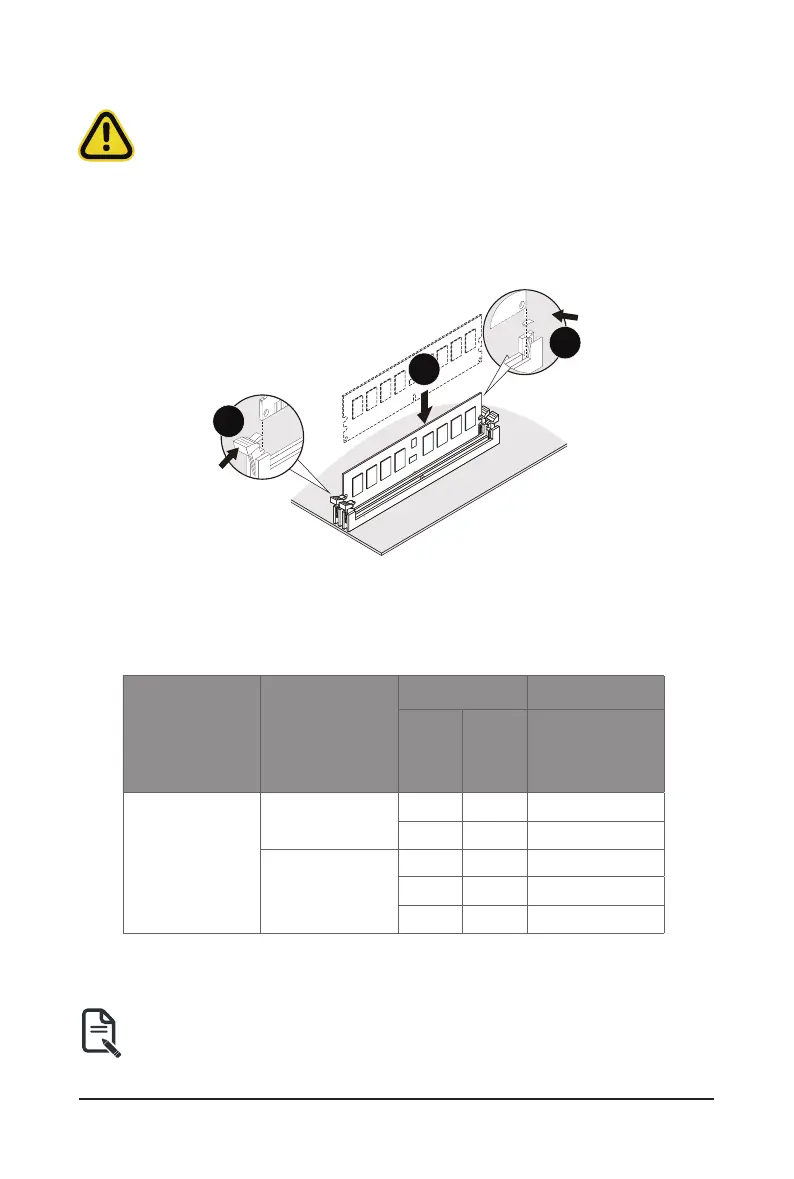

1-3-2 Installing and Removing a Memory Module
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on to this motherboard.
Follow these instructions to install a DIMM module:
1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
Slots DIMMs Populated
DIMM Frequency (MT/s)
1R
2R
2DR
2S2R
2S4R
1.2V
2
1
1 -- 2667
-- 1 2400
2
2 -- 2133
1 1 1866
-- 2 1866
1-3-3 DIMM Population Table
UDIMM/RDIMM Maximum Frequency Supported Table
Note:
• Memory capacity 64GB/channel
• When populang DIMMs into a channel, slot numbers having the suffix “1” must be populated first, then followed
by slot numbers having the suffix “0”.
