- 39 -
BIOS Setup
2-2-6

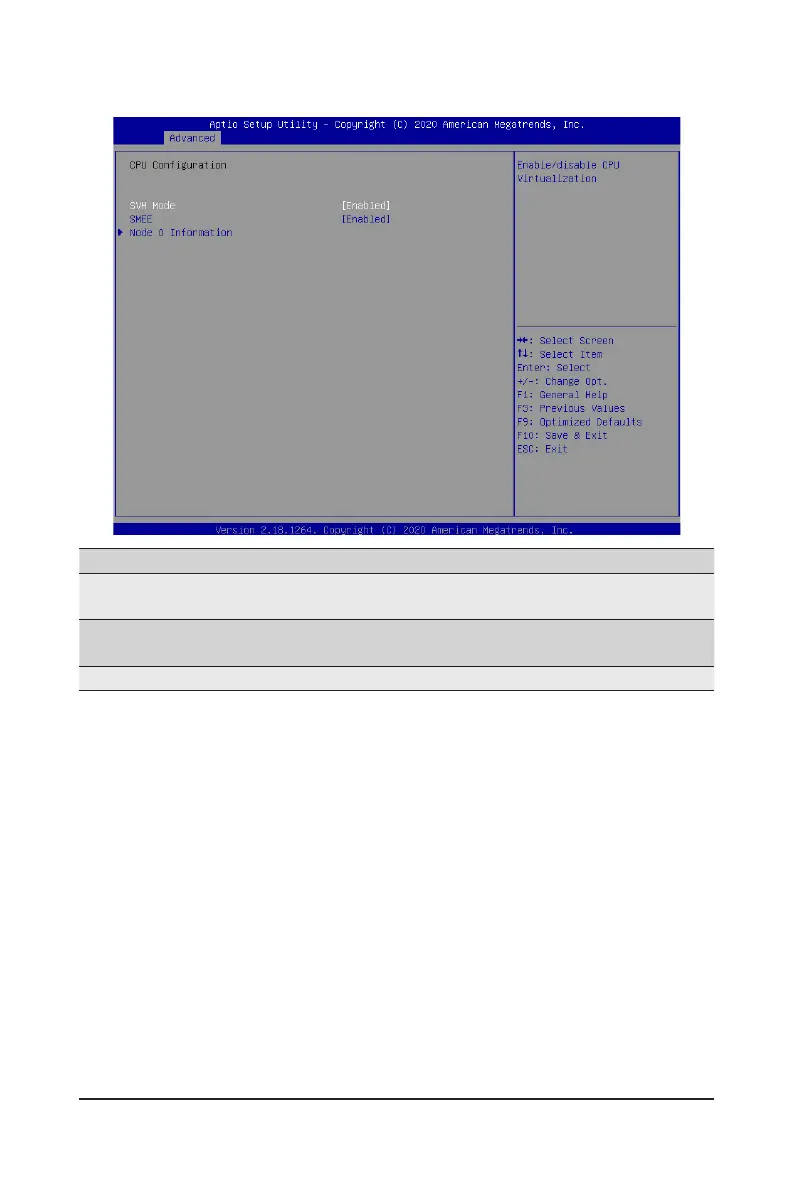

CPU Conguration
Parameter
Description
SVM Mode
Enable/Disable the CPU Virtualization.
Options available: Enabled, Disabled. Default setting is
Enabled
.
SMEE
Controls the Secure Memory Encryption Enable (SMEE) function.
Options available: Enabled, Disabled. Default setting is
Enabled
.
Node 0 Information
Press [Enter] to view the memory information related to Node 0.
