- 63 -
BIOS Setup
2-2-13

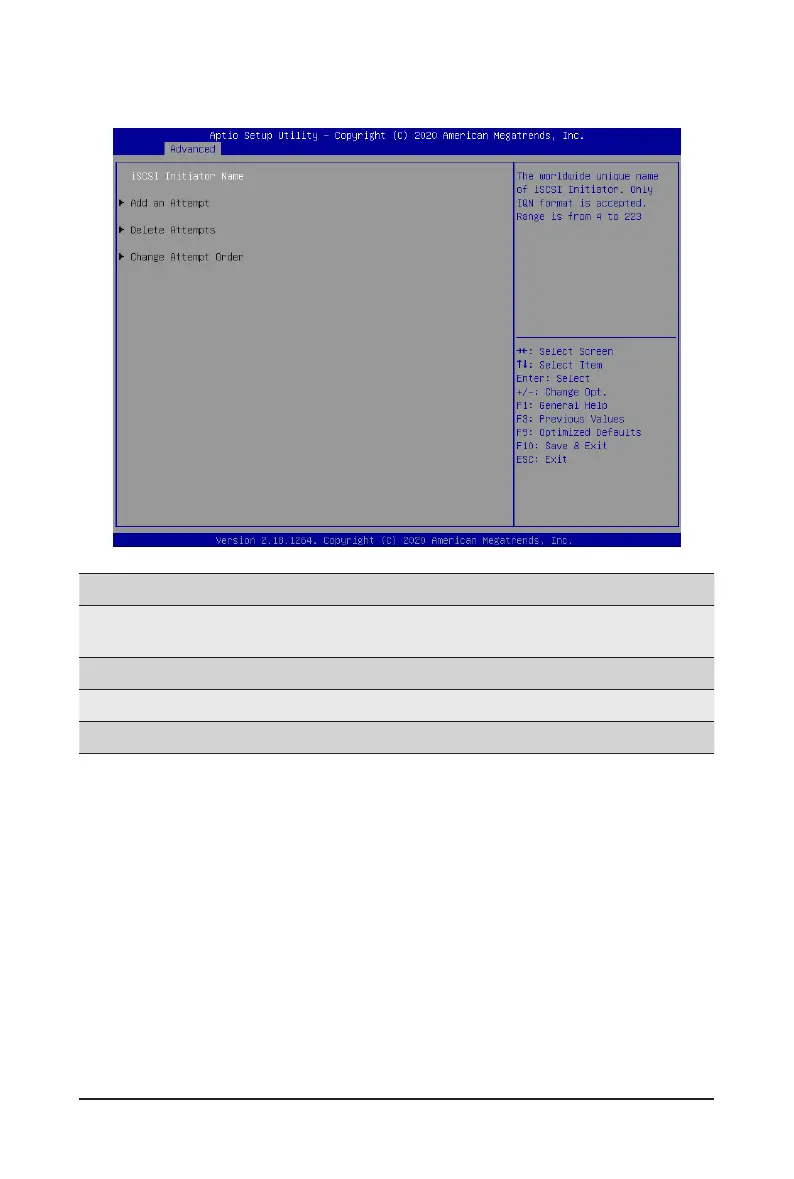

iSCSI Conguration
Parameter
Description
iSCSI Initiator Name
Press [Enter] and name iSCSI Initiator
. Only IQN format is accepted.
Range: from 4 to 223
Add
an Attempt
Press[Enter]tocongureadvanceditems.
Delete Attempts
Press[Enter]tocongureadvanceditems.
Change Attempt
Order
Press[Enter]tocongureadvanceditems.
62
64
Table of Contents
Default Chapter
3
Table of Contents
3
MJ11-EC0 Motherboard Layout
5
Block Diagram
7
Chapter 1 Hardware Installation
8
Installation Precautions
8
Product Specifications
9
Installing and Removing Memory
11
2-Channel Memory Configuration
11
Installing and Removing a Memory Module
12
DIMM Population Table
12
Installing and Removing the M.2 SSD Module
13
Back Panel Connectors
14
Internal Connectors
15
Jumper Settings
23
Chapter 2 BIOS Setup
24
The Main Menu
26
Advanced Menu
29
Trusted Computing
30
PSP Firmware Versions
32
Ast2500 Super Io Configuration
33
S5 RTC Wake Settings
35
Serial Port Console Redirection
36
Cpu Configuration
39
PCI Subsystem Settings
40
Usb Configuration
42
Nvme Configuration
44
Sata Configuration
45
Amd Cbs
46
Network Stack Configuration
62
Iscsi Configuration
63
T1S Auth Configuration
64
Intel(R) I210 Gigabit Network Connection
65
Vlan Configuration
67
Mac Ipv4 Network Configuration
69
Mac Ipv6 Network Configuration
70
Chipset Setup Menu
72
North Bridge
73
Error Management
74
Server Management Menu
75
System Event Log
77
View FRU Information
78
Bmc Network Configuration
79
Ipv6 Bmc Network Configuration
80
Security Menu
81
Secure Boot
82
Boot Menu
85
Save & Exit Menu
87
ABL POST Codes
88
Startprocessortestpoints
88
Memory Test Points
88
PMU Test Points
88
Original Post Code
89
CPU Test Points
90
Topology Test Points
90
Extended Memory Test Point
90
Gnb Earlier Init
91
PMU Test Points
94
ABL0 Test Points
94
ABL5 Test Points
94
Agesa POST Codes
98
Universal Post Code
98
0Xa1Xx] for CZ Only Memory Postcodes
98
S3 Interface Post Code
101
PMU Post Code
101
0Xa5Xx] Assigned for AGESA PSP Module
101
0Xa9Xx, 0Xaaxx] Assigned for AGESA NBIO Module
104
0Xacxx] Assigned for AGESA CCX Module
106
0Xadxx] Assigned for AGESA DF Module
107
0Xafxx] Assigned for AGESA FCH Module
107
BIOS POST Beep Code (AMI Standard)
109
PEI Beep Codes
109
DXE Beep Codes
109
