BIOS Setup
- 78 -
2-4-2

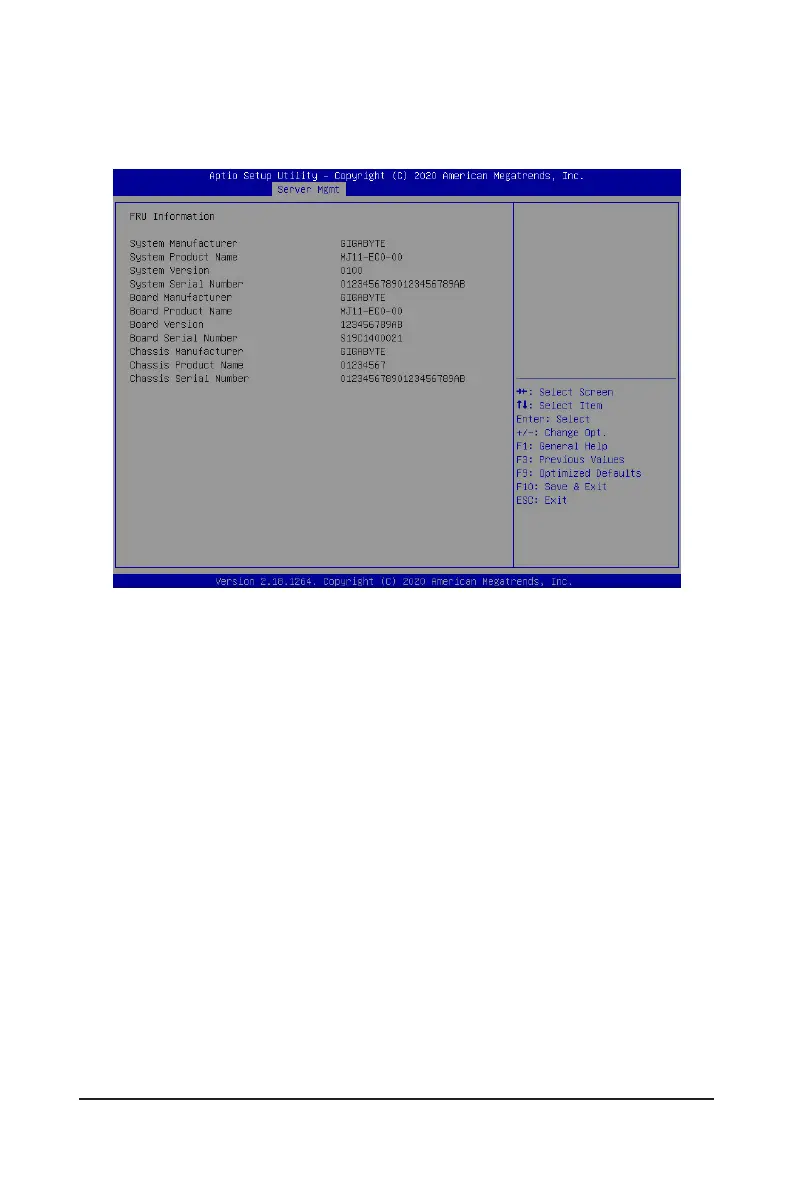

View FRU Information
The
FRU
page
is
a
simple
display page
for basic
system ID
information, as
well as
System product
information.Itemsonthiswindowarenon-congurable.
(Note)
The model name will vary depends on the product you purchased
77
