Gigabyte MZ73-LM1 User Manual

BIOS Setup
- 94 -

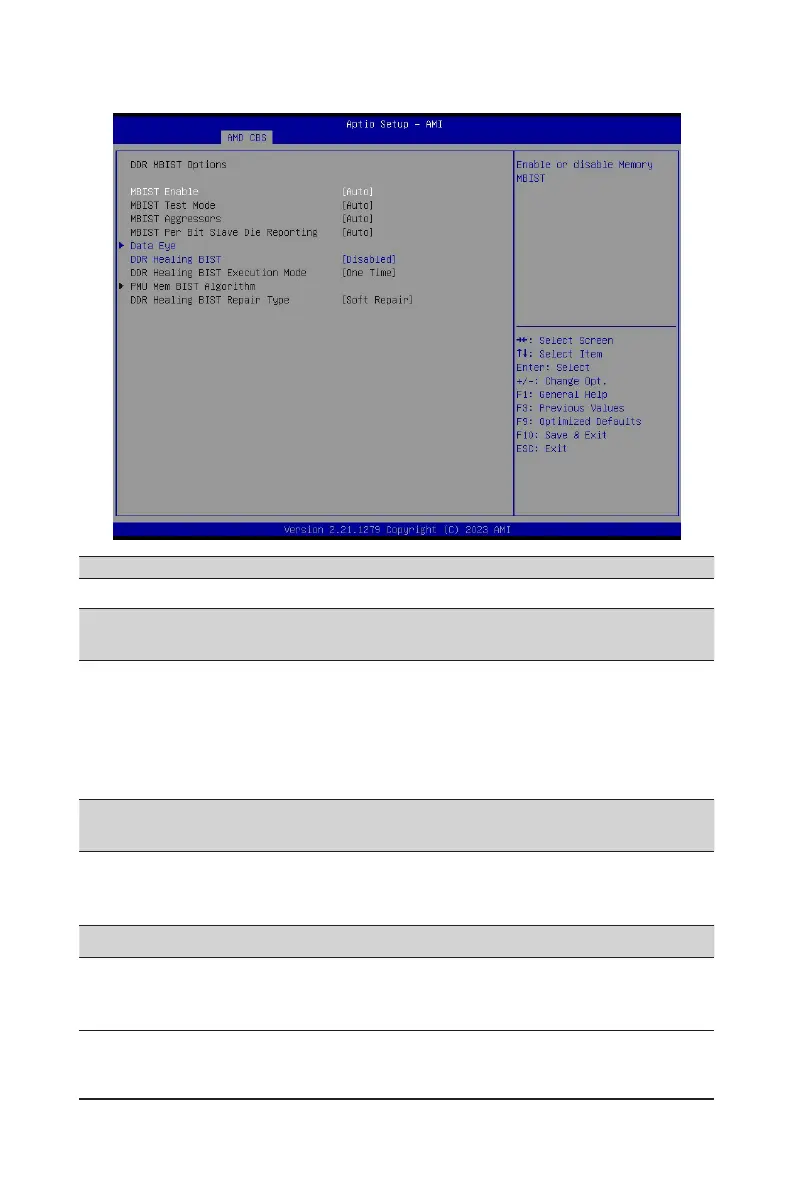

2-3-3-3 DDR MBIST Options
Parameter Description
DDR MBIST Options
MBIST Enable
Enable/Disable the Memory MBIST function.
Options available: Disabled, Enabled, Auto. Default setting is Auto.
MBIST Test Mode
(Note1)
Selects MBIST Test Mode.
Interface Mode: Tests Single and Multiple CS transactions and Basic
Connectivity.
Data Eye Mode: Measures Voltage vs. Timing.
Options available: Auto, Both, Interface Mode, Data Eye Mode. Default
setting is Auto.
MBIST Aggressors
(Note1)
Enable/Disable MBIST Aggressor test.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
MBIST Per Bit Slave Die
Reporting
(Note1)
Enable/Disable to report 2D data eye results in ABL log for each DQ,
Chipselect, and Channel.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Data Eye
Press[Enter]tocongureadvanceditems.
Memory Healing BIST
Enable/Disable memory healing BIST.
Options available: Disabled, PMU Mem BIST, Self-Healing Mem BIST,
PMU and Self-Healing Mem BIST. Default setting is Disabled.
(Note1) This item appears when MBIST Enable is set to Enabled.
