Page 68 MDE-5412C Passport® EDGE Installation and Start-up Manual · February 2019
Passport Edge Software Setup

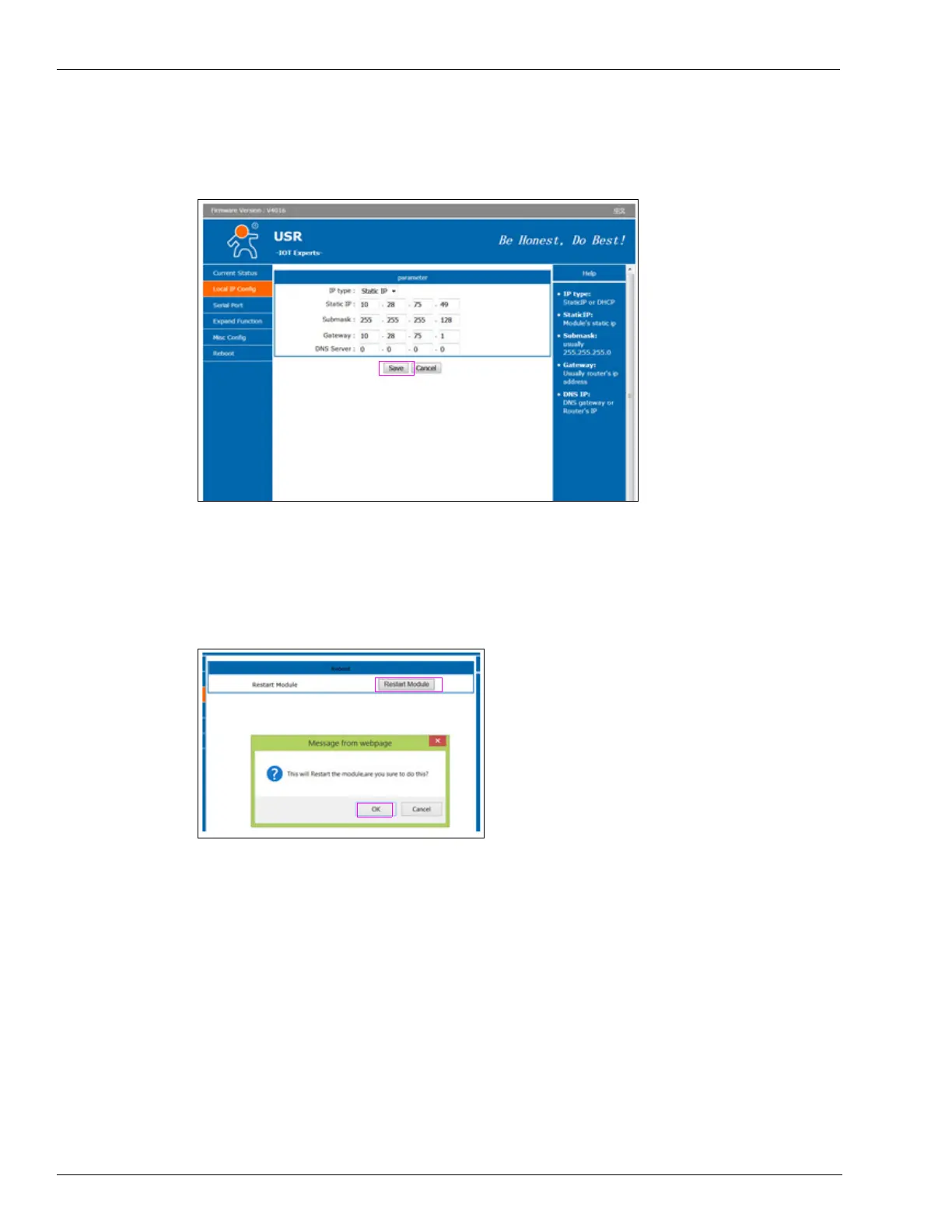

14 After configuring all the settings correctly, select Save.
Figure 99: Saving Configuration
15 When the prompt to restart the module is displayed, click Restart Module and then click OK
to make the changes active.
Figure 100: Making Changes Active
16 Connect the customer display to the Serial to IP Adapter and then connect the Serial to IP
Adapter to the SZR using the template that was selected from page 7 through page 12.
17 Once connected, contact Acumera at 1-512-687-7401 and press option 1 or contact Gilbarco
TAC at 1-800-743-7501. Select option 3 then option 2 to ensure that the customer display
device(s) is/are registered within the SZR.
