5 - Check the following conditions:
PIN 1 diagnostic socket - PIN 10 control unit =
continuity
PIN 2 diagnostic socket - PIN 23 control unit =
continuity with earth
PIN 3 diagnostic socket - PIN 9 control unit = con-
tinuity
10 - 23 = insulation (>1 MΩ)
9 - 23 = insulation (>1 MΩ)
YES go to 6 NO go to 7
6 - The circuit is in good working order. Check the control unit.
7 - Fix the interruption or short-circuit.

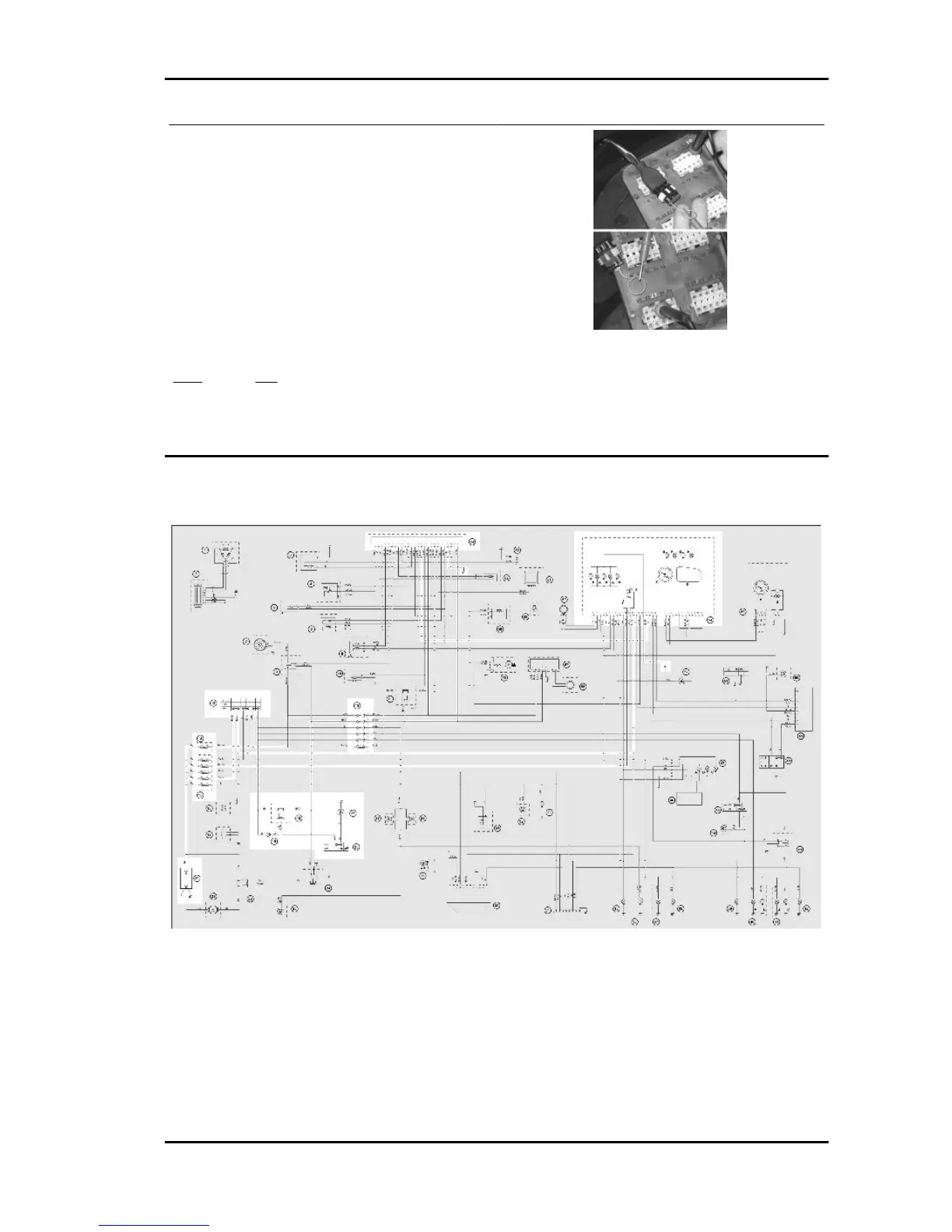

Injection warning light circuit
KEY:
12. Key switch
13. Fuse box A
14. Main fuse
15. Fuse box B
18. Engine stop remote control
Nexus 500 euro 3 Injection
INJEC - 207
