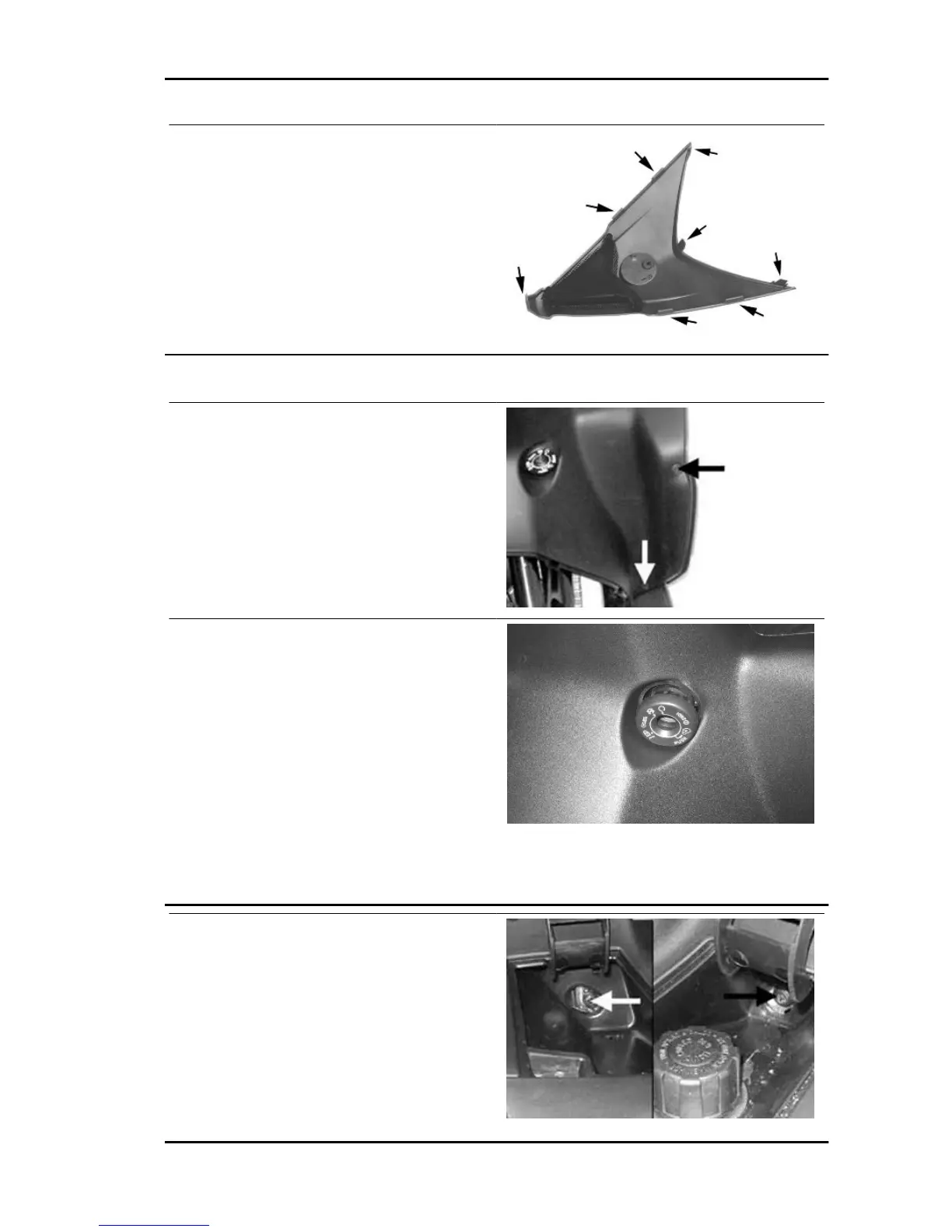

- Paying attention not to damage the plastic parts,
release the 3 upper retainers of the windshield
support and the 4 side retainers of the front shield.
Knee-guard
- Remove the centre union.
- Remove the 4 lateral screws (2 on each side) in-
dicated in the figure.
- Press the shield back plate forward to allow ac-
cess to the socket on the frame of the key switch.
- Turn the frame in anticlockwise direction (it may
be necessary to use pliers), disengaging the lock-
ing teeth shown in the figure.
- Remove the front fuse holder, levering out using a flat screwdriver on the tab located on the side (on
the side of the key switch).
- Remove the 2 screws located inside the storage
compartment and the coolant top-up compartment
(in order not to have to remove the front headlight).
Nexus 500 euro 3 Chassis
CHAS - 343
