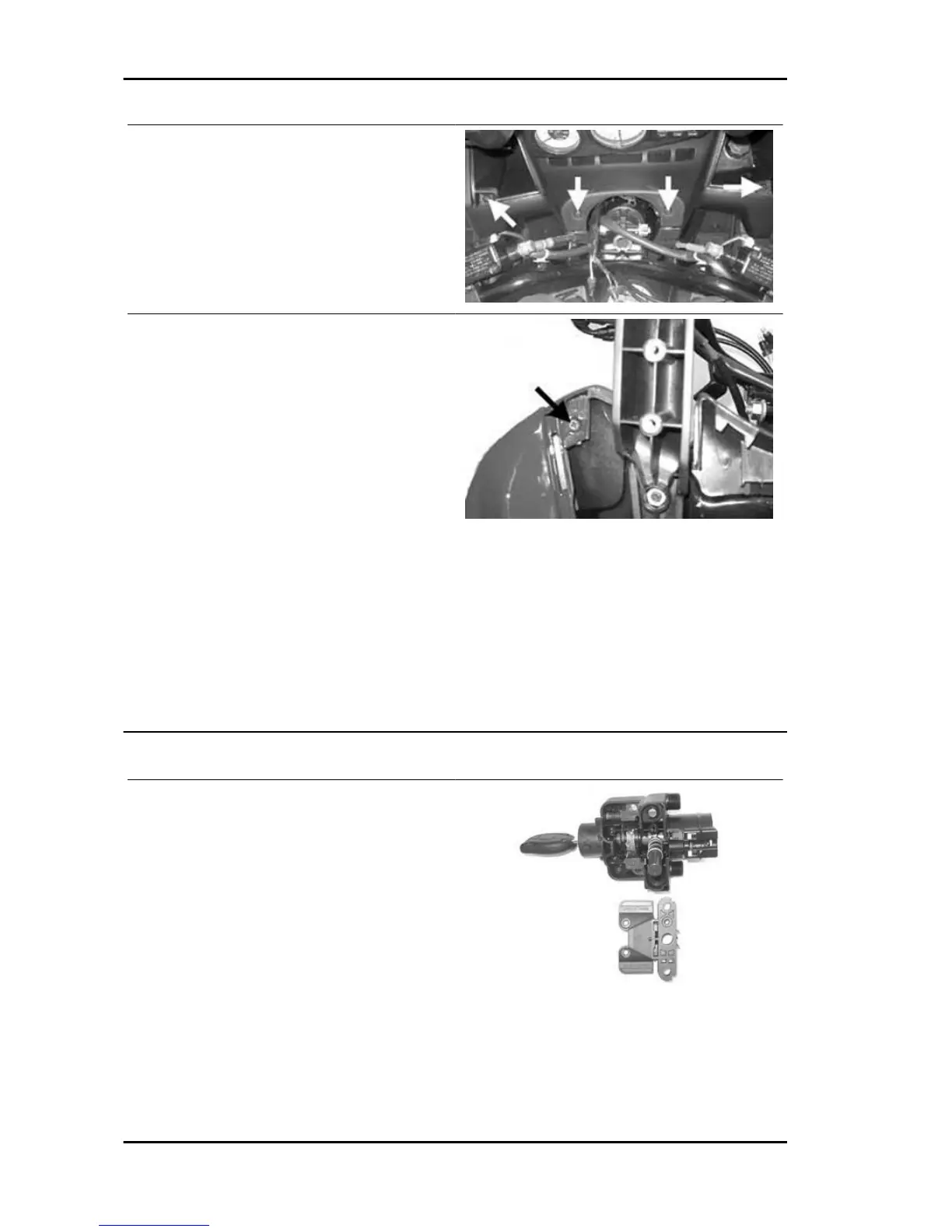

- Unscrew the 4 screws indicated in the figure.
- Loosen the two upper screws on the front of the
scooter holding the plate.
- Remove the handlebar retaining bolt, unscrewing upwards and pushing towards the lower shield back
plate.
- Remove the cap of the expansion tank and the rubber gasket using a screwdriver or pliers.
- Disconnect the complete upper shield back plate from the lower section paying particular attention to
the tab located under the glove-box (left-hand side).
Once raised, remove the 3 connectors of the instrument panel and the connector on the wiring of the
instrument lighting.
Removing the ignition key-switch when on *off*
- Remove the lower shield back plate.
- Unscrew the seat opening transmission from the
side.
- Remove in advance the ring of the immobiliser
antenna.
- Loosen the 2 hex. socket head screws and re-
move the complete switch.
Chassis Nexus 500 euro 3
CHAS - 344
