51. Emergency light switch
52. Oil pressure sensor
53. Instrument panel
A. Rpm indicator
B. Instrument panel bulbs
54. Instrument panel
A. Instrument panel bulbs
B. Immobilizer LED
C. Speedometer
D. Digital display
E. Engine Warning indicator light
F. Low fuel warning light
G. Oil warning light
55. Immobilizer aerial
56. Fuel pump / fuel level transmitter
57. Immobilizer decoder
58. Fuel injector
59. Spark plug
60. Tone wheel
61. HV coil
62. Lambda probe
63. Diagnostic socket
64. Fuel injection electronic control unit
Ar = Orange, Az = Sky Blue, Bi = White, Bl = Blue, Gi = Yellow, Gr = Grey, Ma = Brown, Ne = Black,
Ro = Pink, Rs = Red, Ve = Green, Vi = Purple
Components arrangement

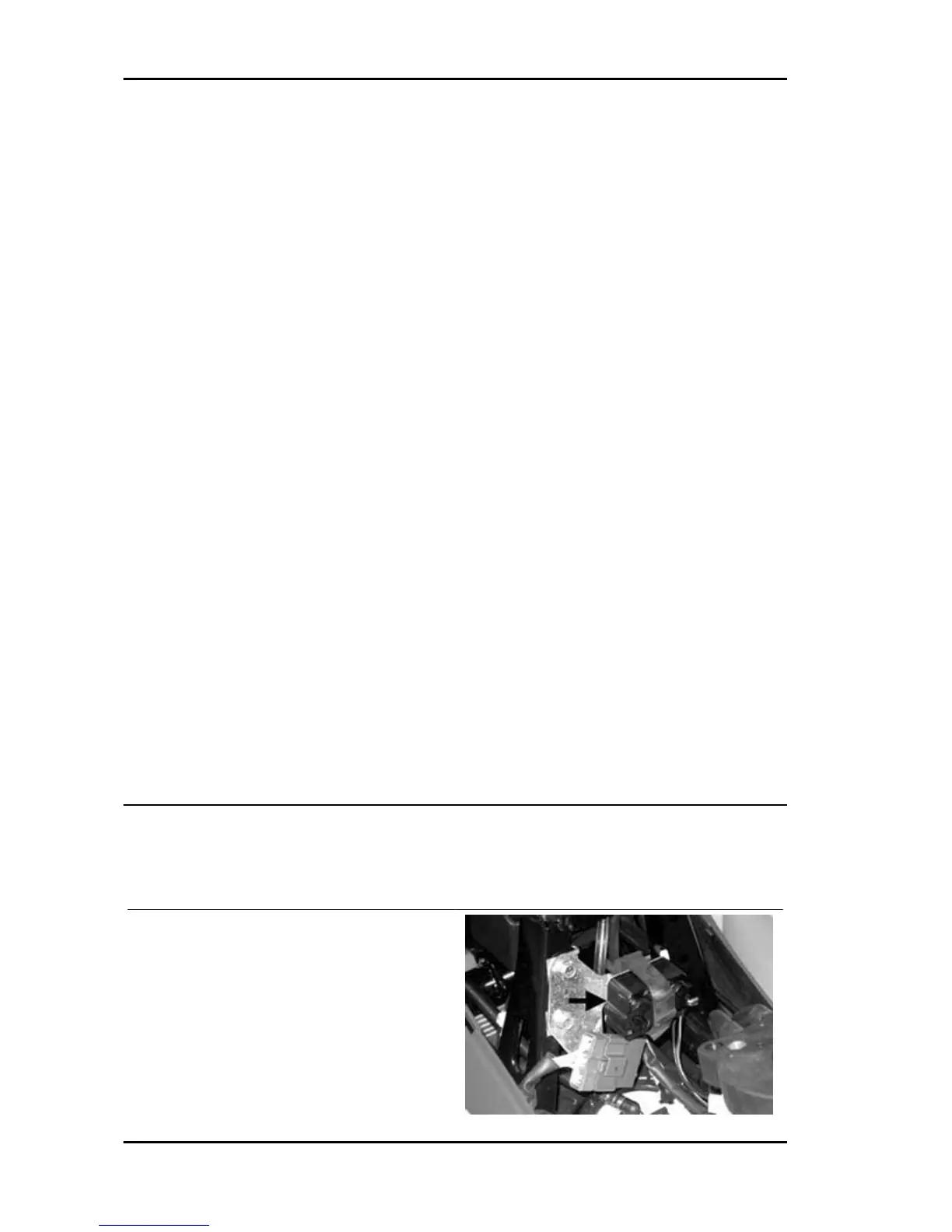

Diagnostic socket
In order to access the diagnostic socket, remove the supports of the passenger footrest.
Overturn sensor
In order to access the overturn sensor, remove the
central union.
Electrical system Nexus 500 euro 3
ELE SYS - 46
