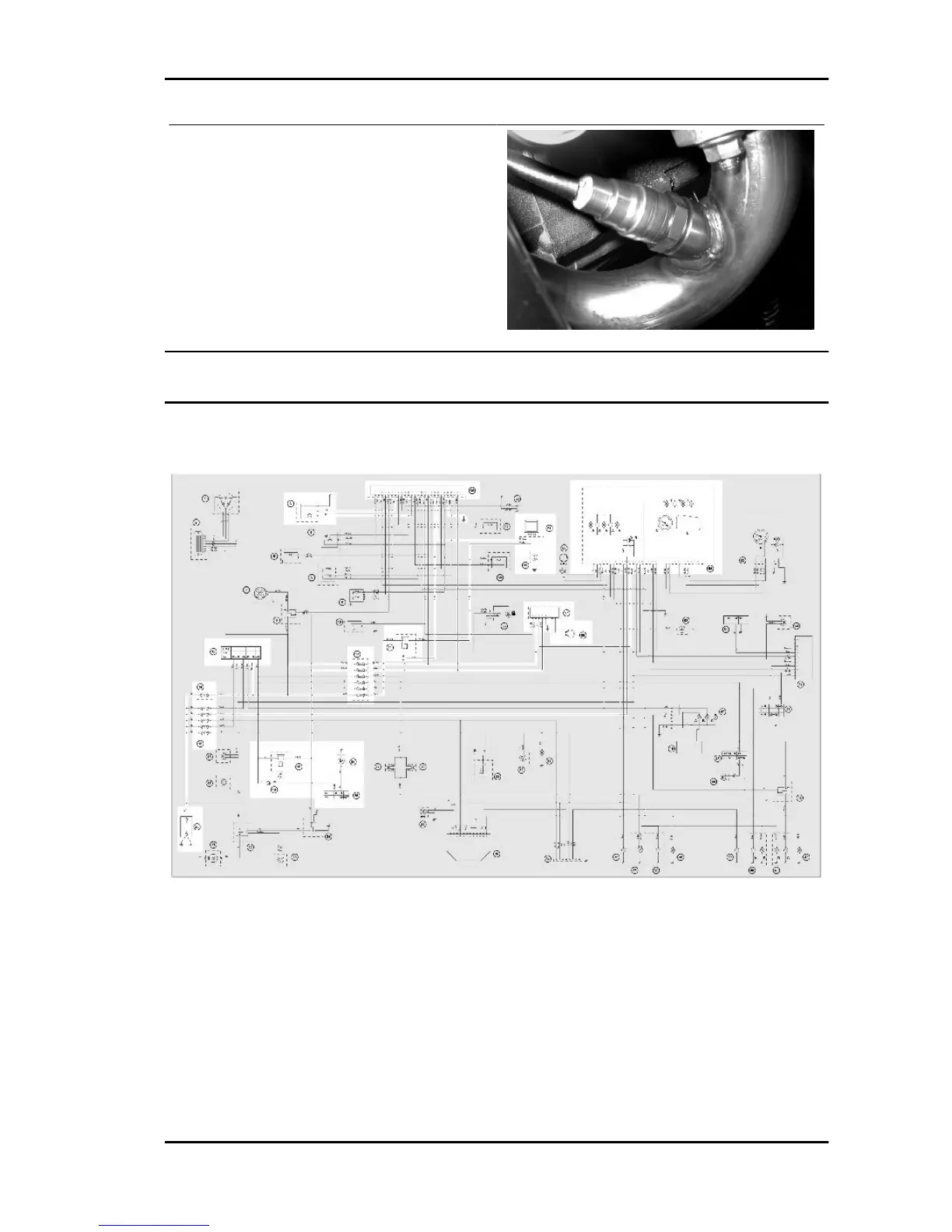

Lambda probe
The lambda probe is mounted on the exhaust
manifold
Conceptual diagrams
Ignition
KEY:
3. Engine rpm sensor
11. Injection load remote control
12. Key switch
13. Fuse box A
14. Main fuse
15. Fuse box B
18. Engine stop remote control
Nexus 500 euro 3 Electrical system
ELE SYS - 49
