Specification Desc./Quantity
Location: Shield back plate
6 HV coil - fuel injector - fuel pump - remote control injec-
tion load
Designation:Fuse 12
Threshold of operation: 10 A
Location: Shield back plate
Remote control switches

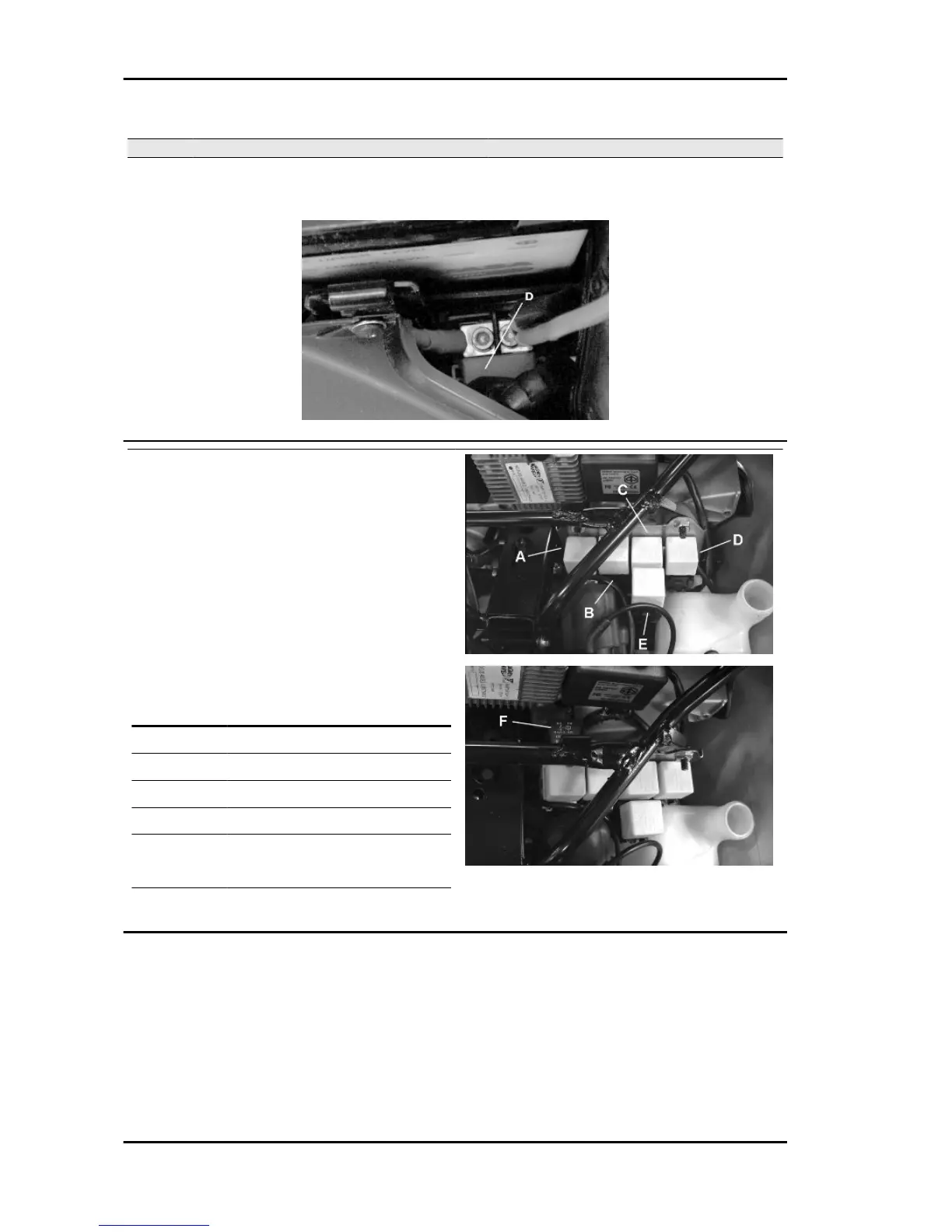

The electrical system has 6 remote control
switches located under the front shield.
In order to access the remote control switches:
•
Remove the front shield.
•
- Remove the front knee guard.
The following table shows the functions of each
remote control switch:
Remote control
switch
Description
A Immobiliser remote control switch
B Electric fan remote control switch
C Light remote control switch
D Engine stop remote control switch
E Electronic control unit remote
control switch
F
Starter remote control switch
Electrical system Nexus 500 euro 3
ELE SYS - 64
