TO REPLACE THE FUSE WITH ANY OTHER MATERIAL
(E.G., A PIECE OF ELECTRIC WIRE).
F
USIBILE PRINCIPALE
Specification Desc./Quantity
1 Generale
Nominazione: Fuse 1
Soglia di intervento: 30A
Collocazione: Vano batteria
PORTAFUSIBILI «B»
Specification Desc./Quantity
1 Non utilizzato
Nominazione: -
Soglia di intervento: -
Collocazione: Vano portacasco
2 License plate bulb - position lights - instrument panel
lights
Designation:Fuse 2
Threshold of operation: 3 A
Location: Helmet compartment
3 Instrument panel power supply
Designation:Fuse 3
Threshold of operation: 7.5 A
Location: Helmet compartment
4 Seat opener receiver power supply - anti-theft device
preparation
Designation:Fuse 4
Threshold of operation: 7.5 A
Location: Helmet compartment
5 Horn - emergency stop warning light - instrument panel
permanent power supply - light controller
Designation:Fuse 5
Threshold of operation: 7.5 A
Location: Helmet compartment
6 Helmet compartment light - socket 12V-180W - anti-theft
device preparation
Designation:Fuse 6
Threshold of operation: 15 A
Location: Helmet compartment
FUSE HOLDER "B"
Specification
Desc./Quantity

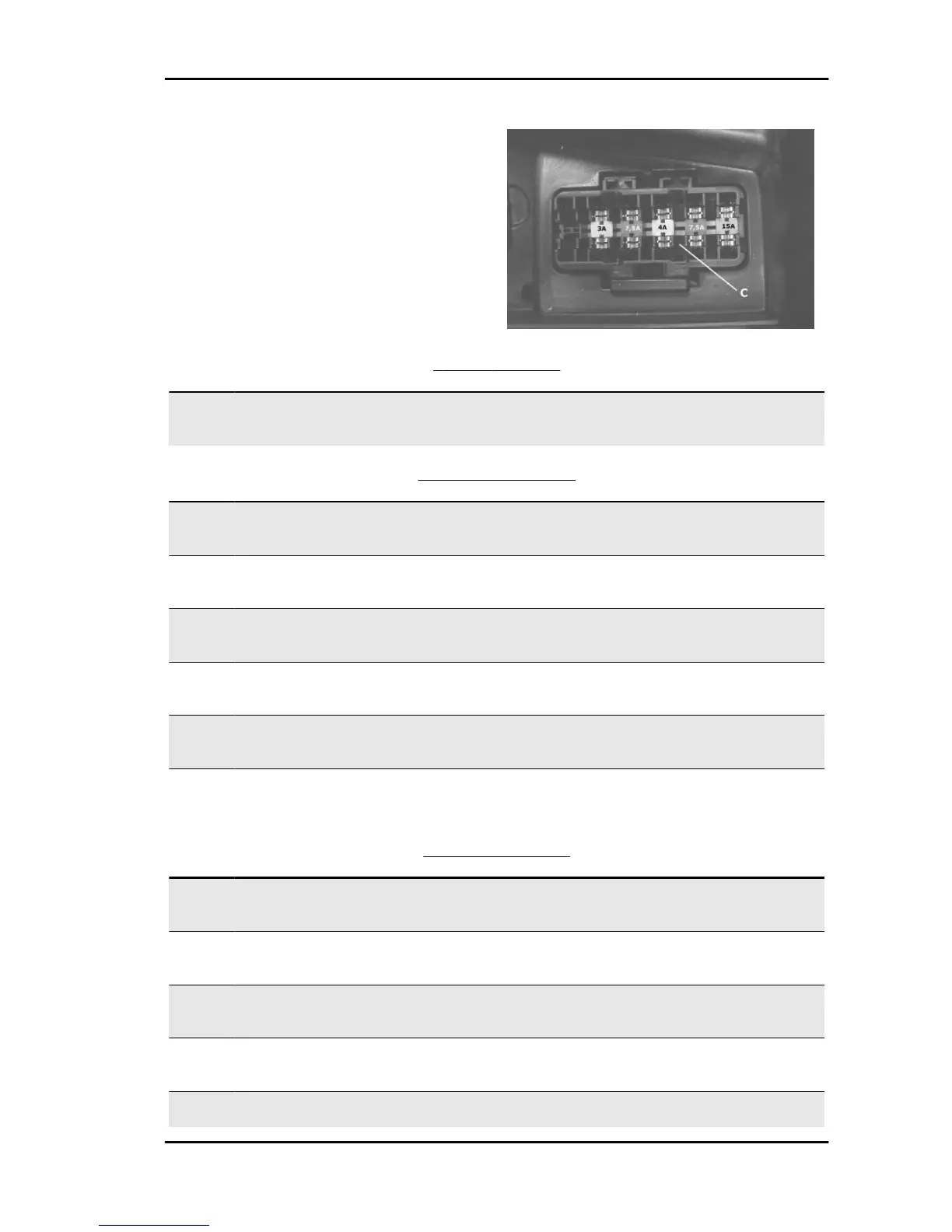

1 Immobilizer decoder power supply - ignition ECU power
supply
Designation:Fuse 7
Threshold of operation: 3 A
Location: Shield back plate
2 Ignition ECU - immobilizer decoder (+ permanent power
supply)
Designation:Fuse 8
Threshold of operation: 5A
Location: Shield back plate
3 Stop light - starter remote control coil
Designation:Fuse 9
Threshold of operation: 7.5 A
Location: Shield back plate
4 High-beam lamp with warning light
Designation:Fuse 10
Threshold of operation: 7.5 A
Location: Shield back plate
5 Low beam lamp
Designation:Fuse 11
Threshold of operation: 7.5 A
Nexus 500 euro 3 Electrical system
ELE SYS - 63
