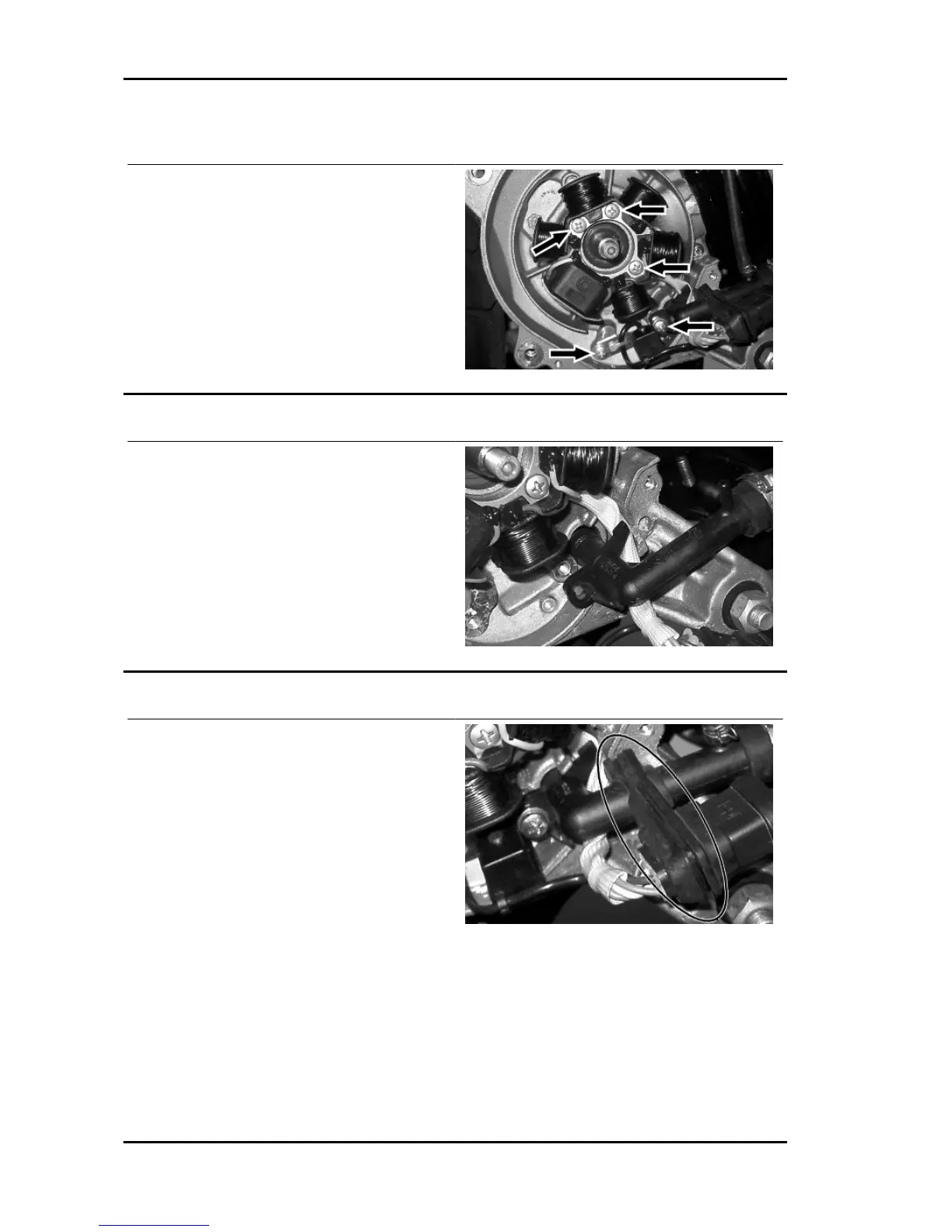

Removing the stator
- Remove the three stator fixings shown in the
- Remove the two pick-up fixings shown in the
- Remove the stator with the wiring
Refitting the stator
- Refit the stator and flywheel proceeding in the
inverse direction, tightening the studs to the pre-
scribed torque.
THREAD THE CABLE OF THE STATOR INTO THE SPECIF-
IC HOUSING OF THE CRANKCASE AND MAKE SURE
THAT IT IS LOCKED BY THE TAB OF THE RETURN LINE
OF THE COOLING SYSTEM.
Locking torques (N*m)
Pick-up screws 3 ÷ 4 Stator screws 3 ÷ 4
Refitting the flywheel cover
•
Fit the rubber seal on the flywheel con-
nector and around the inlet coolant
hose.
Engine DNA 50
ENG - 76
