Mounting bracket (Short and Long Mounts)

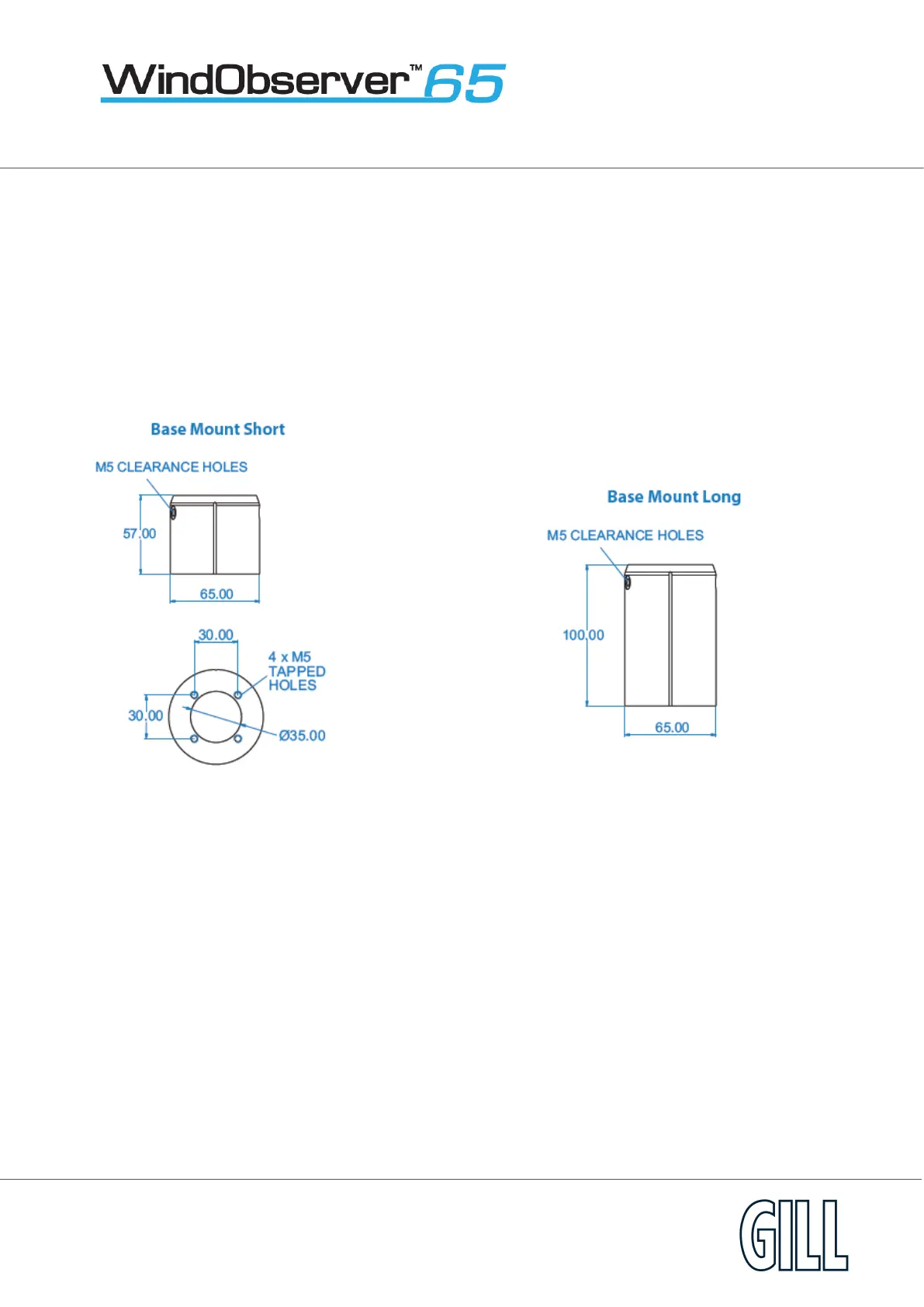

A suggested mounting bracket using Short or Long Mounts is shown in Fig 1. P17
It is recommended that the WindObserver 65 mounting bracket be manufactured from stainless steel 316, to prevent
possible galvanic corrosion.
It is also recommended that the supplied gasket be always fitted to ensure IP66 rating and to prevent galvanic corrosion
if the mounting bracket is not manufactured from stainless steel 316.
Stainless steel 316 fixings must be used.
Suggested mounting bracket and Earthing (grounding) arrangements
The example shows a long mount fitted to a cable gland unit, a similar Earthing/ mounting arrangement can be used
with short mounts and connector based units.
A mounting kit (1390-10-164) is supplied with the WindObserver 65 to allow assembly of the mount to the base of the
WindObserver.
Included in the supplied mounting kit is an O Ring Seal which must be fitted inside of the Base Mount.
Now fit the Base Mount to the WindObserver base using supplied 3 off M5x12 screws, first fit a wavy washer to them,
then a flat washer, then the seal washer before screwing to the WindObserver Base mount.
