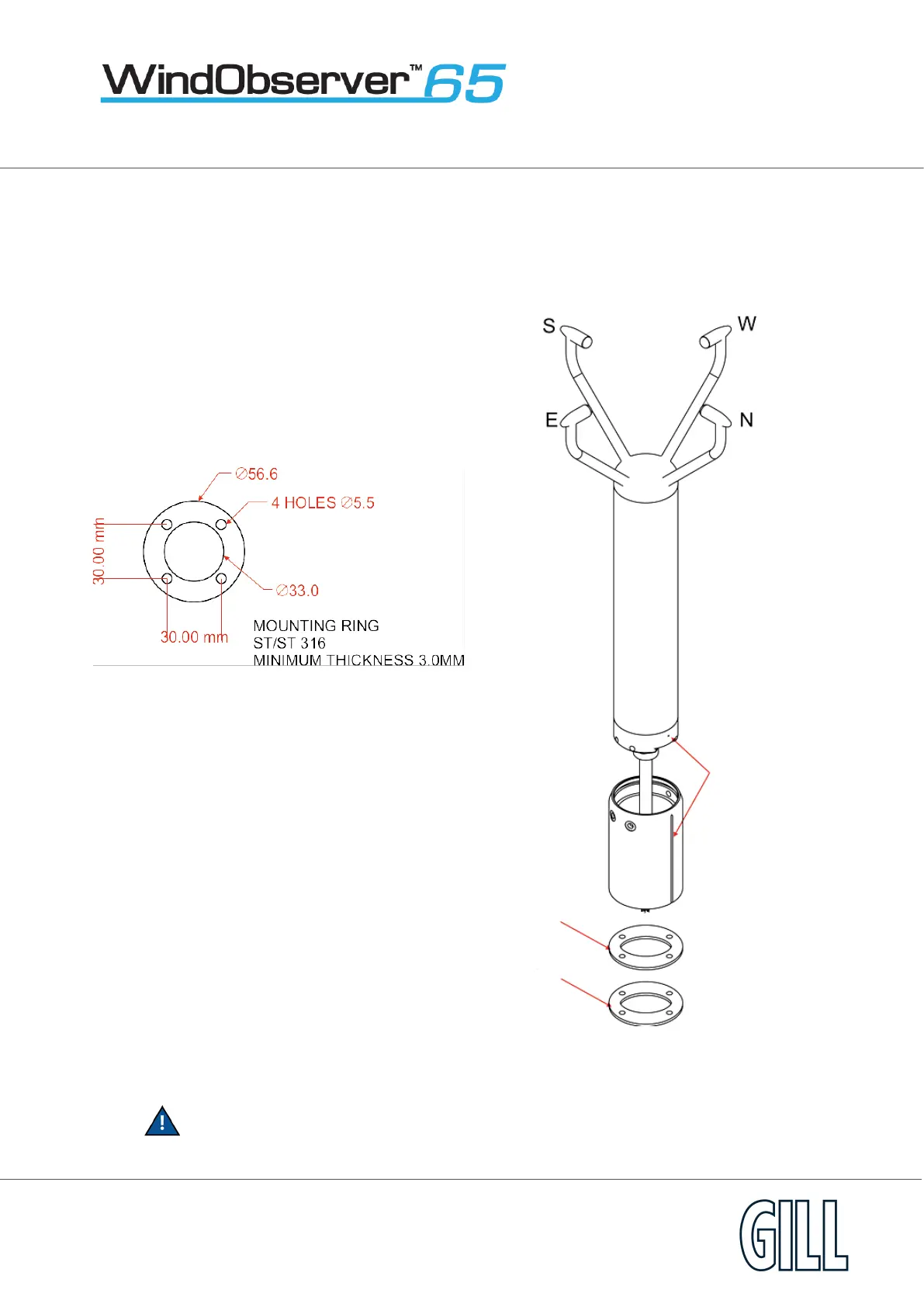

Figure 2a North Marker (Long Base Mount shown for illustrative purposes)
Pipe Mount units do not require the gasket and mounting ring.
Red Dot and Base
Mount Vertical
Groove.
Mounting Ring
(if required).
Gasket
