USER’S GUIDE | ASPEC™ POSITIVE PRESSURE MANIFOLD
OPERATION
Seat the Manifold
1. Push the manifold locking lever back to the
fully unlocked position (Red Lock Symbol,
unlocked).
2. Pull the manifold positioning lever forward
to the fully raised position (toward the Up
position).
3. Slide the locator plate back so that the SPE
cartridges are directly below the manifold.
NOTICE
If you encounter
interference with the
safety shield, remove, and
then replace the shield
after positioning the
locator plate.
4. Slowly push the manifold positioning lever
back to lower the manifold (toward the Down
position) until the manifold makes contact
with the tops of the SPE cartridges.
5. Pull the manifold locking lever forward to the
fully locked position (Green Lock Symbol,
locked) to create a seal between the manifold and the SPE cartridges.
NOTICE
Do not use the manifold positioning lever to tighten
theseal.
If the plate does not seat properly, unlock the manifold
with the manifold locking lever, and then raise the
manifold slightly with the manifold positioning lever.
Repeat steps 1 through 5.
Unseat the Manifold
1. Push the manifold locking lever back to the fully unlocked position
(Red Lock Symbol, unlocked).
2. Pull the manifold positioning lever forward to the fully raised position
(toward the Up position).
3. Slide the locator plate forward to the front of the locator bed.

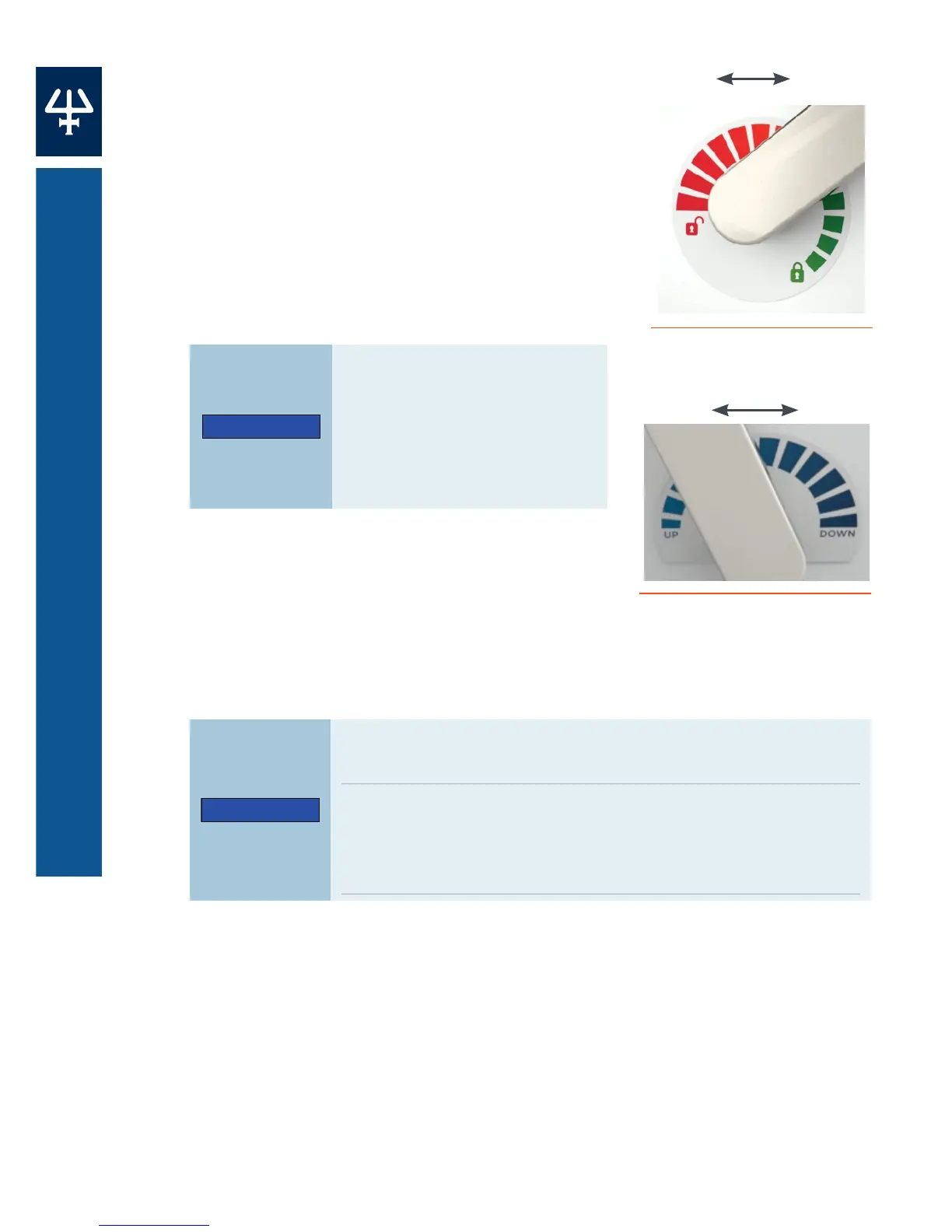

Figure 19
Manifold Locking Lever
Front
Rear
Front
Rear
Figure 20
Manifold Positioning Lever
