Installation 2
Valve Installation or Replacement
Rheodyne 7060 valve. To install the valve adapter:
1 Remove the two screws that secure the plastic
piece to the valve.
2 Remove the pin from the valve shaft.

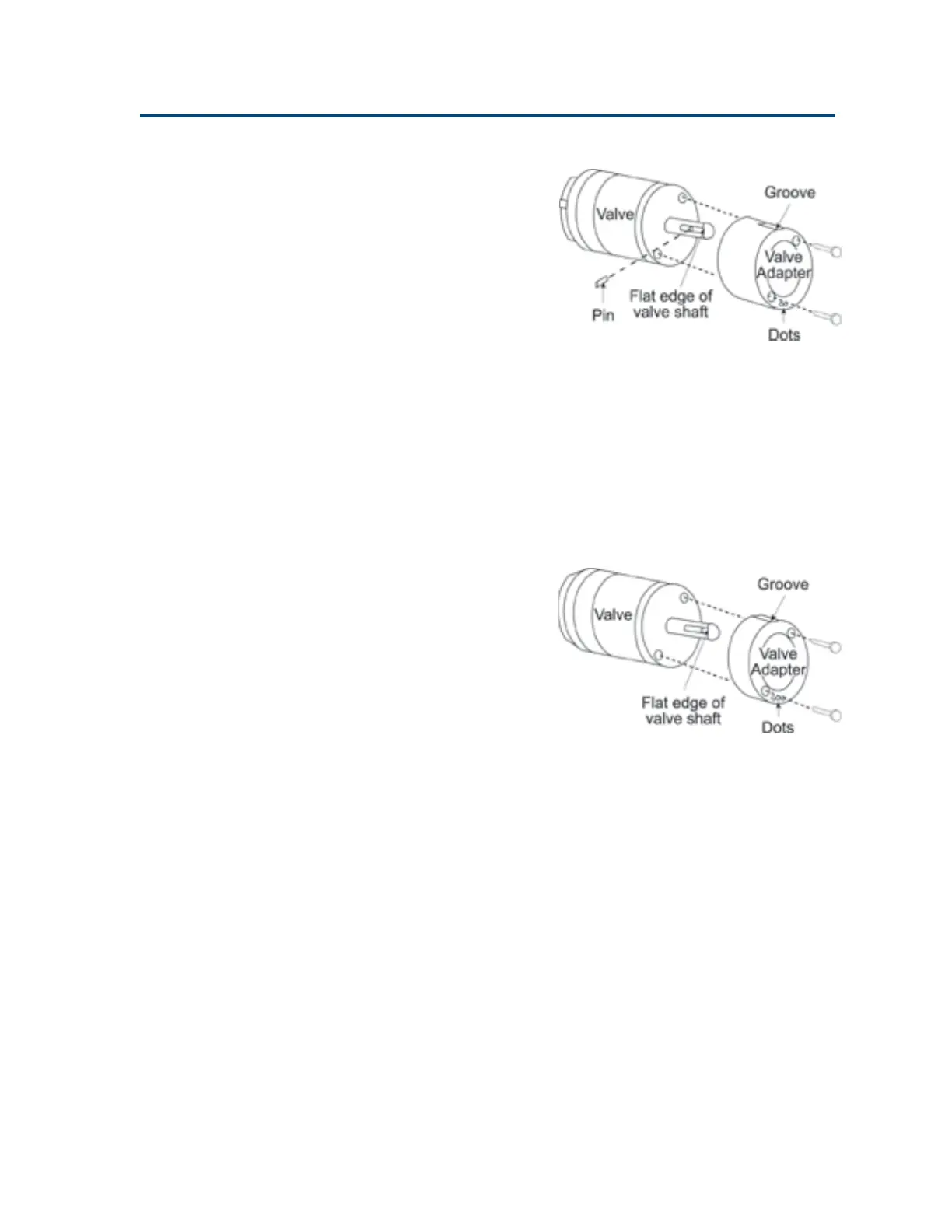

3 Refer to the diagram to install the valve
adapter. When installing the adapter to the
valve, ensure that:
• the valve adapter’s groove faces upward
• the valve’s flat edge faces the left and is
perpendicular to the valve adapter’s groove
• the two dots, located above the valve
adapter’s flat edge, face away from the valve
4 To secure the valve and adapter, insert and
tighten the two socket-head screws.
Rheodyne 7610 valve. To install the valve adapter:
1 Refer to the diagram to install the valve
adapter. When installing the adapter to the
valve, ensure that:
• the valve adapter’s groove faces upward
• the valve’s flat edge faces the left and is
perpendicular to the valve adapter’s groove
• the three dots, located above the valve
adapter’s flat edge, face away from the
valve
2 To secure the valve and adapter, insert and
tighten the two socket-head screws supplied
with the adapter.
