3.2 Instructions for Front Panel

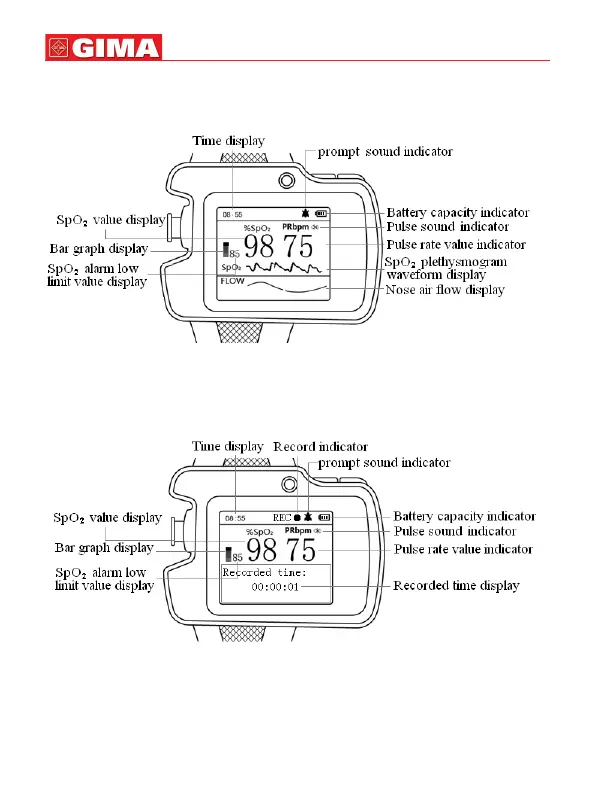

The measurement interface is showed as Figure3-2-1.
Figure 3-2-1 measurement interface
The record interface is showed as Figure3-2-2.
Figure3-2-2 record interface
(1) SpO2 value display
Indicator: %SpO2
Instruction: Put the nger into the SpO2 probe,and the corresponding SpO2
value will be displayed here.
