Sensing Edge Wiring
Consult the installation instructions supplied by manufacturer of the Sensing Edge device and determine
whether the contacts are normally open (N/O) or normally closed (N/C) .
Always disconnect power to unit BEFORE making any setting changes.
CAUTION:
Sensing Edge devices are recommended as a supplementary safety system. If required, 12 or 24 VDC
power may be sourced from terminals 5 & 6 of J3. Ensure jumper JP2 is confi gured to match required
voltage of sensing edge. Refer to page 11.
Glidermatic™
Commercial Door Operator
User Manual
10

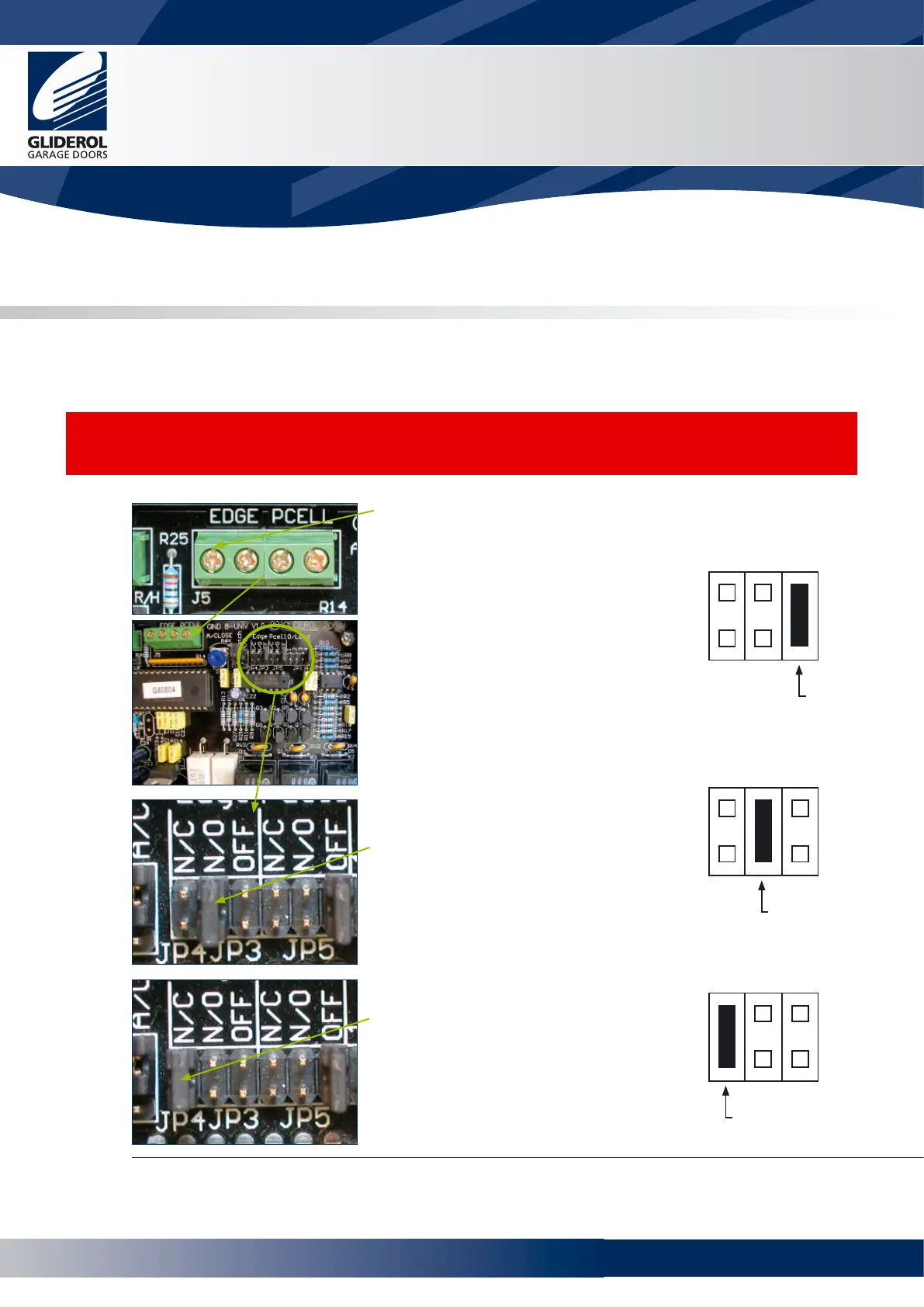

Connect the two wires from the
Sensing Edge terminals marked
EDGE on terminal block J5.
If the Sensing Edge contacts are
normally open, move jumper on
JP3 from OFF to N/O.
If the Sensing Edge features
normally closed contacts,
move jumper on JP3 from OFF
to N/C.
N/C
N/O
OFF
MOVE
N/C
N/O
OFF
TO
N/C
N/O
OFF
TO
