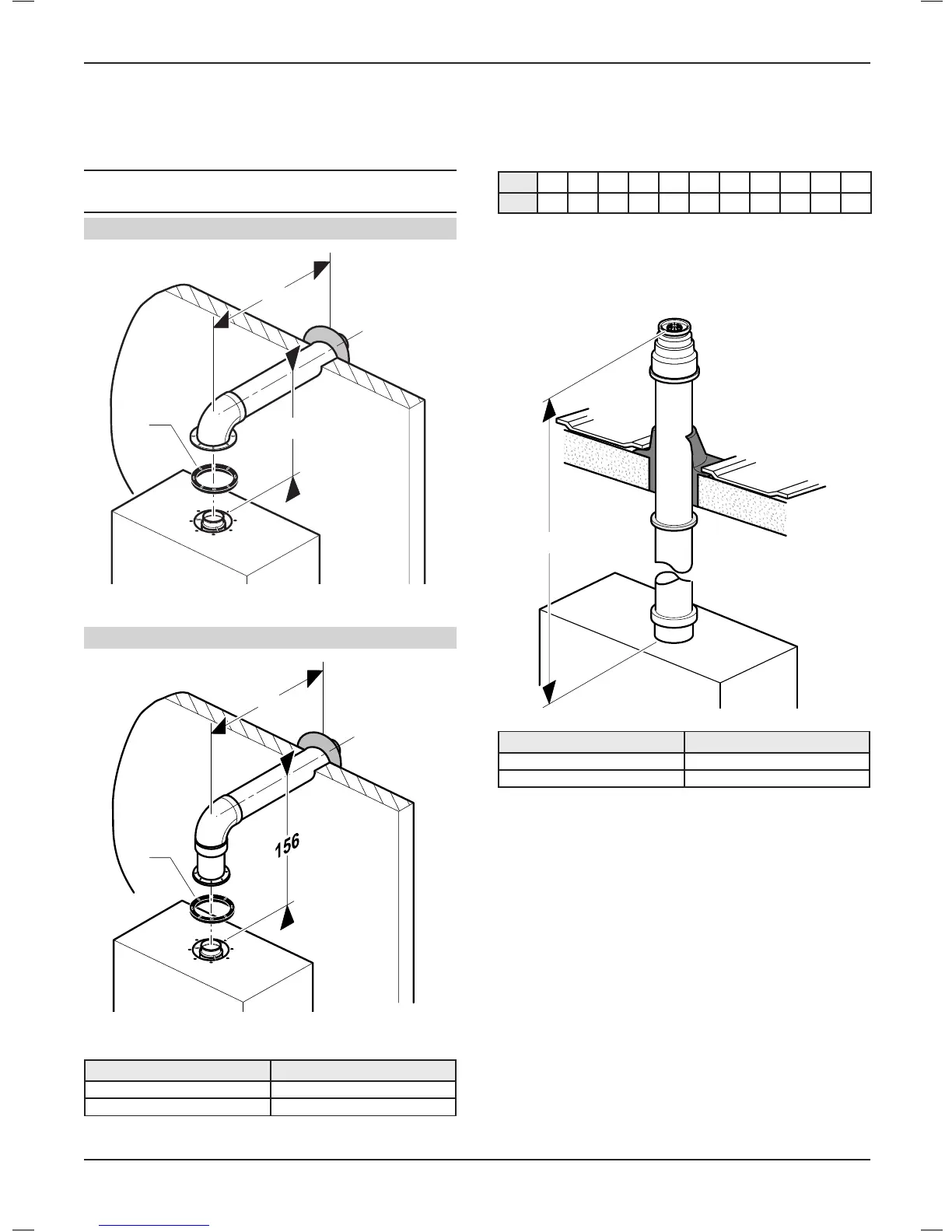

9.2 Fluecongurationdescription
9.2.1 HorizontalconcentricueØ60/100mm
orØ80/125mm(C13typeinstallation)
a
DANGER:
If necessary, you must install a terminal protection kit.
Ø 60/100 mm
L
63
1
Key
1Gasket(tted)
Ø 80/125 mm
L
1
Key
1Gasket(tted)
Type Max length
Ø 60/100 6 m
Ø 80/125 10 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
When using the Plume Management Kit, the maximum lengths
ue pipe A and B (60/100mm) are:
A
(m)
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
B
(m)
5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5
• Refer to the Plume Management Kit installation manual.
9.2.2 VerticalconcentricueØ60/100mm
orØ80/125mm(C33typeinstallation)
L
Type Max length (L)
Ø 60/100 6 m
Ø 80/125 10 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
