Glow-worm Easicom 28 Installation And Servicing

0020145065_01 - 09/12 - Glow-worm

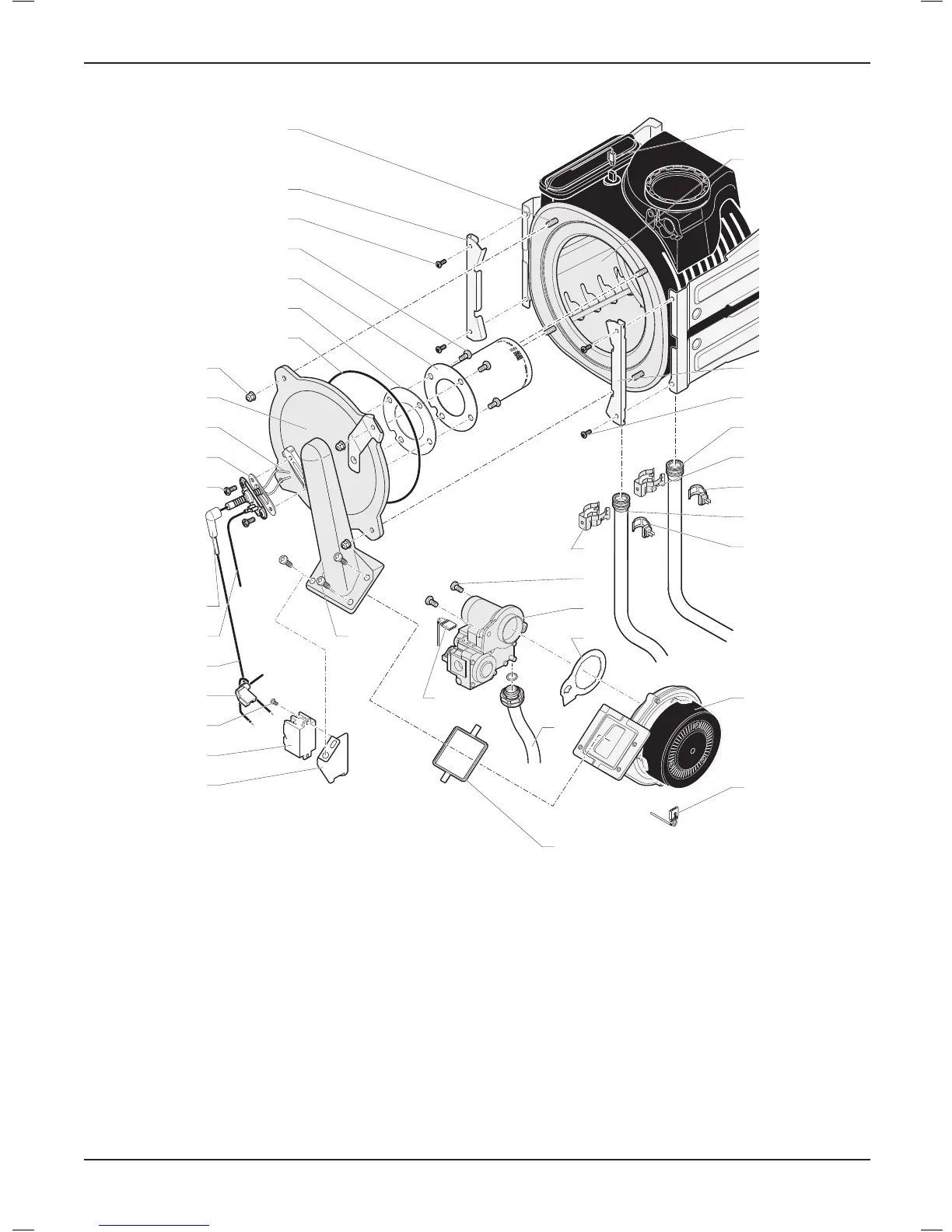

18.5 Combustion block
2019
18
17
16
15
14
13
12
11
21
10
22
9
23
25
24
26
27
28
8
30
29
31
32
7
33
6
5
4
34
3
36
37
38
2
35
1
Legend
1 Igniter unit retaining bracket
2 Igniter unit
3 Igniterunitretainingscrew
4 Igniter unit electrical connector
5 Electrode / igniter unit connection cable
6 Earth cable
7 Spark electrode cap
8 Sparkelectroderetainingscrew
9 Spark electrode gasket
10 Spark electrode
11 Combustion burner door assembly
12 Combustion burner door assembly - nut
13 Combustion burner door assembly - seal
14 Burner gasket
15 Burner
16 Burnerretainingscrew
17 Heatexchangerretainingscrew
18 Heat exchanger retaining bracket
19 Burnergateretainingscrew
20 Thermal fuse connection
21 Heat exchanger
22 Heat exchanger retaining bracket
23 Heatexchangerretainingscrew
24 Heating return pipe
25 Heating return pipe retaining clip
26 Return heating temperature sensor
27 Heatingowpipe
28 Flowheatingtemperaturesensor
29 Heatingowpiperetainingclip
30 Gasvalveretainingscrew
31 Gas valve
32 Gas valve gasket
33 Fan
34 Fan electrical connection
35 Fan/burner gasket
36 Gas pipe
37 Gas valve electrical connection
38 Fanretainingscrew
MAINTENANCE
- 42 -

Glow-worm Easicom 28 Specifications

General

Type	Combi Boiler
Output	28 kW
Energy Efficiency Rating	A
Mounting	Wall Mounted
Central Heating Output	24 kW
Domestic Hot Water Output	28 kW
Fuel Type	Natural Gas
Central Heating Max Pressure	3 bar
