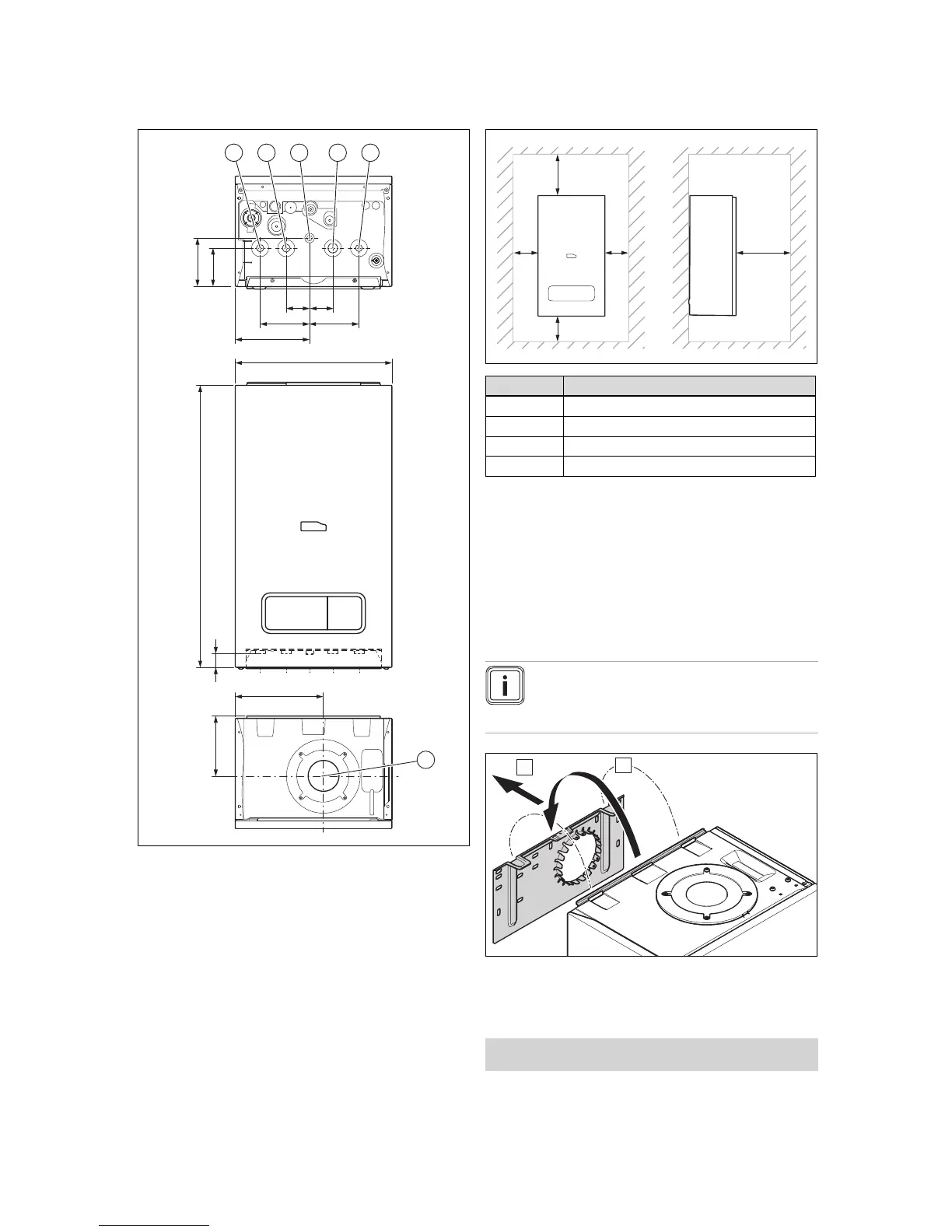

4.4 Dimensions
96
121
34
123
185
390
123
58 58
170
702
150
1 2 3 4 5
6
1 Heating flow
2 Hot water connection
3 Gas connection
4 Cold water connection
5 Heating return
6 Flue pipe connection
4.5 Minimum clearances
CC
A
B
D
Minimum clearance
A 150 mm
B 150 mm
C 5 mm
D 600 mm
4.6 Clearance from combustible components
It is not necessary to maintain a clearance between the
product and components made of combustible materials.
4.7 Using the installation template
▶ Use the installation template to ascertain the locations at
which you need to drill holes and make breakthroughs.
4.8 Wall-mounting the product
Note
If you are using the rear air/flue gas connection,
install the flue pipe before you wall-mount the
product.
B
A
1. Check whether the wall has sufficient load-bearing ca-
pacity to bear the operational weight of the product.
2. Check if the supplied fixing material may be used for
the wall.
Conditions: The load-bearing capacity of the wall is sufficient, The fixing
material may be used for the wall
▶ Wall-mount the product as described.
