4-15
OPERATOR MAINTENANCE
Note: Long Duration battery pack is fitted with a
protective cap.
2. Pull the battery pack down from the instrument to
disconnect, as shown in Fig. 4.11.
HEX KEY
BATTERY PACK

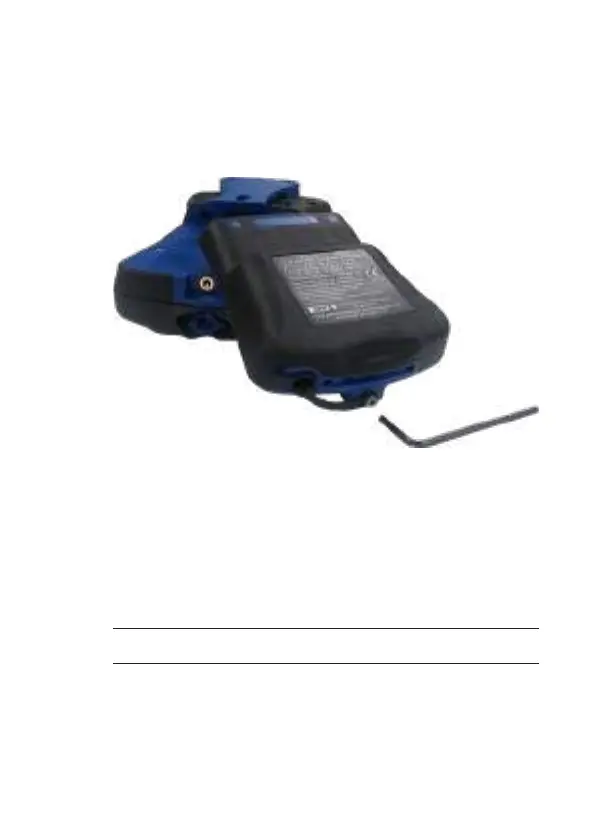

Fig. 4.11 Battery Pack Removed
3. Alkaline Only: Replace alkaline batteries, see “4.3.3
Replacing Alkaline Batteries” on page 4-16.
4. Replace battery pack on instrument. Make sure it is
correctly aligned then push connector together.
5. Tighten the captive screw.
Note: Do not over-tighten the screw.
6. Fit the protective cap in the Long Duration battery pack
charging socket before use.
