Riduttori
35
GSM_mod.MT01 IGBD 0.0
RX
Series
Industrial
8. LUBRICATION 8. SCHMIERUNG8. LUBRIFICAZIONE

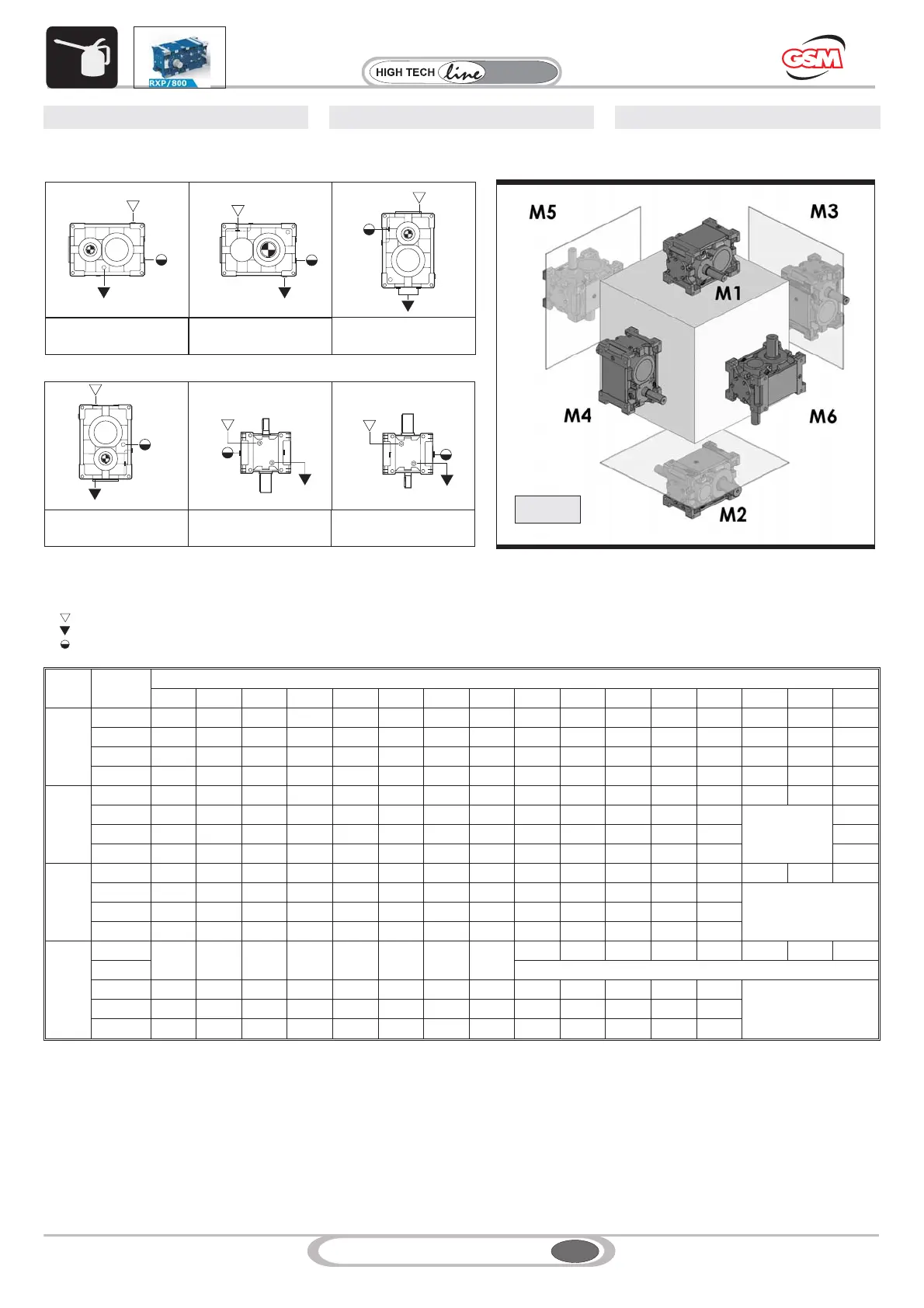

8.3 Mounting positions RXP 8008.3 Posizioni di montaggio RXP 800
8.3 Einbaulagen RXP 800
Carico / Filler plug/ Einfüllschraube
Scarico / Drain plug / Ablassschraube
Livello / Level plug / Füllstandanzeige
N.B. schema rappresentativo anche per 2 ,3 e 4 stadi
NOTE Diagram applies to 2 3 and 4 reduction units as well
HINWEIS: Schema auch für 2 ,3 und 4 Stufen gültig
L’esecuzione grafica rappresentata è la A.
Per le altre esecuzioni grafiche vedere sezione POSIZIONI MONTAGGIO.
The shown version is A.
To see further alternatives please refer to section MOUNTING POSITIONS.
Die graphisch dargestellte Version ist A.
Für die anderen Versionen siehe EINBAULAGEN.
Le quantità di olio sono approssimative; per
una corretta lubrificazione occorre fare
riferimento al livello segnato sul riduttore.
Bei den Ölmengenangaben handelt es sich
um annähernde Werte. Für den Erhalt einer
korrekten Schmierung muss Bezug auf den
am Getriebe gekennzeichneten Füllstand
genommen werden.
Oil quantities specified in the table are
approximate; to ensure correct lubrication,
please refer to the level mark on the gear
unit.
Quantità di lubrificante / Lubricant Quantity / Schmiermittelmenge (l)
802 804 806 808 810 812 814 816 818 820 822 824 826 828 830
832
RXP1
M1 - M2 2,5 3,5 4,9 6,9 9,6 13,0 19,0 26,0 37,0 52,0 72,0 100,0 ————
M3 3,8 5,3 7,5 11,0 15,0 21,0 30,0 42,0 61,0 85,0 115,0 156,0 ————
M4 3,5 4,9 7,0 9,8 14,0 22,0 28,0 40,0 56,0 78,0 111,0 152,0 ————
M5 - M6 3,6 5,0 7,1 10,0 14,0 20,0 29,0 40,0 57,0 79,0 110,0 151,0 ————
RXP2
M1 - M2 3,3 4,7 6,5 9,0 13,0 18,0 25,0 35,0 49,0 69,0 113,0 158,0 221,0 265,0 370,0 —
M3 6,1 8,6 12,0 17,0 24,0 34,0 48,0 68,0 95,0 133,0 201,0 285,0 400,0
a richiesta
—
M4 5,1 7,2 10,0 15,0 20,0 29,0 40,0 56,0 80,0 114,0 156,0 218,0 306,0 —
M5 - M6 4,6 6,5 9,4 13,0 18,0 25,0 35,0 50,0 70,0 99,0 139,0 196,0 275,0 —
RXP3
M1 - M2 3,9 5,5 7,6 11,0 15,0 21,0 29,0 41,0 58,0 81,0 113,0 158,0 221,0 310,0 433,0 605,0
M3 8,1 11,0 15,0 22,0 32,0 44,0 62,0 87,0 125,0 175,0 246,0 345,0 485,0
a richiesta
M4 6,6 9,2 13,0 18,0 26,0 36,0 50,0 71,0 102,0 144,0 201,0 285,0 400,0
M5 - M6 5,1 7,3 10,0 14,0 20,0 28,0 40,0 56,0 79,0 111,0 156,0 218,0 306,0
RXP4
M1
4,9 6,4 9,5 12,8 18,8 24,4 36,3 47,6
58,0 81,0 113,0 158,0 221,0 310,0 433,0 605,0
M2
a richiesta
M3 10,1 12,8 18,8 25,5 40,0 51,0 77,5 100,9
125,0 175,0 246,0 345,0 485,0
a richiesta
M4 8,3 10,7 16,3 20,9 32,5 41,8 62,5 82,4 102,0 144,0 201,0 285,0 400,0
M5-M6 7,1 9,5 14,0 18,2 28,0 36,4 56,0 72,8 79,0 111,0 156,0 218,0 306,0
M1 M2
M3
M4
M5
M6
A
