8. Installation
1.
Mount the go-e Charger approx. 1.00 to 1.45
meters above the ground, depending on your
personal feeling of well-being. When determin-
ing the optimum installation position, ensure
that there is a proper distance to the three-pha-
se socket so that the CEE plug of the charging
station can be plugged in easily. The go-e Char-
ger has to be mounted exactly below the CEE
socket so that little pressure is exerted on the
supply line.
Place the wall bracket in the desired mounting
position. Use a spirit level to align it straight.
Mark the four drill holes with a pencil by using
the wall bracket as a template.

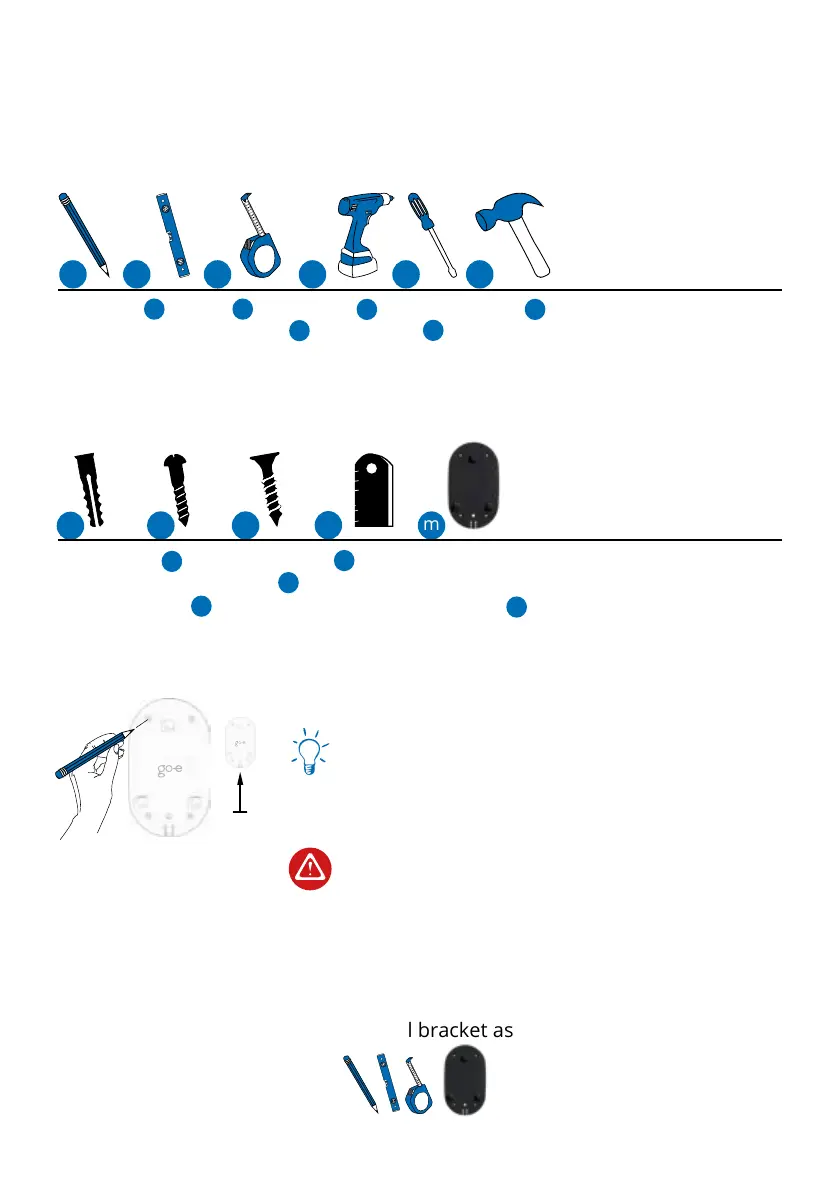

Required tools
4X
1 M - 1.45 M
b
b
i
i
j
j
k
k
l
l
m
m
bPencil Spirit level Measuring tape Drilling machine
Screwdriver Hammer
Dowel 8 x 40 mm Screws for wall bracket 4.5 x 50 mm
Screw for U-piece 4 x 50 mm
U-piece (optional anti-theft device) Wall bracket
Enclosed mounting material
