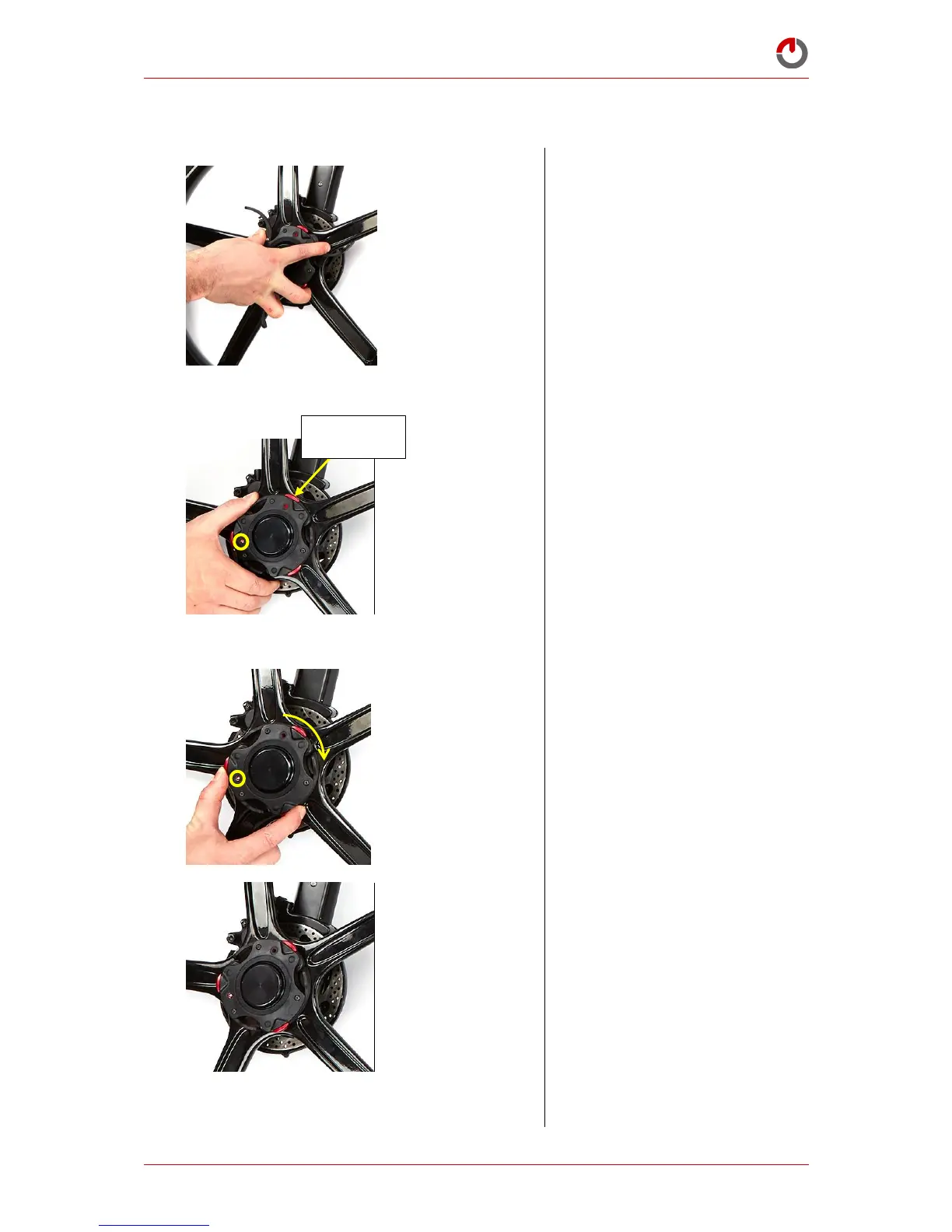

4.3 Fitting the PitstopWheel with the Hexlock™ to the Gocycle
While holding all three quick
release cam levers open, fit
the Pitstopwheel to the hub.
Close all three Pitstopwheel
quick release levers as shown.
Note that the Hexlock™ is in
the un-locked position.
Rotate the Hexlock™
clockwise to the locked
position as shown.
This image shows the
Pitstopwheel fitted with all
three quick release levers
closed and the Hexlock™ in
the locked position. In this
configuration as shown, the
Pitstopwheel is ready to ride.
Hexlock™
