Gocycle
®
Owner’s Manual for G3, March 2016
© Karbon Kinetics Limited. All Rights Reserved. 74

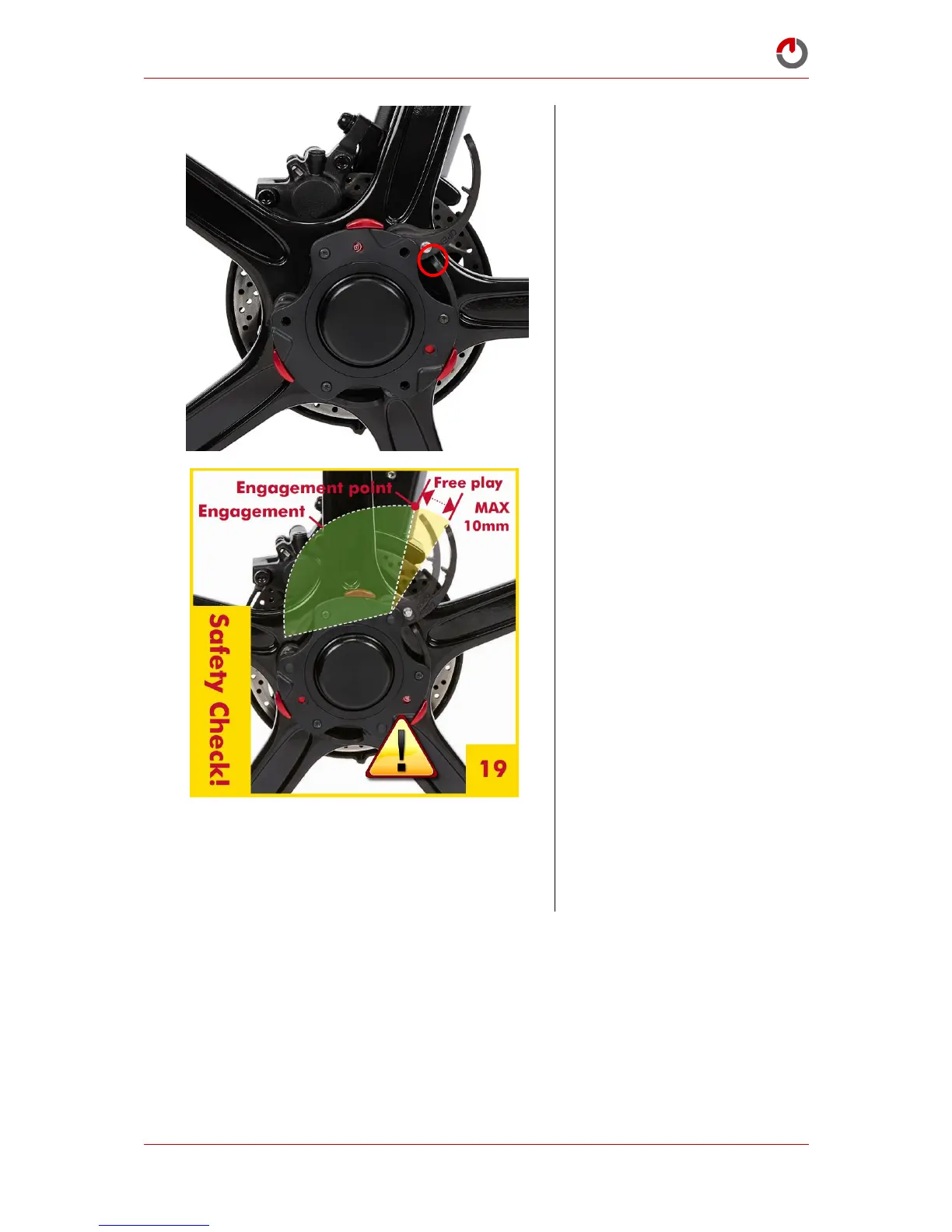

3. Keep 2 cam levers in the
closed position and open
one cam lever fully so that
the back edge touches the
next closed cam lever.
4. Lightly move the cam
lever back and forth to
gauge the extent of the free
play.
Free play is defined as the
portion of movement where
there no noticeable pressure
required to move the cam
lever before it engages with
the hub. It is measured at
the tip of the cam lever.
5. If the free play exceeds
10mm at the tip of the cam
lever, use the 4mm Allen
key to reduce this.
