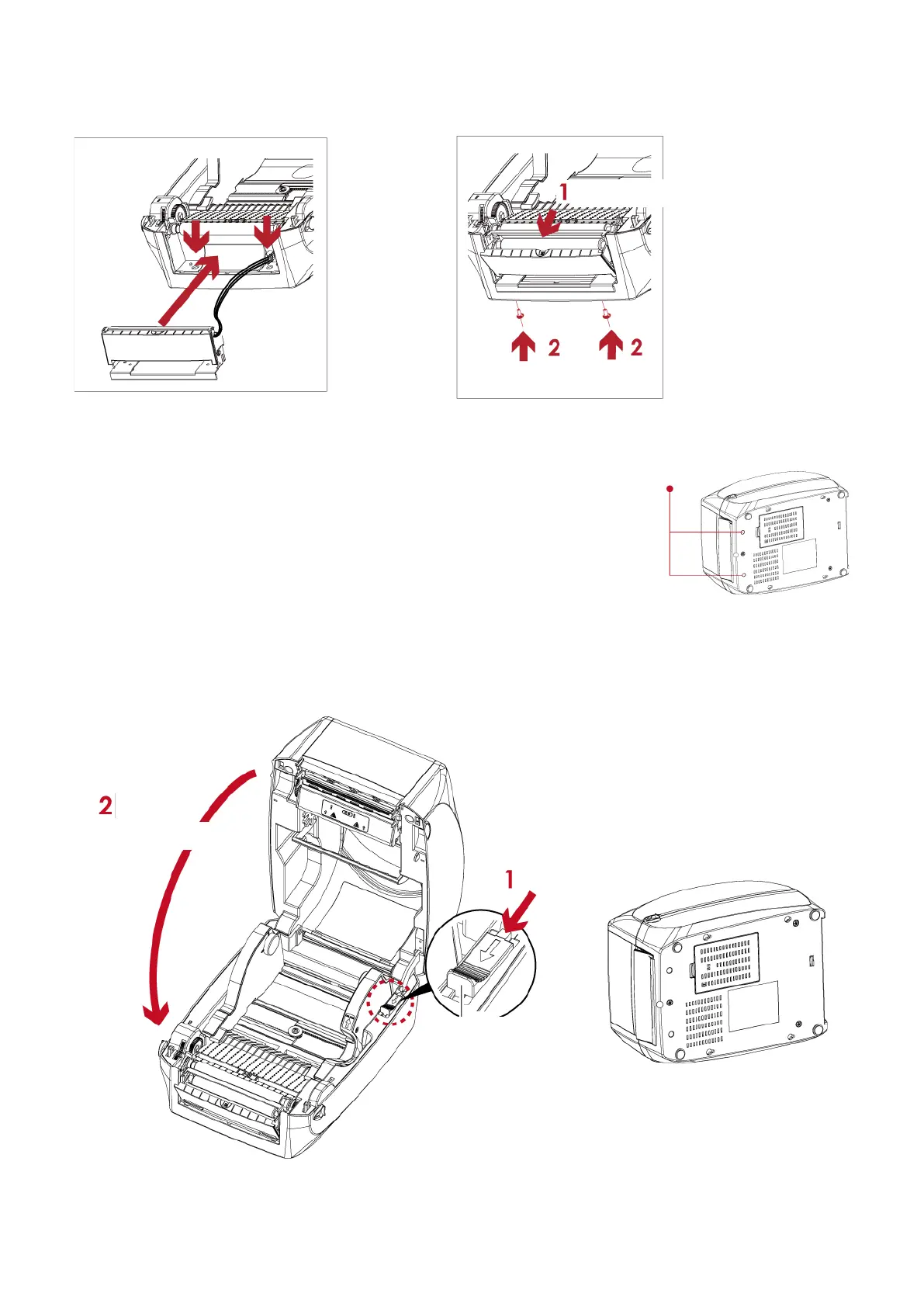

3. Place label dispenser to align both holes of screw.
4. Open the cover of the label dispenser, and then tighten the screws.
5. Close the printer cover and printing mechanism.
Then to turn the printer upside down.
Open the cover
Tighten the screws
Screw Hole
Close the printer cover
Push
Push
Release catch for closing
the printer cover
